Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

17 part groups · 3 illustrations

Illustrations

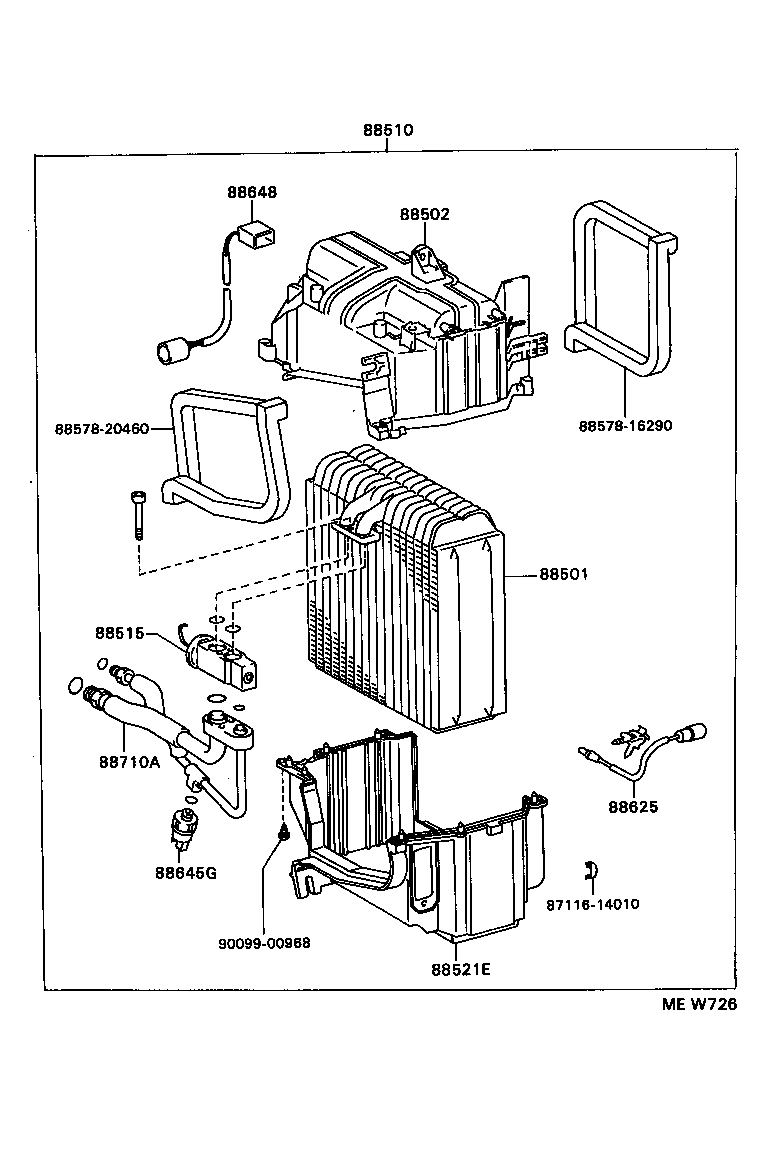

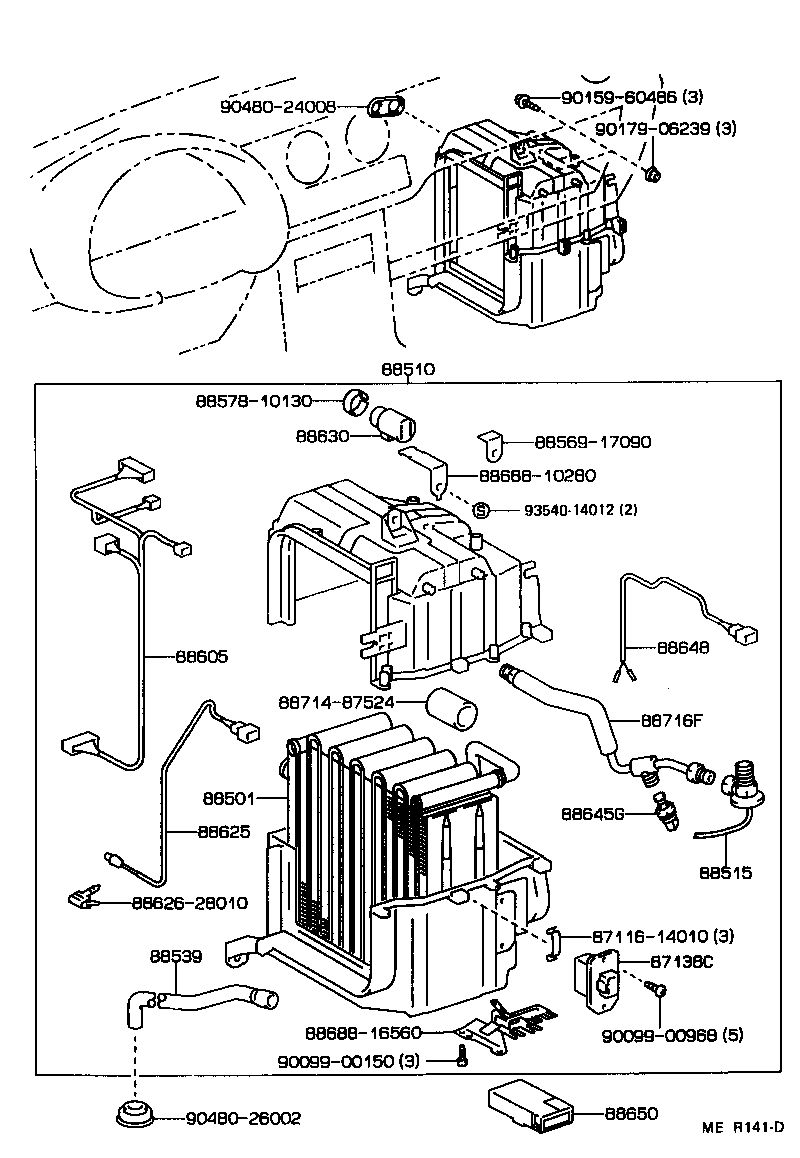

Figure MES316C MES316C 1990-09 → — Figure MEW726 MEW726 1990-09 → — Figure MER141D MER141D 1990-09 → 1992-08

Part groups

PNCDescription
82600H Fuse, Fuse Block
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88521E Case Sub-assy, Cooling Unit
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
88716F Pipe, Cooler Refrigerant Liquid, F
88891 Packing (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
