Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 9 illustrations

Illustrations

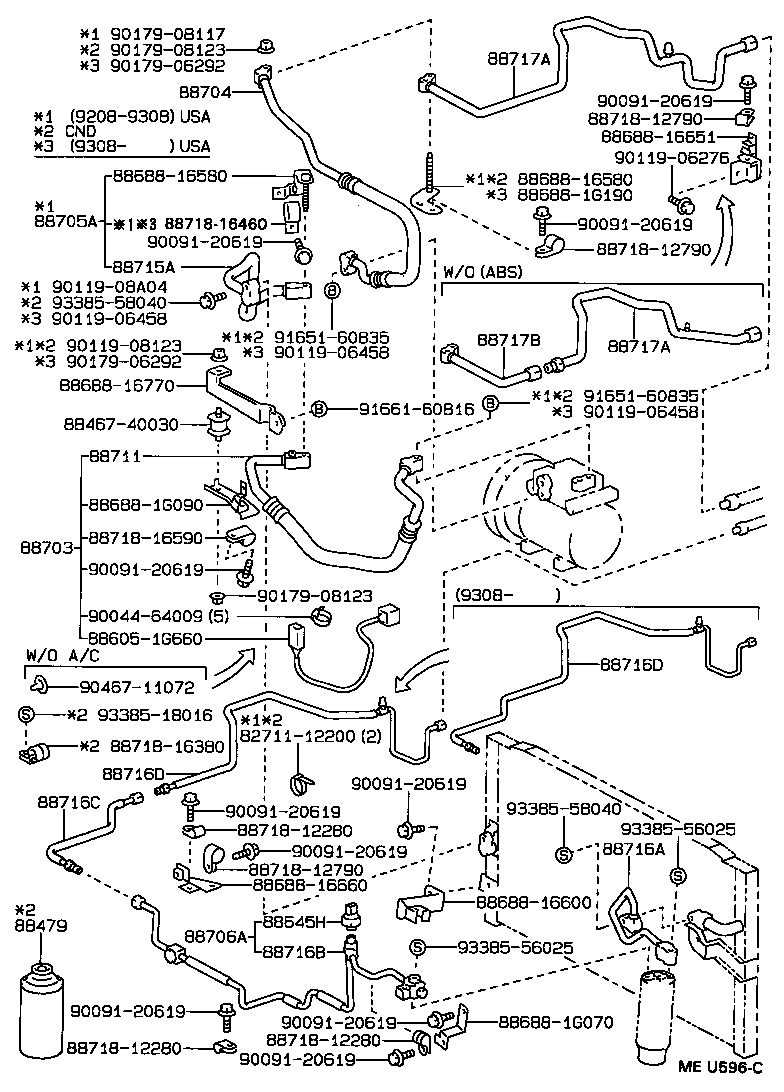

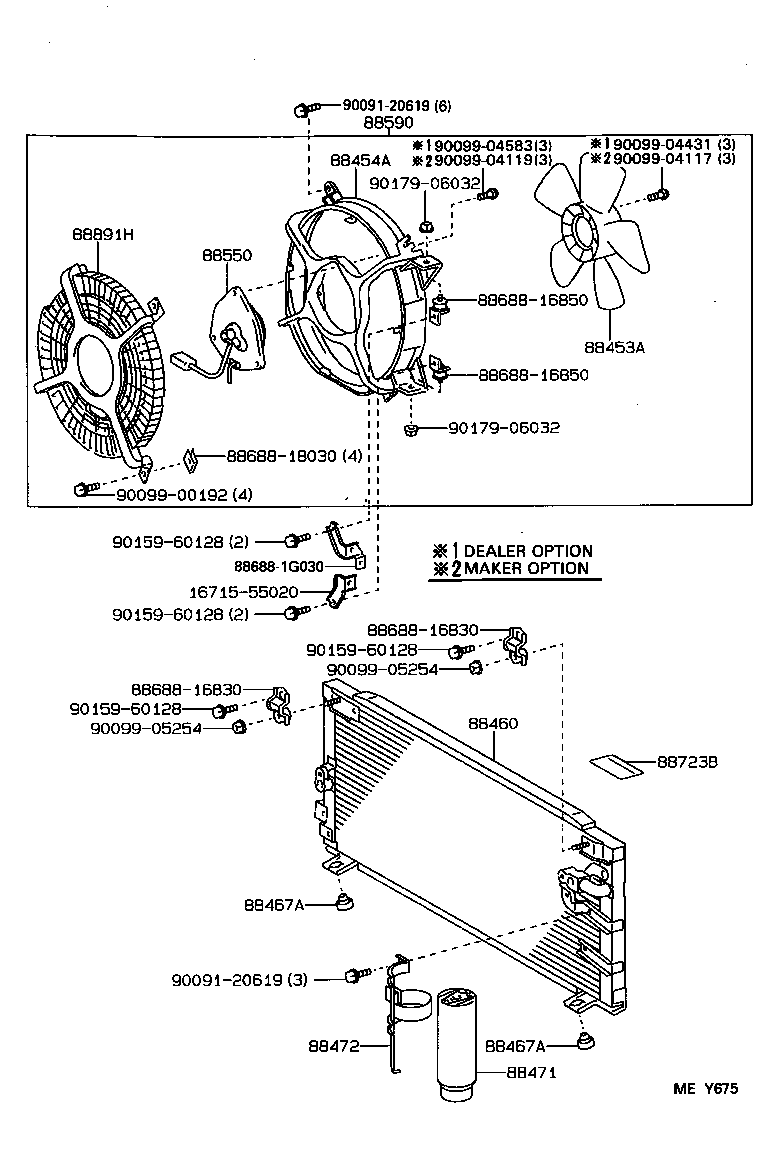

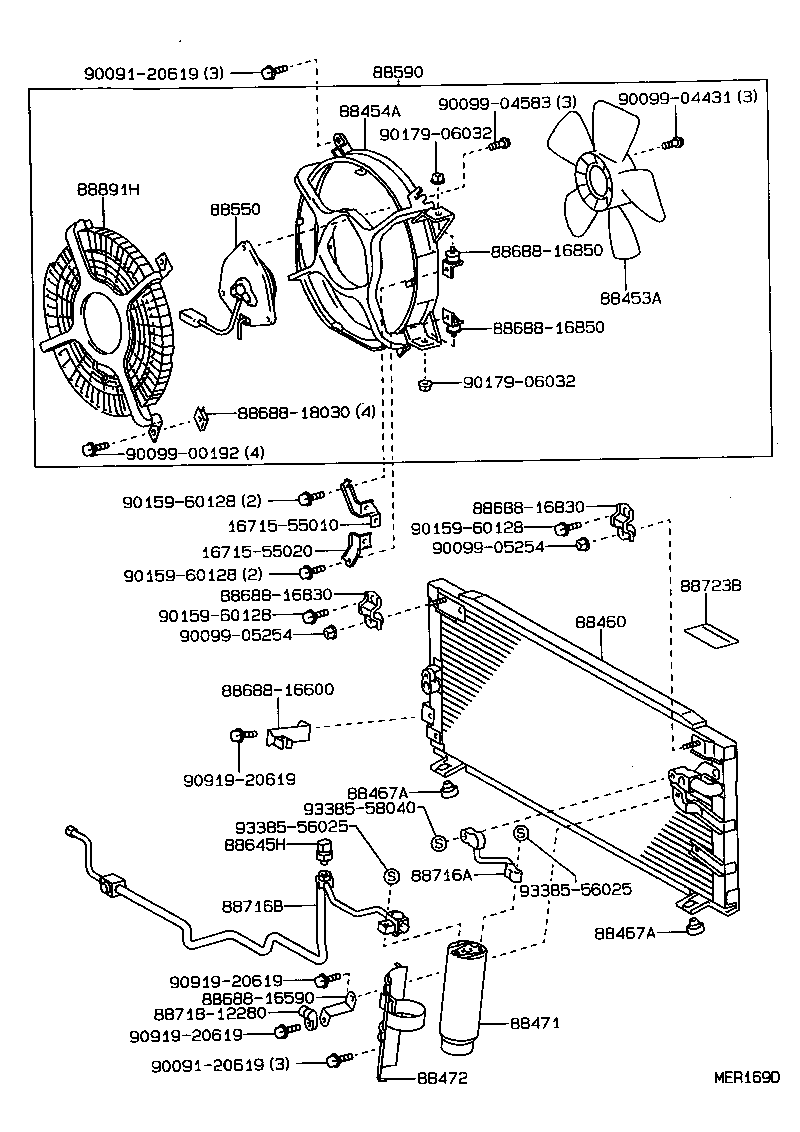

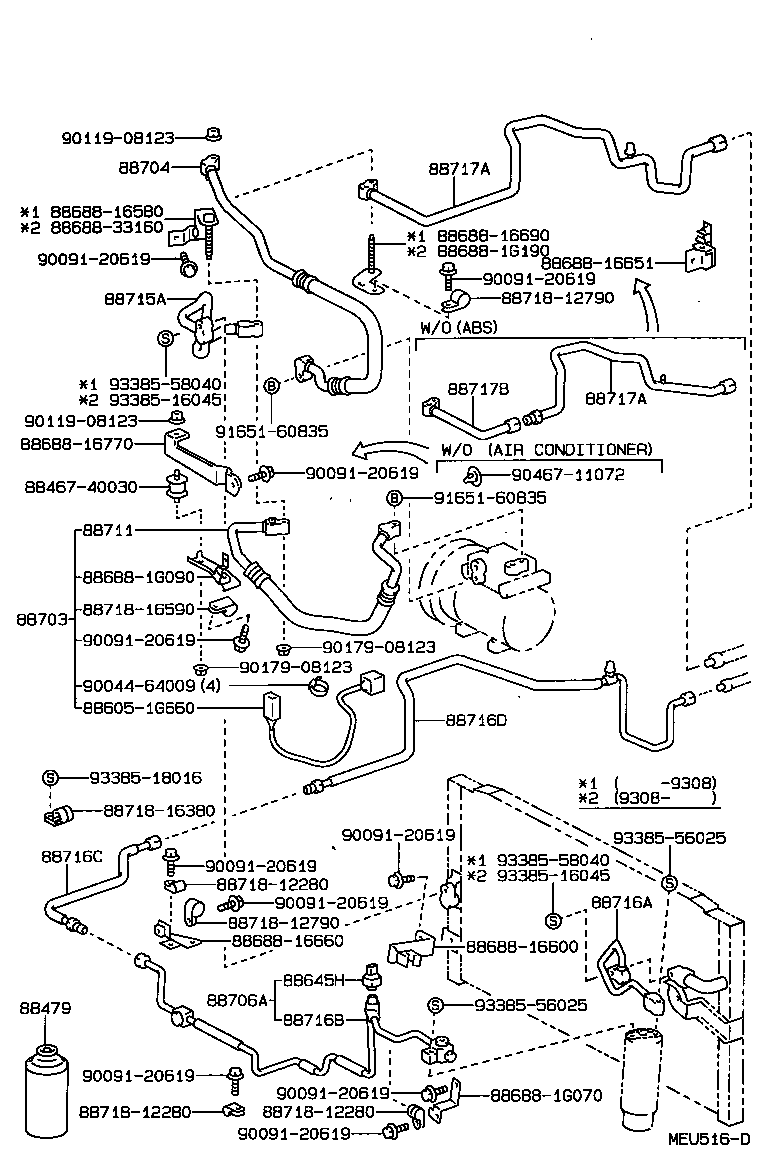

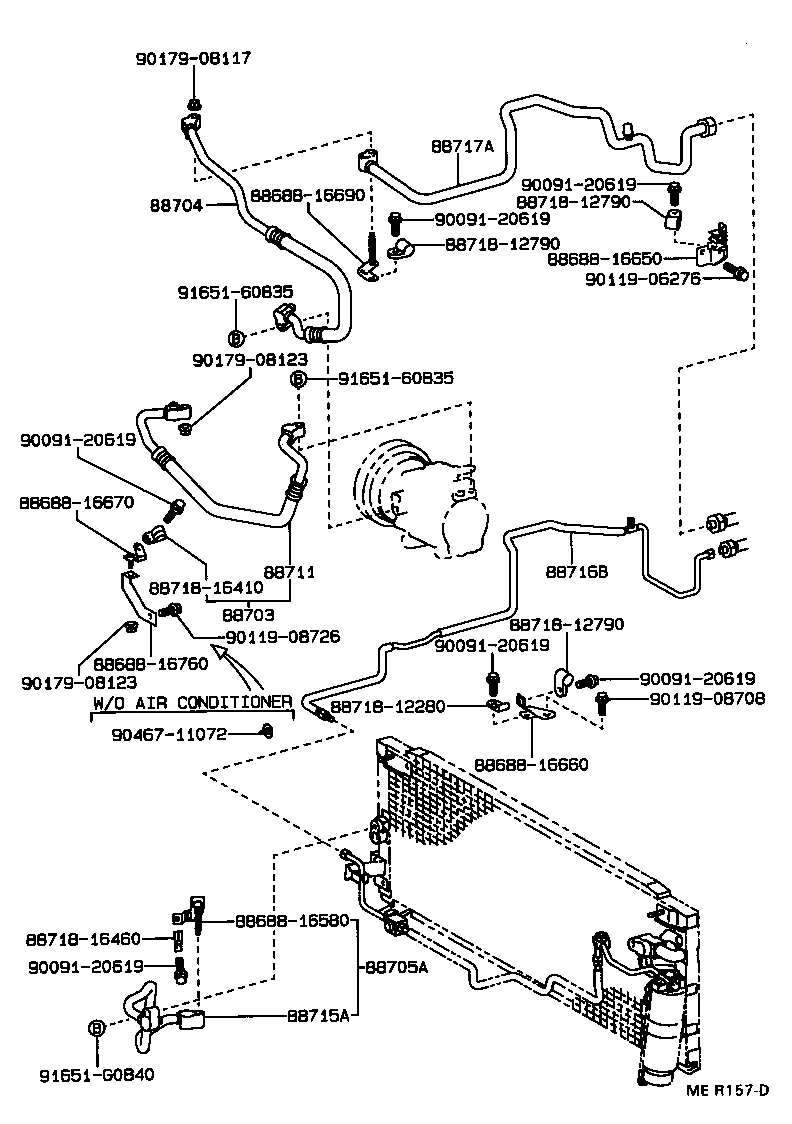

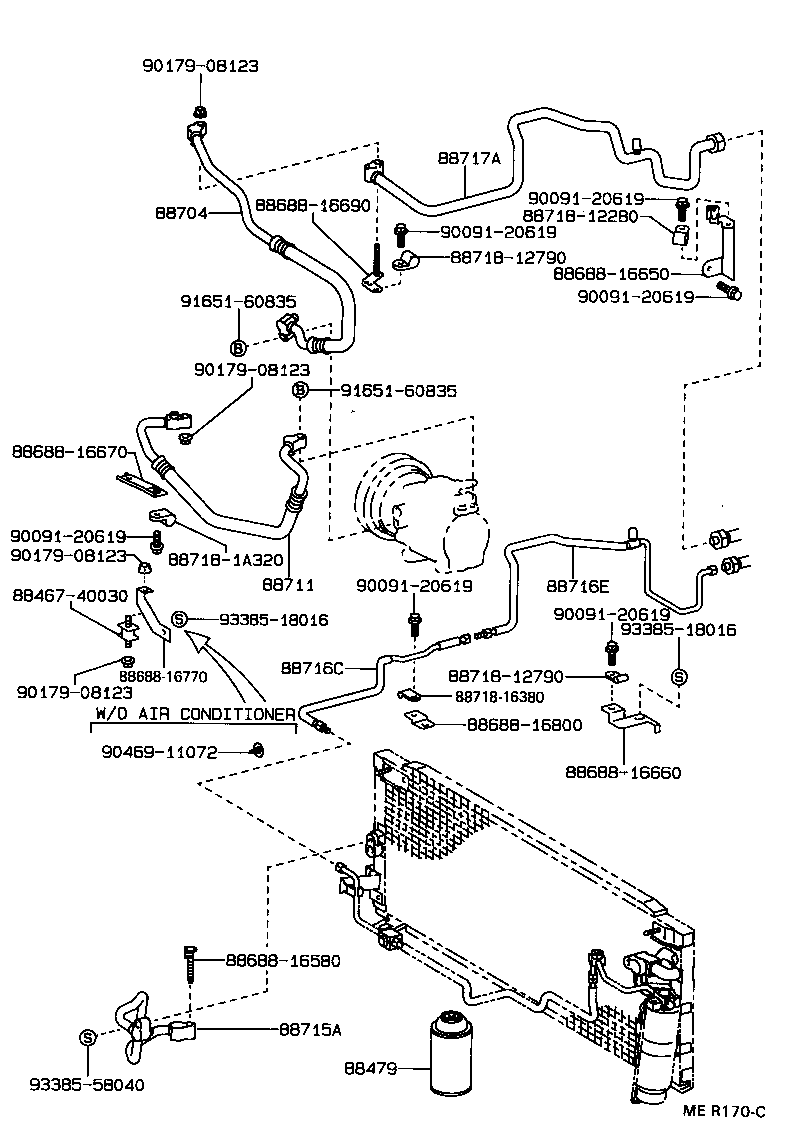

Figure MER156D MER156D 1990-09 → 1992-08 Figure MER169D MER169D 1990-09 → 1992-08 Figure MEY675 MEY675 1992-08 → — Figure MER157D MER157D 1990-09 → 1992-08 Figure MEU596C MEU596C 1992-08 → 1992-12 Figure MEU596C MEU596C 1992-08 → — Figure MER170C MER170C 1990-09 → 1992-08 Figure MEU516D MEU516D 1992-08 → — Figure MEU516D MEU516D 1993-08 → —

Part groups

PNCDescription
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467A Cushion, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88711 Hose, Cooler Refrigerant Discharge, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88723B Label, Cooler Service Caution
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
