Toyota Tercel
1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe
Discontinued model
Data version 1995-02

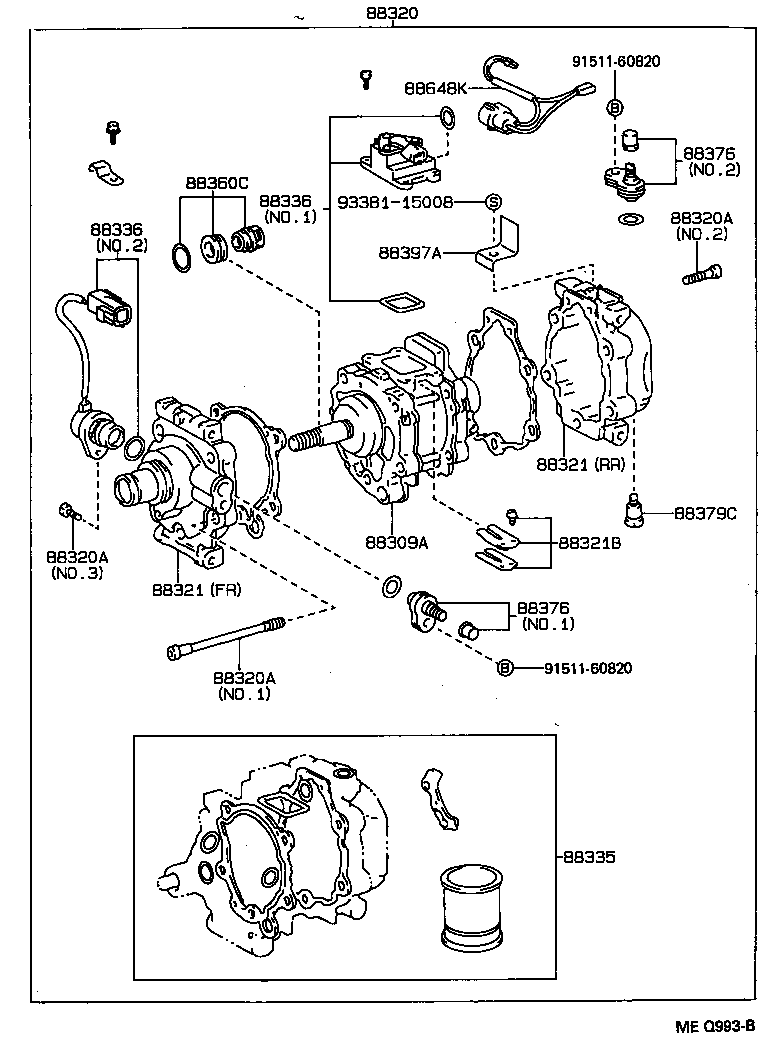

Heating & Air Conditioning - Compressor
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88309A | Pump Sub-assy, Compressor |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321B | Reed Sub-assy, Valve |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88336 | Sensor, Compressor |
| 88360C | Seal Assy, Shaft |
| 88376 | Cap, Blind |
| 88379C | Valve, Pressure Relief |
| 88397A | Clip, Compressor |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88444 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
| 88648K | Wire Sub-assy, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
