Toyota Tercel
1994-09 → 1999-07 · chassis EL53 · catalogue 141450 · Europe
Discontinued model
Data version 2000-02

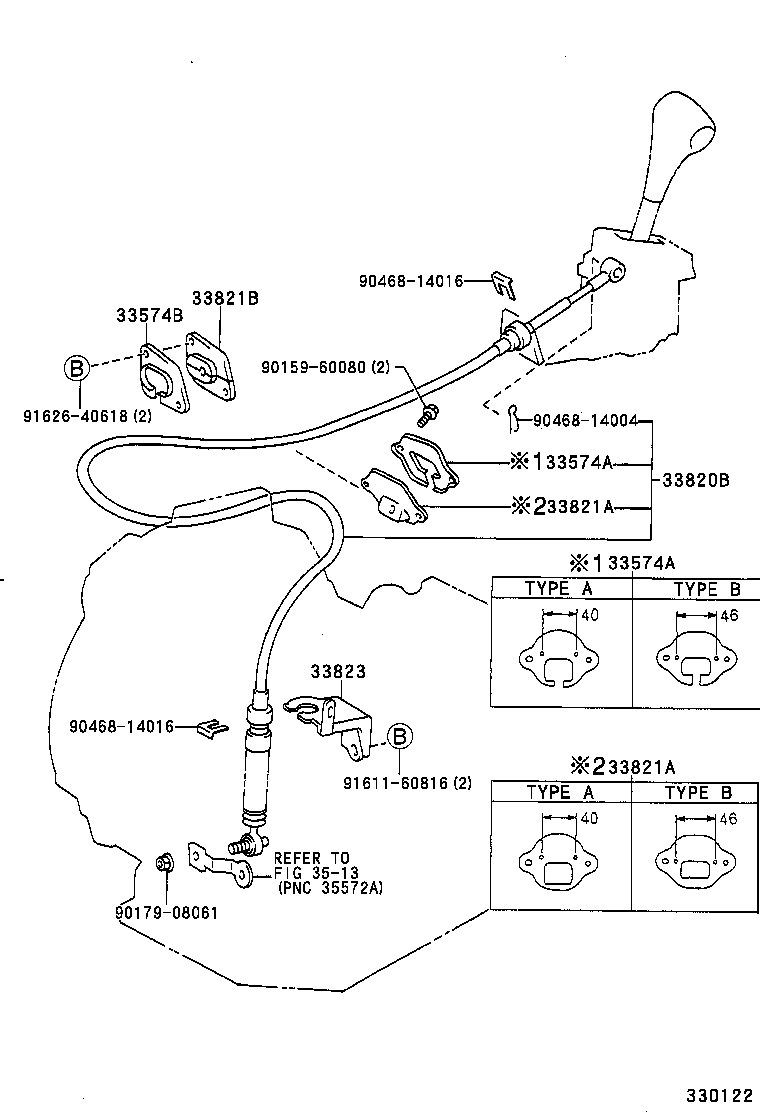

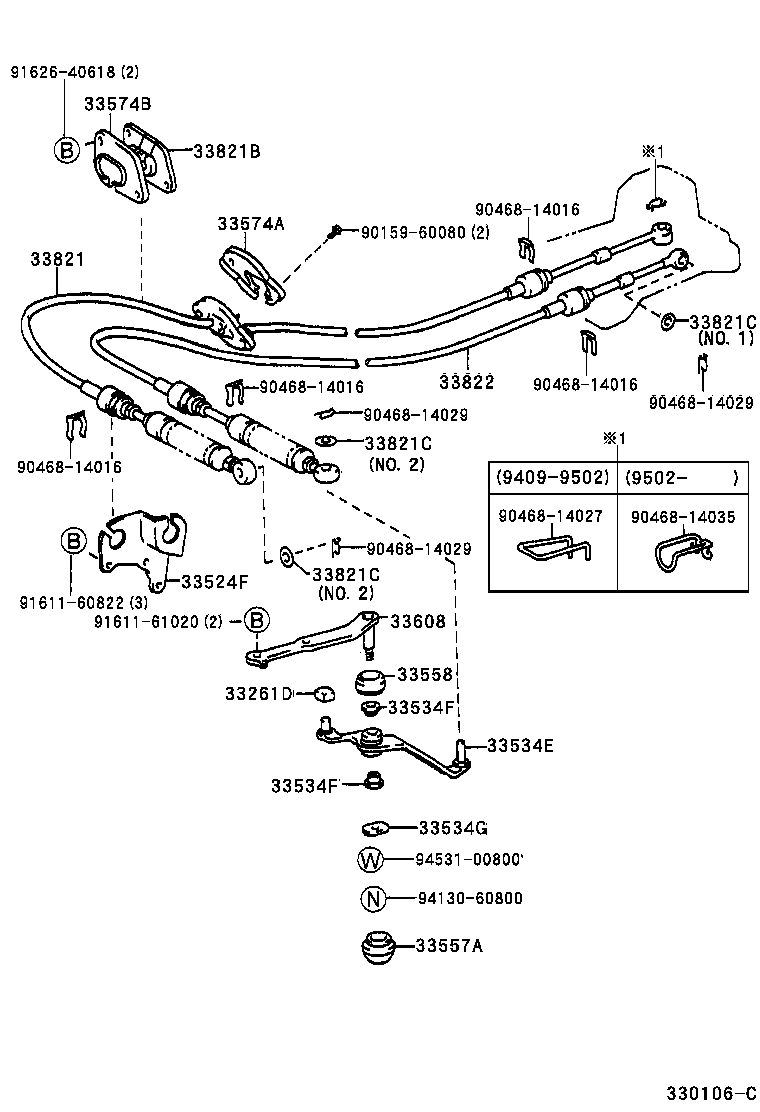

Shift Lever & Retainer
37 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33058 | Bracket Sub-assy, Shift Lock Solenoid |
| 33261D | Bush (FOR SHIFT & SELECT LEVER) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33504G | Spring, Compression (FOR SHIFT LEVER KNOB) |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33534E | Crank, Selecting Bell, NO.2 |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33550 | Floor Shift Assy, Transmission |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33554C | Cover, Shift Lock Release Button |
| 33557A | Cover, Selecting Bellcrank Dust, NO.1 |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |
| 33574A | Retainer, Shift Cable Grommet, NO.1 |
| 33574B | Retainer, Shift Cable Grommet, NO.2 |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33622 | Cover, Shift Lever Knob, NO.1 |
| 33623 | Button, Shift Lever Knob |
| 33626 | Stopper, Shift Lever Button |
| 33820B | Cable Assy, Transmission Control |
| 33821 | Cable Transmission Control Shift (FOR FLOOR SHIFT) |
| 33821A | Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821B | Grommet, NO.2 (FOR TRANSMISSION CONTROL CABLE) |
| 33821C | Washer, Plate (FOR TRANSMISSION CONTROL CABLE) |
| 33822 | Cable Transmission Control Select (FOR FLOOR SHIFT) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35961 | Housing, Position Indicator Lamp |
| 35971A | Housing, Position Indicator, Upper |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976B | Cover, Shift Lever Knob (FOR FLOOR SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
