Toyota Tercel

1994-09 → 1999-07 · chassis EL53 · catalogue 141450 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

24 part groups · 3 illustrations

Illustrations

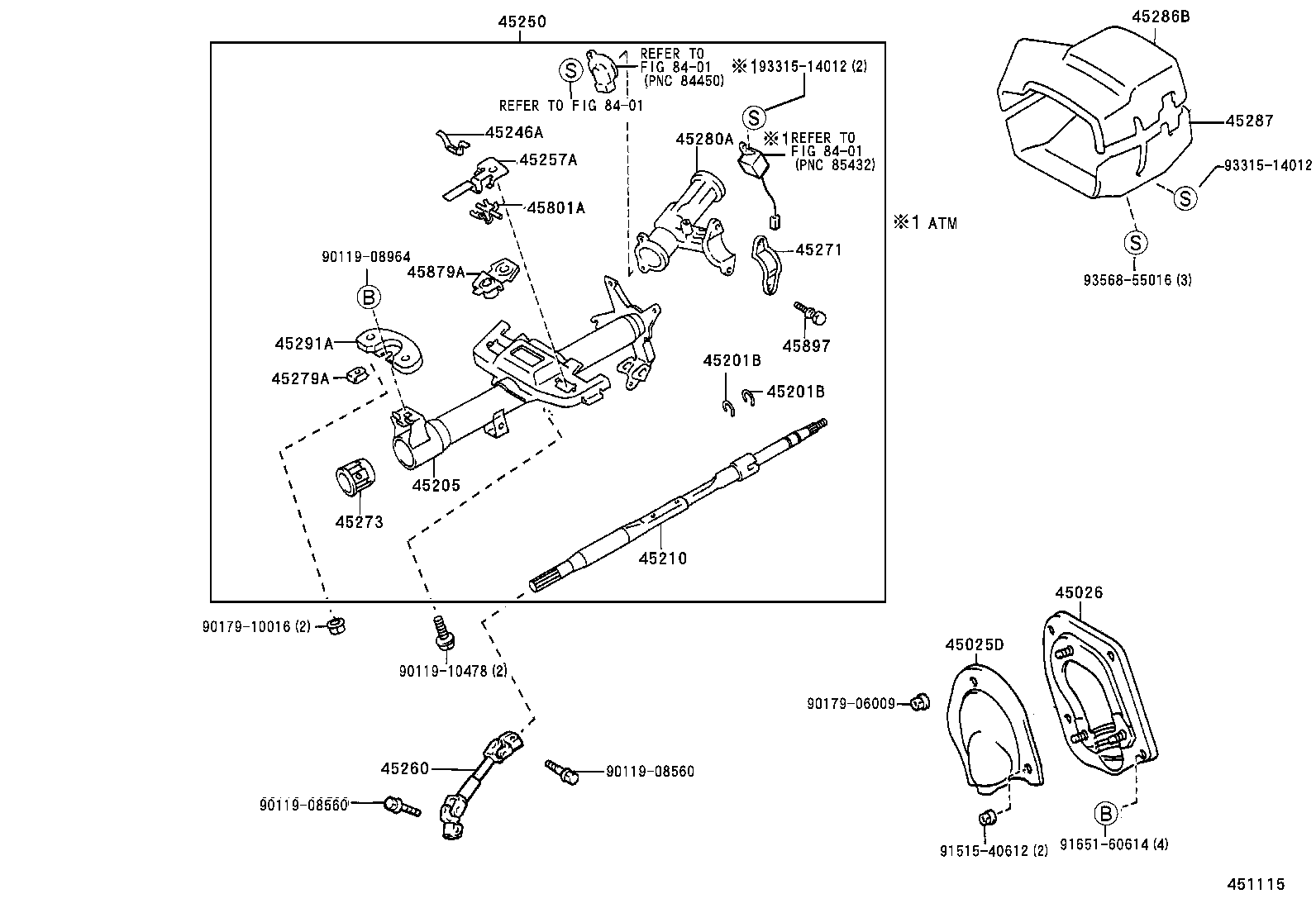

Figure MCR967B MCR967B 1994-09 → 1997-12 Figure 451120 451120 1997-12 → — Figure 451115 451115 1997-12 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45246A Guide, Steering Energy Absorbing Plate
45250 Column Assy, Steering
45257A Plate, Steering Column Energy Absorbing
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45277A Support, Tilt Steering
45279A Attachment, Steering Column Tube, Lwr
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45291A Support, Steering Column Tube
45801A Pin Sub-assy, Steering Energy Absorbing
45813 Collar, Tilt Steering Support, NO.1
45879A Capsule, Break Away
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
