Toyota Tercel

1994-09 → 1999-07 · chassis EL53 · catalogue 141450 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

10 part groups · 2 illustrations

Illustrations

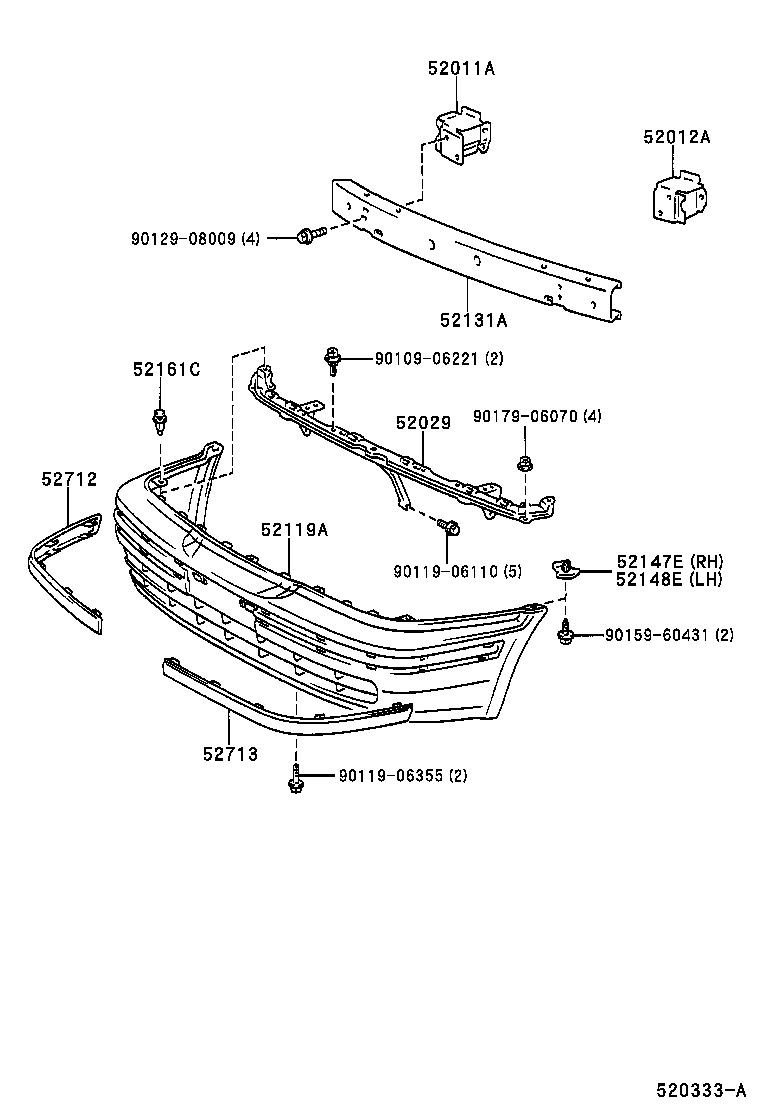

Figure 520023B 520023B 1994-09 → 1997-12 Figure 520333A 520333A 1997-12 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52029 Reinforcement Sub-assy, Front Bumper, Upper
52119A Cover, Front Bumper
52131A Reinforcement, Front Bumper
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52161C Piece, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713 Plug, Front Bumper Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
