Toyota Tercel
1994-09 → 1999-07 · chassis EL53 · catalogue 141450 · Europe
Discontinued model
Data version 2000-02

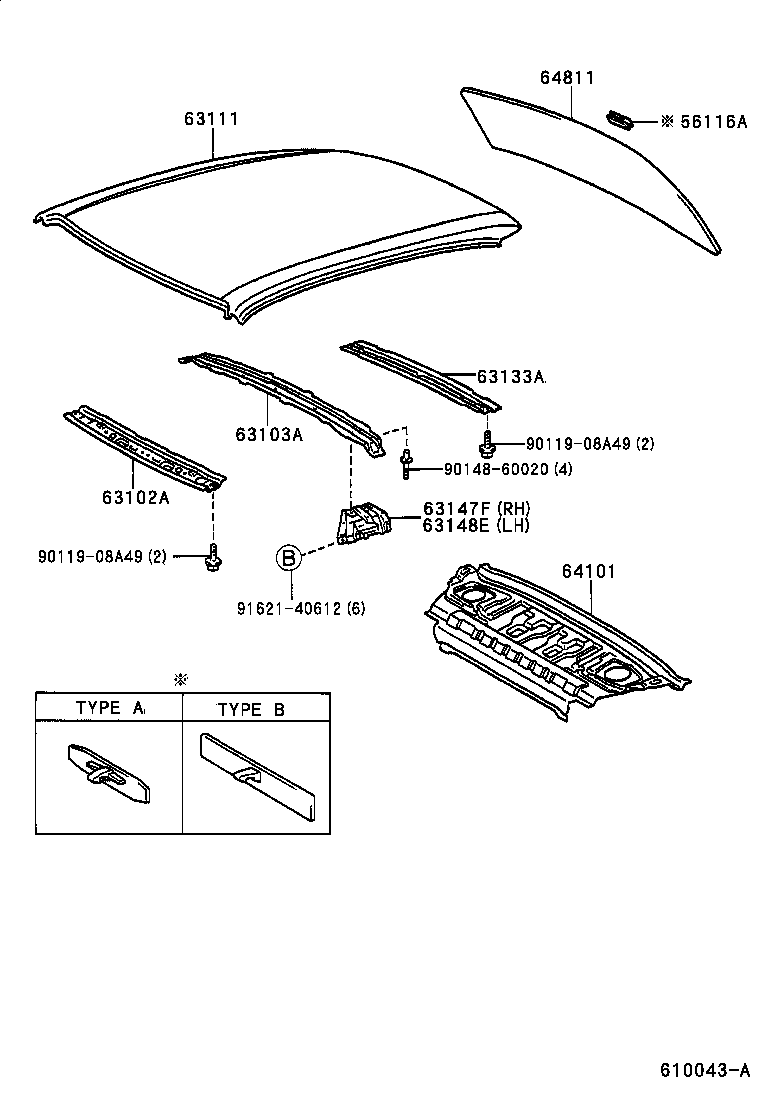

Roof Panel & Back Window Glass
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56116A | Spacer, Windshield Glass |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63111 | Panel, Roof |
| 63133A | Frame, Back Window, Upper |
| 63141H | Reinforcement, Roof Panel, Center |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 64101 | Panel Sub-assy, Upper Back |
| 64811 | Glass, Back Window |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
