Toyota Tercel

1994-09 → 1999-07 · chassis EL53 · catalogue 141450 · Europe

Discontinued model Data version 2000-02

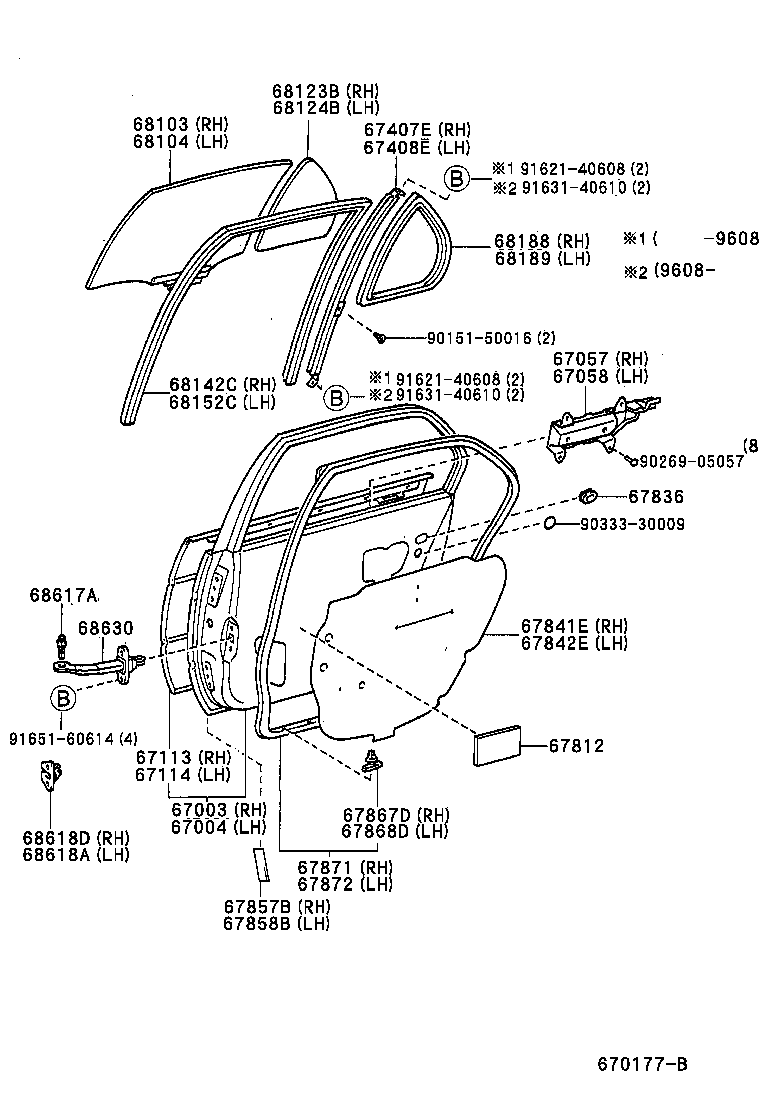

Rear Door Panel & Glass

37 part groups · 2 illustrations

PNC	Description
67003	Panel Sub-assy, Rear Door, RH
67004	Panel Sub-assy, Rear Door, LH
67057	Reinforce Sub-assy, Rear Door Inside Panel, RH
67058	Reinforce Sub-assy, Rear Door Inside Panel, LH
67113	Panel, Rear Door, Outer RH
67114	Panel, Rear Door, Outer LH
67407E	Bar Sub-assy, Rear Door Window Division, RH
67408E	Bar Sub-assy, Rear Door Window Division, LH
67603	Board Sub-assy, Rear Door Trim, RH
67603D	Retainer, Rear Door Trim, RH
67604	Board Sub-assy, Rear Door Trim, LH
67604D	Retainer, Rear Door Trim, LH
67785G	Holder, Rear Door Lock Control Knob, RH
67785H	Holder, Rear Door Lock Control Knob, LH
67812	Pad, Rear Door Silencer
67836	Cover, Rear Door Lock Child Protection, RH
67841E	Cover, Rear Door Service Hole, RH
67842E	Cover, Rear Door Service Hole, LH
67857B	Protector, Rear Door Panel, RH
67858B	Protector, Rear Door Panel, LH
67867D	Retainer, Rear Door Weatherstrip, RH
67868D	Retainer, Rear Door Weatherstrip, LH
67871	Weatherstrip, Rear Door, RH
67872	Weatherstrip, Rear Door, LH
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68123B	Glass, Rear Door Quarter Window, RH
68124B	Glass, Rear Door Quarter Window, LH
68142C	Run, Rear Door Glass, RH
68152C	Run, Rear Door Glass, LH
68188	Weatherstrip, Rear Door Quarter Window, RH
68189	Weatherstrip, Rear Door Quarter Window, LH
68190	Weatherstrip Assy, Rear Door Glass, Inner
68617A	Pin, Rear Door Check
68618A	Bracket, Rear Door Check Arm, LH
68618D	Bracket, Rear Door Check Arm, RH
68630	Check Assy, Rear Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
