Toyota Tercel

1994-09 → 1999-07 · chassis EL53 · catalogue 141450 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 2 illustrations

Illustrations

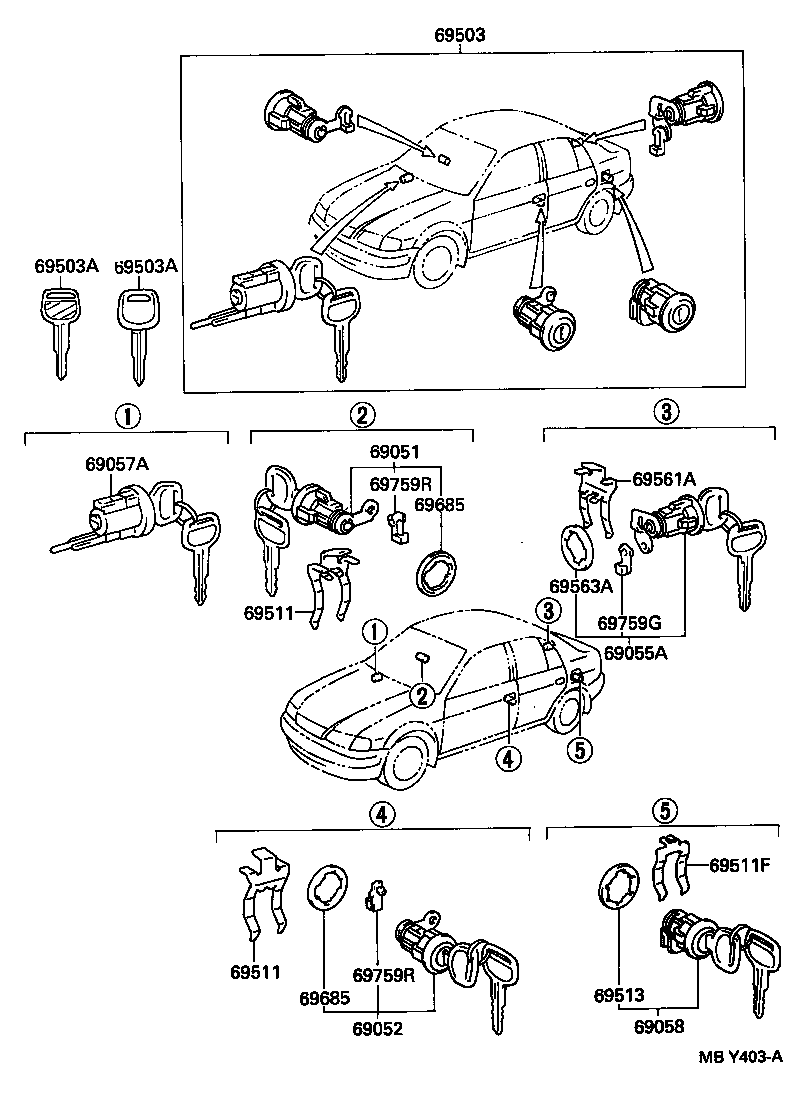

Figure MBY402A MBY402A 1994-09 → — Figure MBY403A MBY403A 1994-09 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69511F Retainer, Front Door Lock Cylinder
69513 Pad, Fuel Filler Lid Lock Cylinder
69561A Retainer, Luggage Compartment Lock Cylinder
69563A Pad, Luggage Compartment Door Lock Cylinder
69685 Pad, Lock Cylinder
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
