Toyota Tercel

1994-09 → 1999-07 · chassis EL53 · catalogue 141450 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 2 illustrations

Illustrations

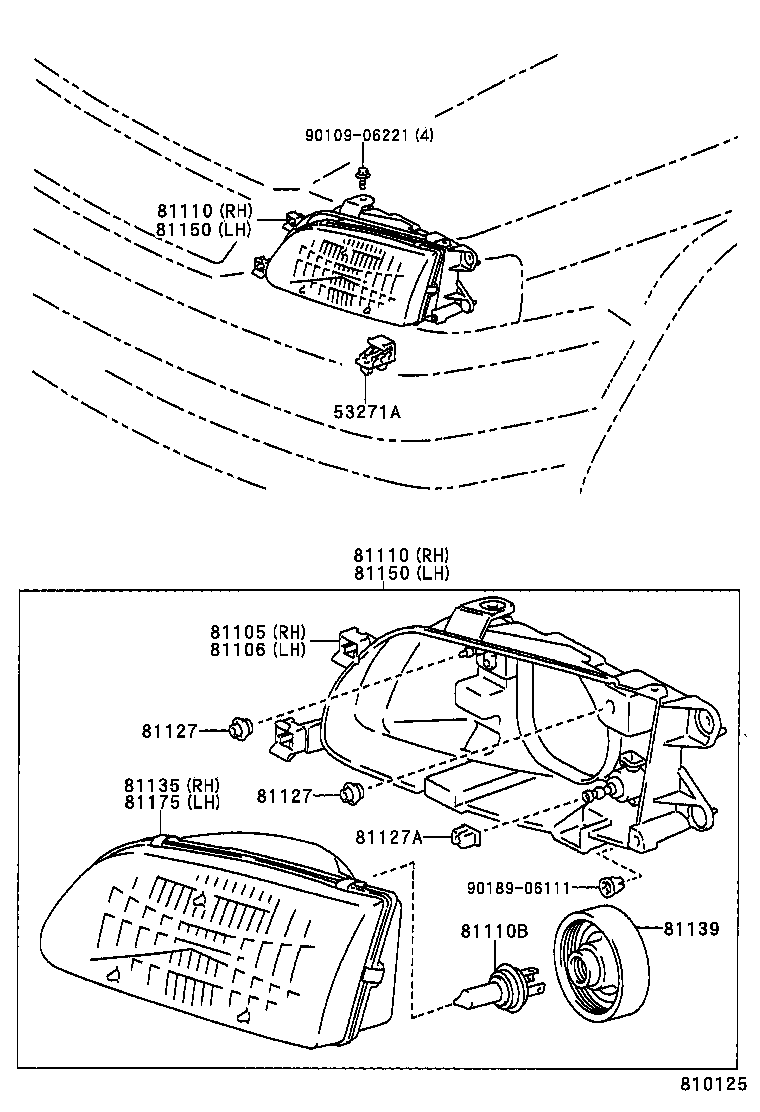

Figure MEX979 MEX979 1994-09 → 1996-08 Figure 810125 810125 1996-08 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81121 Spring, Headlamp Tension
81127 Bearing, Headlamp, NO.1
81127A Bearing, Headlamp, NO.2
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81144D Cap, Headlamp Locking
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
