Toyota Tercel

1994-09 → 1999-07 · chassis EL53 · catalogue 141450 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 10 illustrations

Illustrations

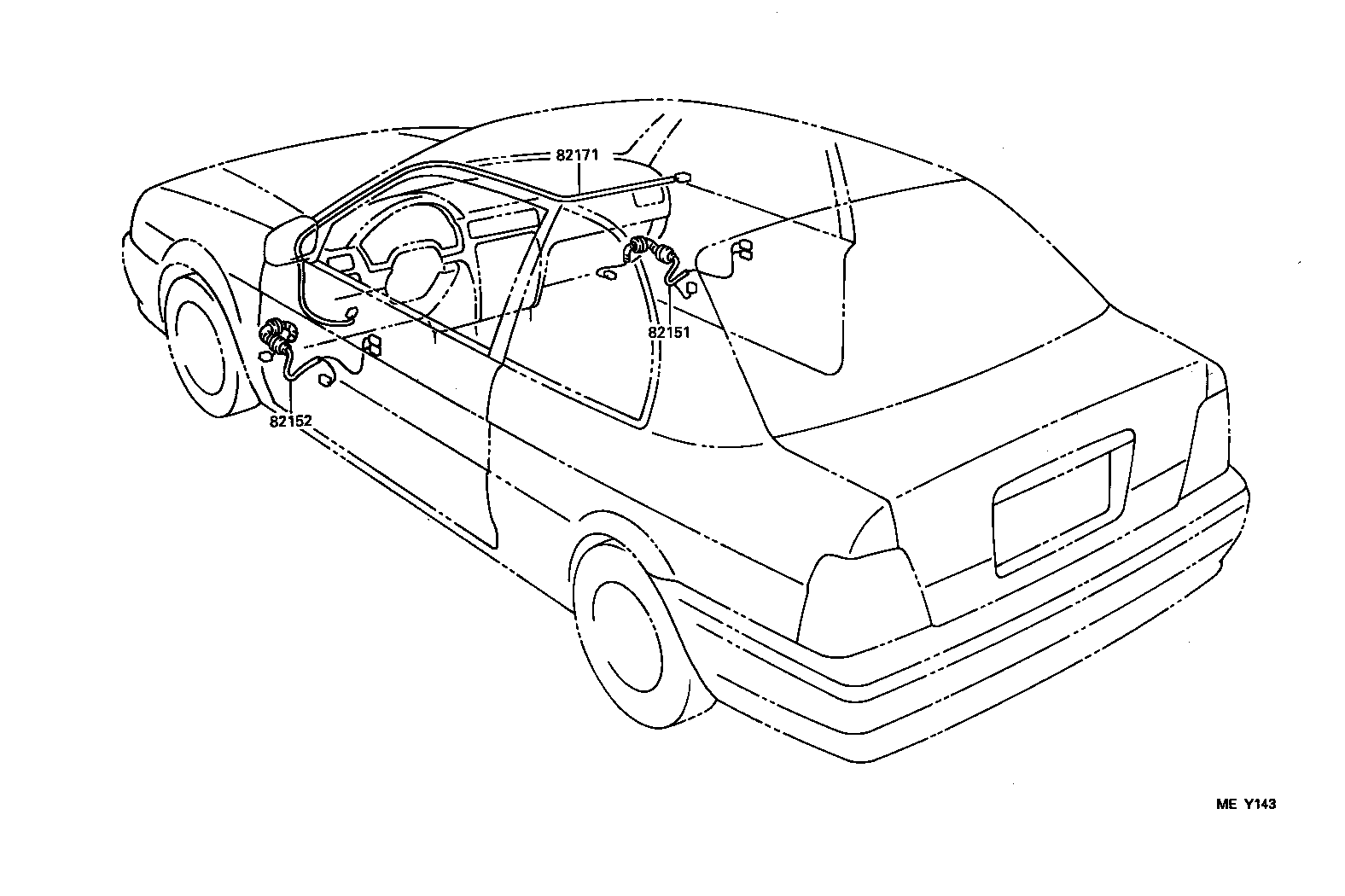

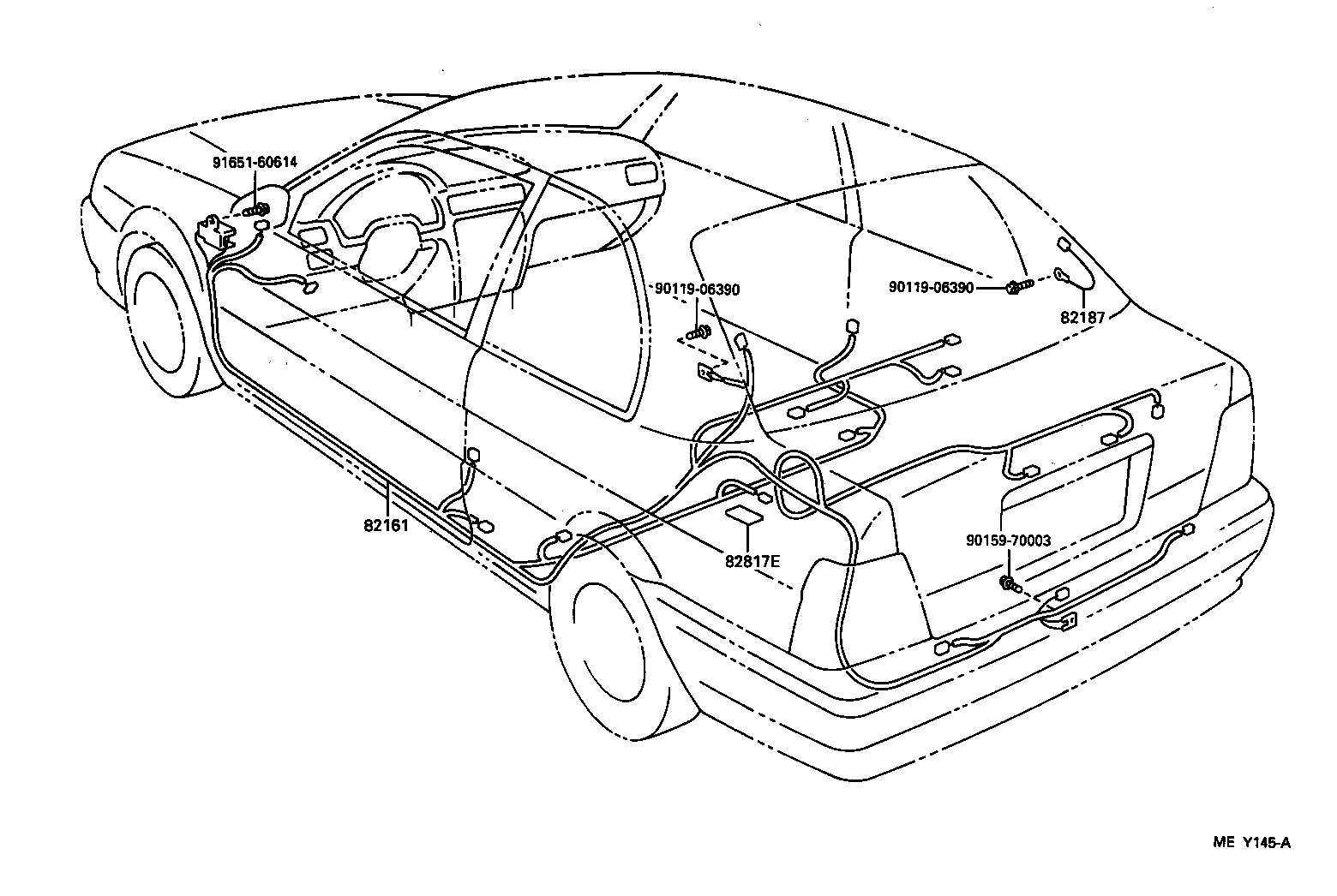

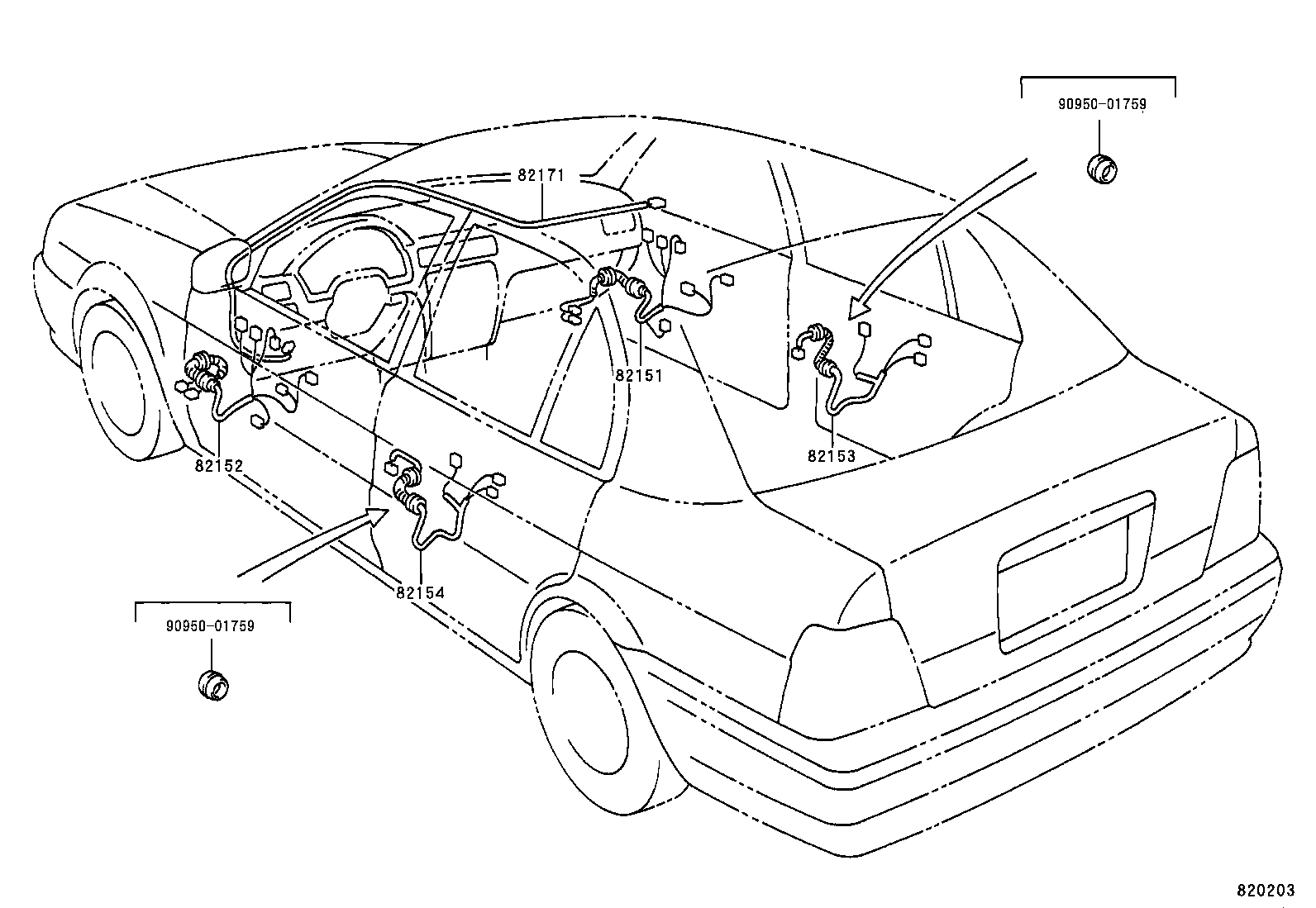

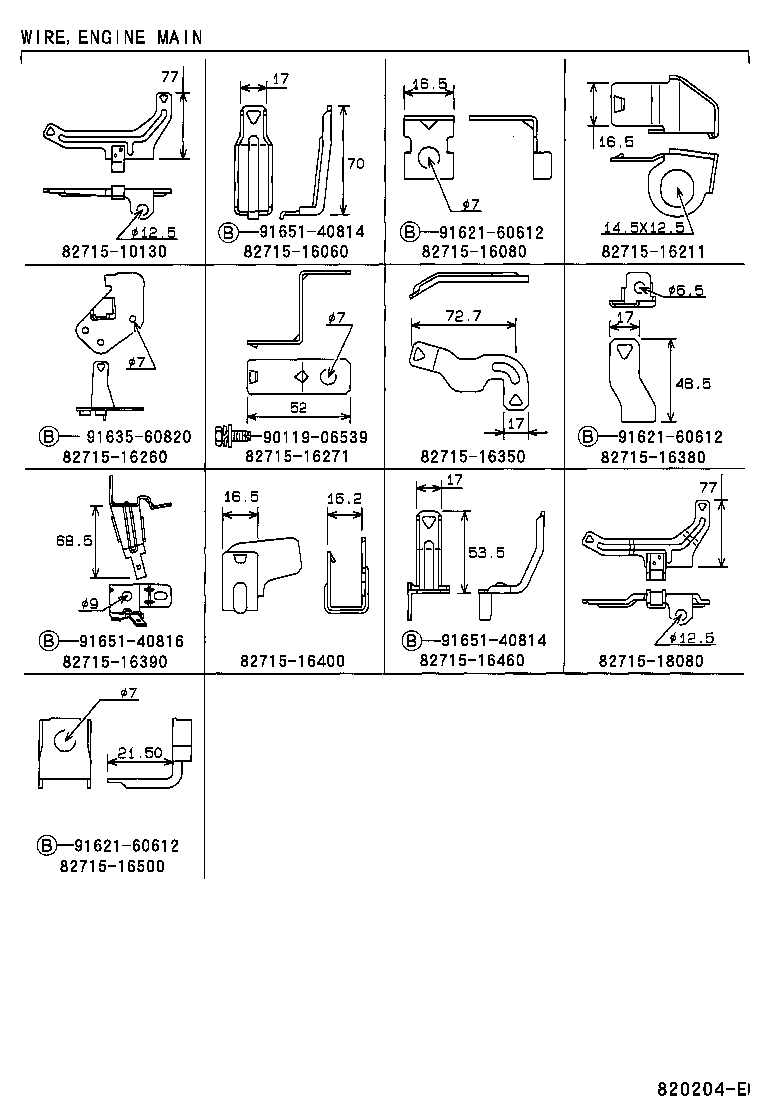

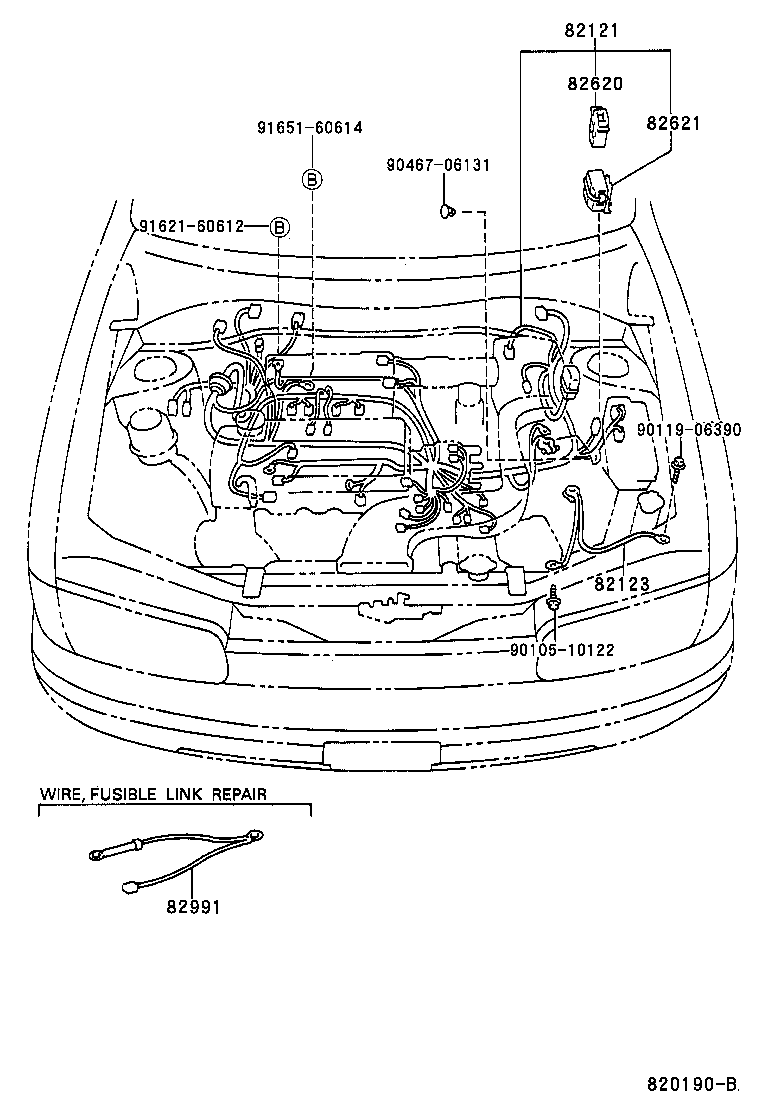

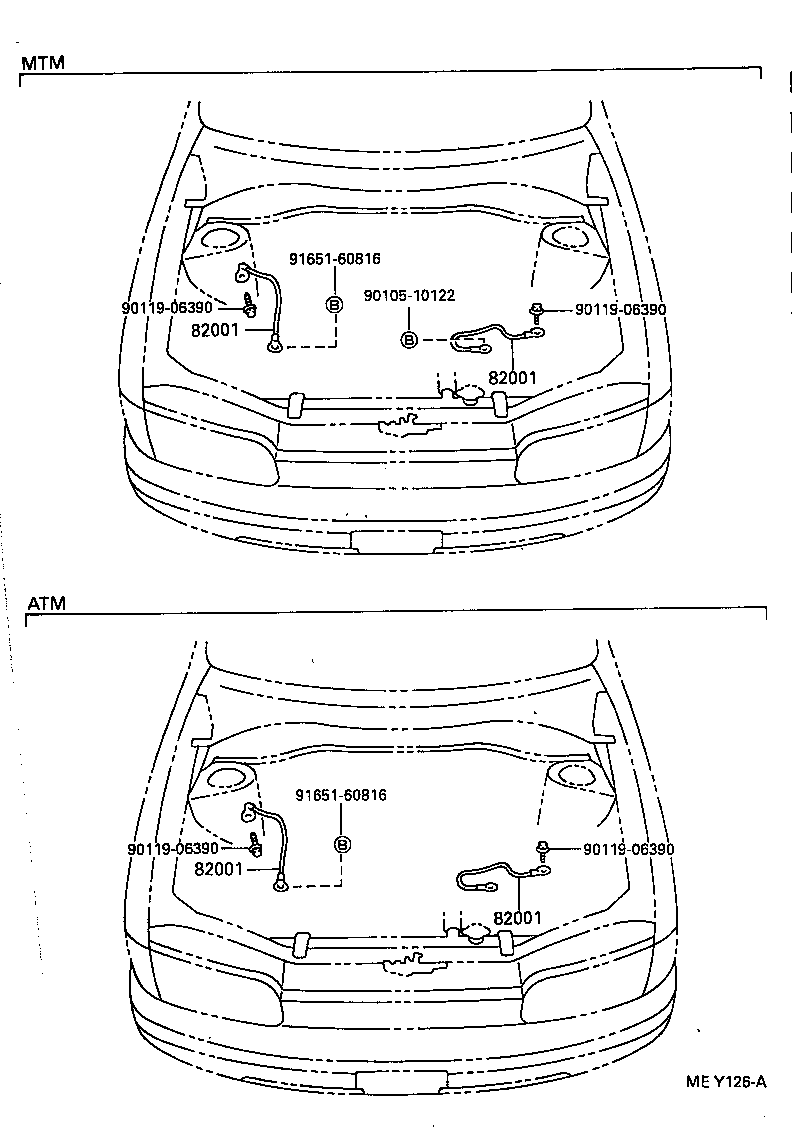

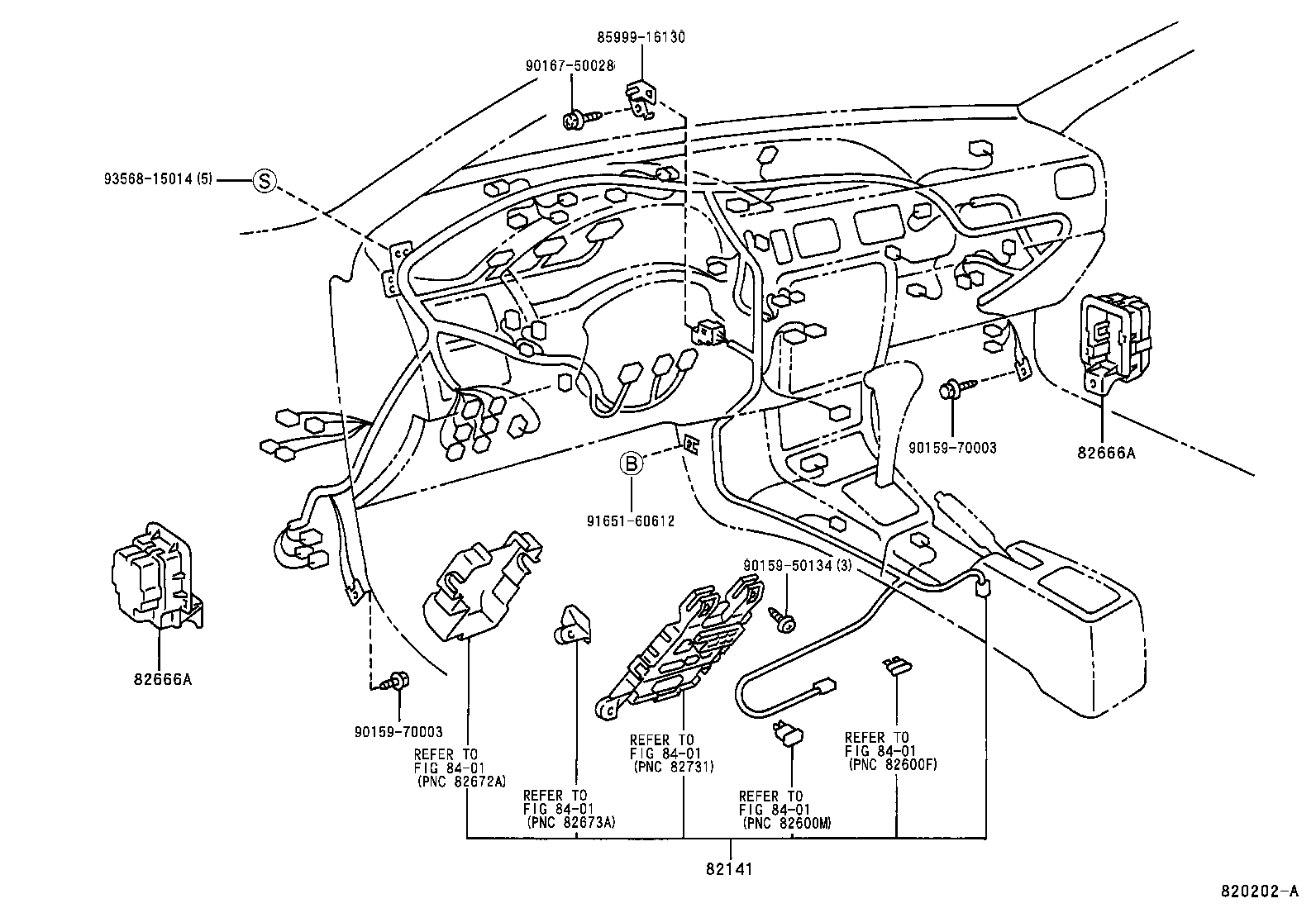

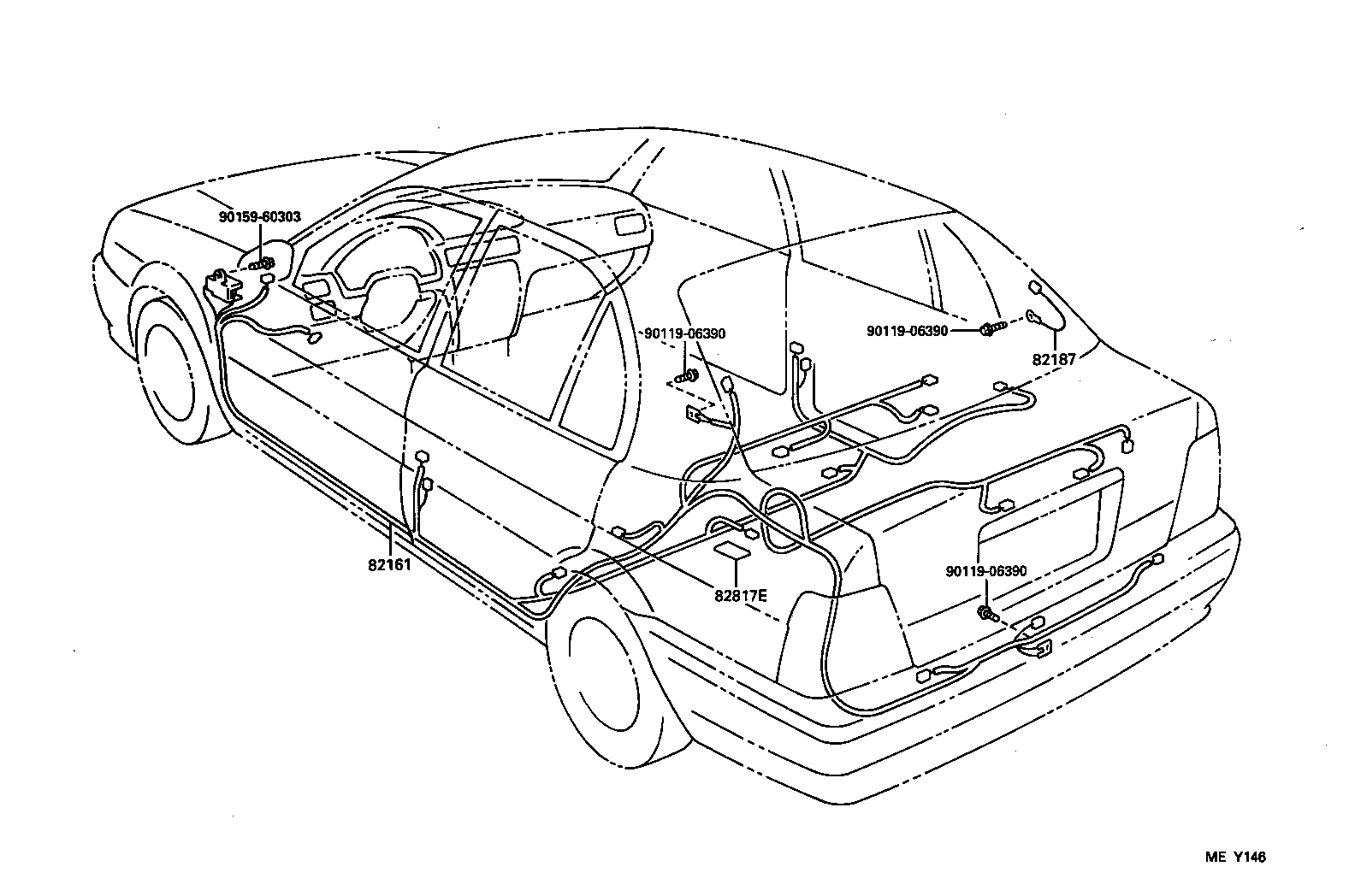

Figure 820724A 820724A 1994-09 → — Figure 820190B 820190B 1994-09 → — Figure 820202A 820202A 1994-09 → — Figure MEY143 MEY143 1994-09 → — Figure 820203 820203 1994-09 → — Figure MEY145A MEY145A 1994-09 → — Figure MEY146 MEY146 1994-09 → — Figure MEY126A MEY126A 1994-09 → — Figure 820204E 820204E 1994-09 → — Figure 820374 820374 1994-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82620 Block Assy, Fusible Link
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82817E Protector, Wiring Harness, NO.6
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
