Toyota Paseo
1995-08 → 1999-07 · chassis EL54 · catalogue 144220 · Europe
Discontinued model
Data version 2000-02

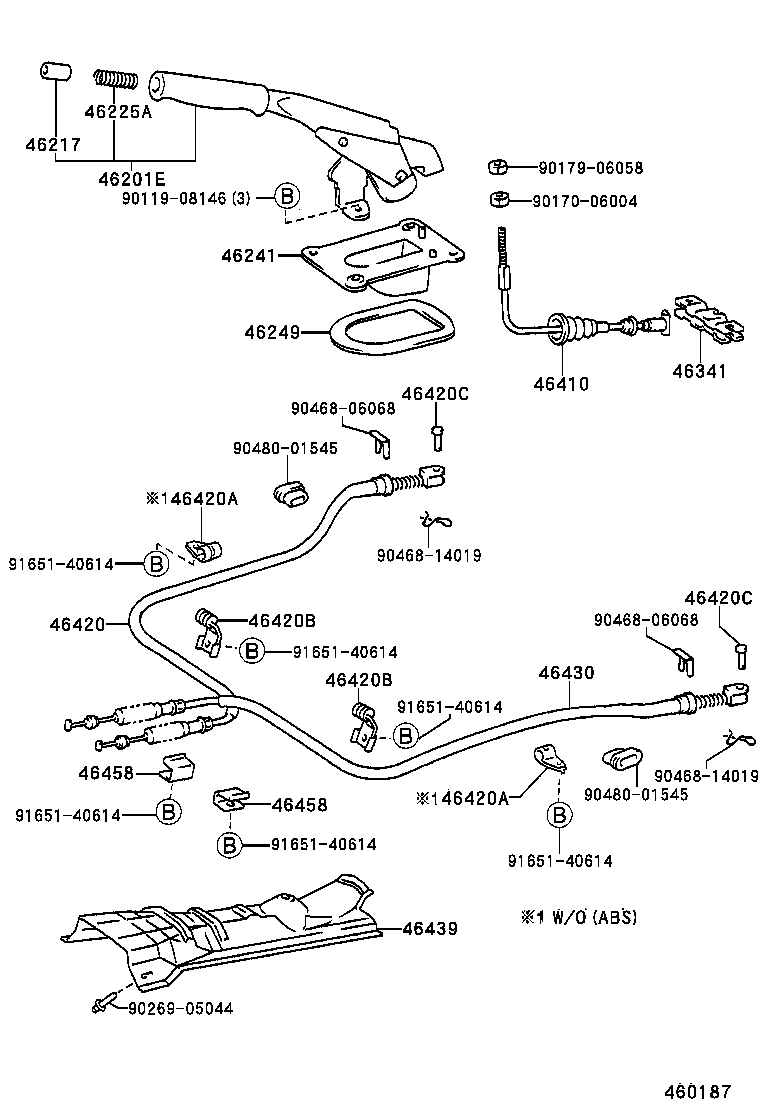

Parking Brake & Cable
14 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 46201E | Lever Sub-assy, Parking Brake |
| 46217 | Knob, Parking Brake Release Rod |
| 46225A | Spring, Compression(FOR PARKING BRAKE PAWL ROD) |
| 46241 | Boot, Parking Brake Lever |
| 46249 | Shield, Parking Brake Hole |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420A | Clamp, NO.1(FOR PARKING BRAKE CABLE) |
| 46420B | Clamp, NO.2(FOR PARKING BRAKE CABLE) |
| 46420C | Pin, W/Hole(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46439 | Insulator, Parking Brake Cable Heat |
| 46458 | Retainer, Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
