Toyota Paseo

1995-08 → 1999-07 · chassis EL54 · catalogue 144220 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

7 part groups · 2 illustrations

Illustrations

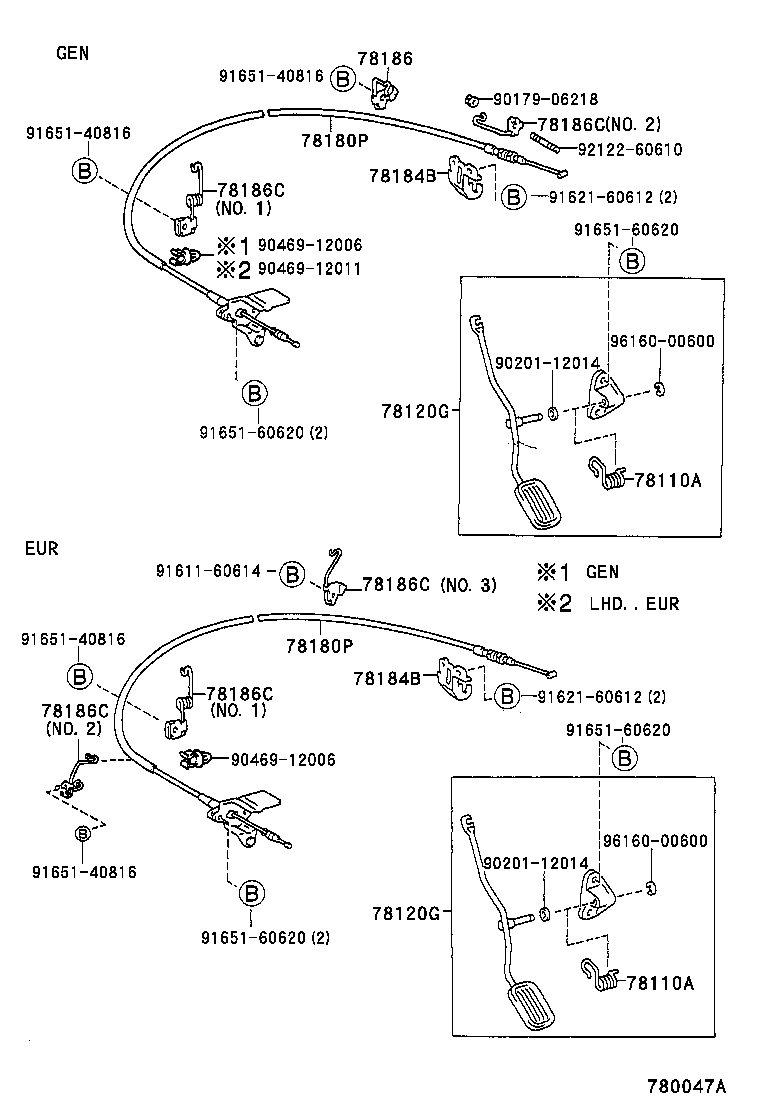

Figure 780049A 780049A 1995-08 → — Figure 780047A 780047A 1995-08 → —

Part groups

PNCDescription
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78186C Support, Accelerator Control Cable NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
