Toyota Paseo

1991-04 → 1995-08 · chassis EL44 · catalogue 144410 · Europe

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

14 part groups · 2 illustrations

Illustrations

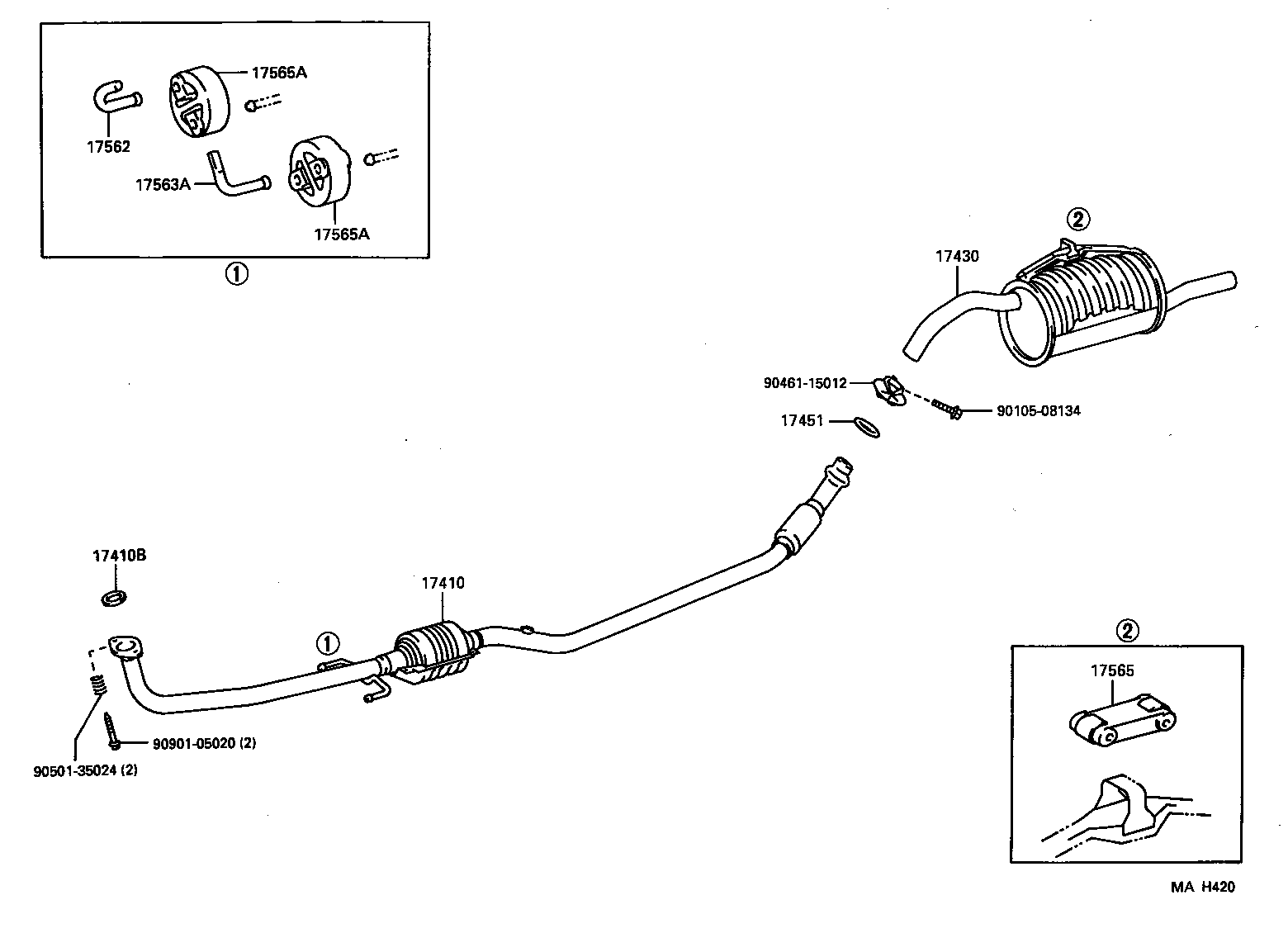

Figure MAE475B MAE475B 1991-04 → — Figure MAH420 MAH420 1994-09 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
