Toyota Paseo

1991-04 → 1995-08 · chassis EL44 · catalogue 144410 · Europe

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 5 illustrations

Illustrations

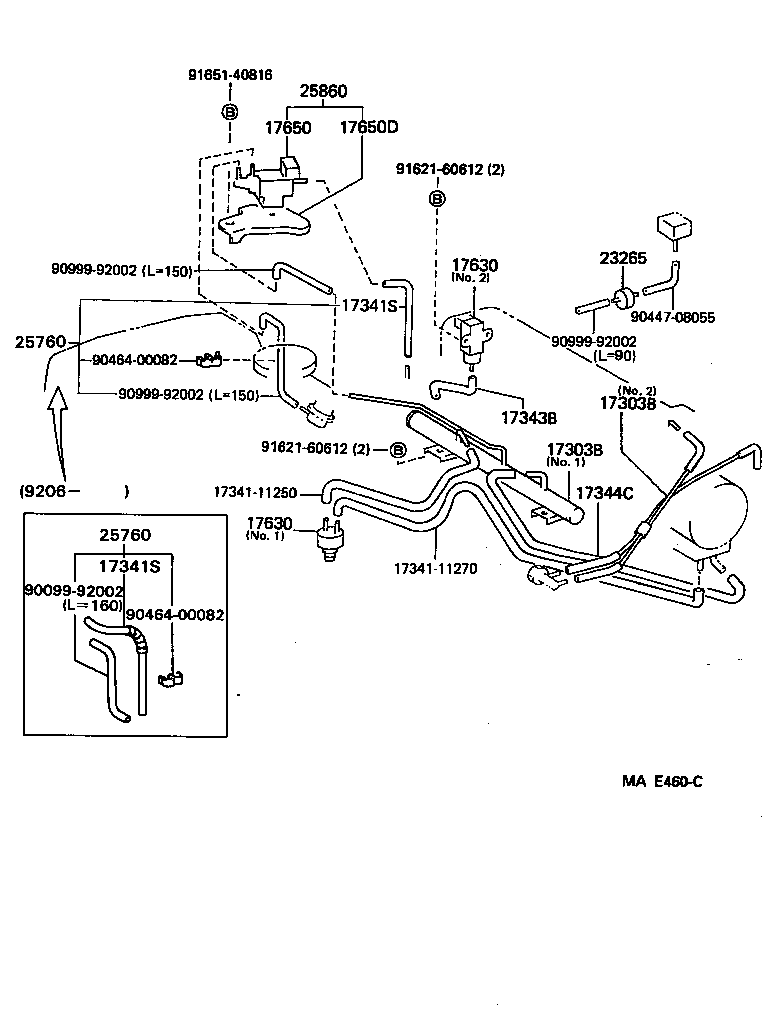

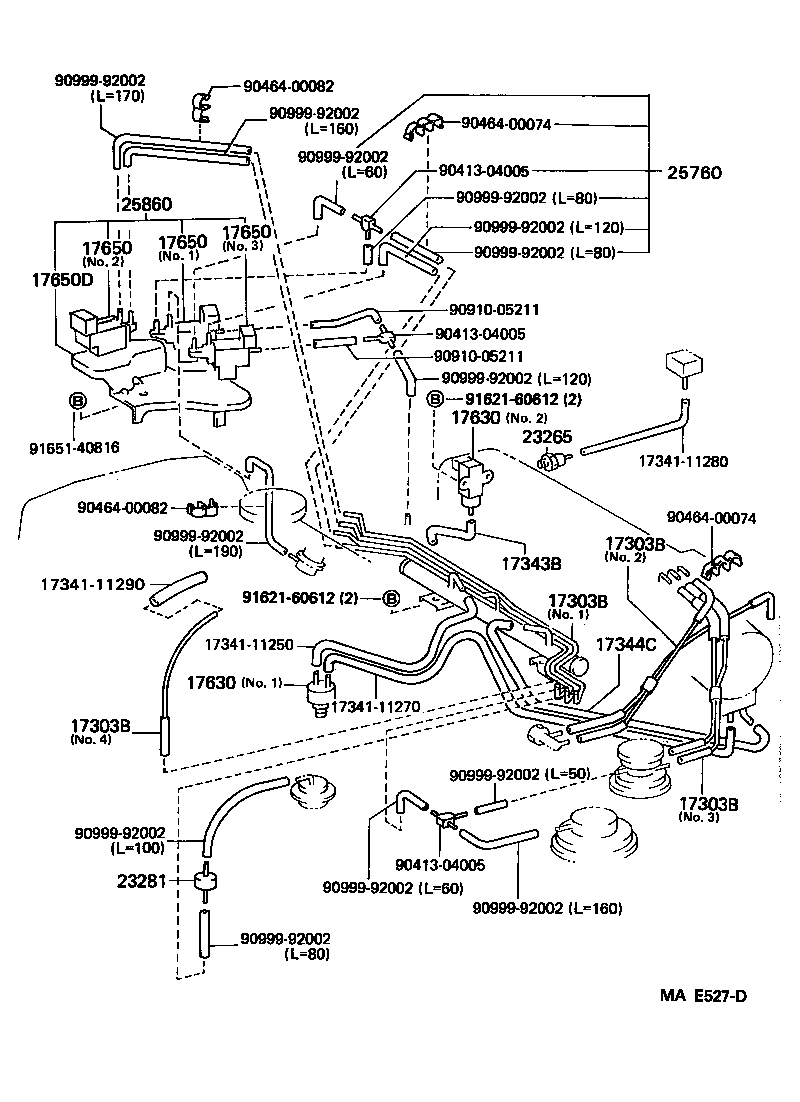

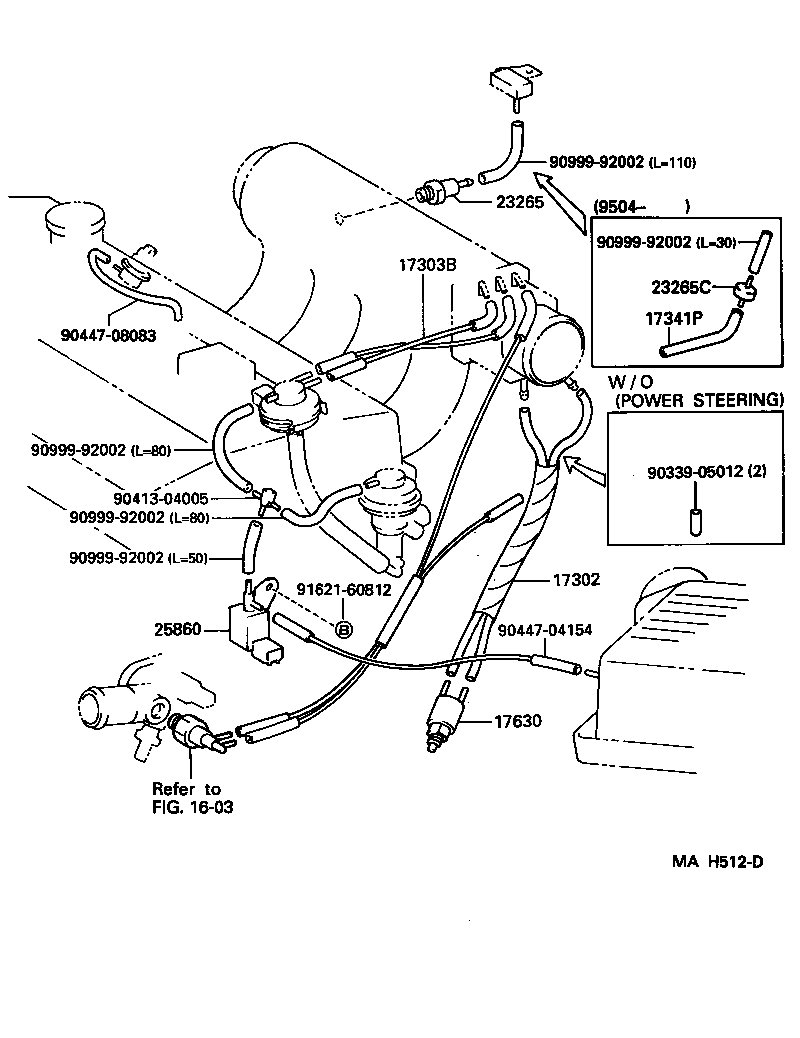

Figure MA9504B MA9504B 1991-04 → — Figure MAE460C MAE460C 1991-04 → — Figure MAE527D MAE527D 1991-04 → 1994-09 Figure MAE527D MAE527D 1991-04 → — Figure MAH512D MAH512D 1994-09 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17303B Pipe Sub-assy, Air, NO.1
17341P Hose, Air
17341S Hose, Air
17343B Hose, NO.3(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23265 Filter, Gas, NO.1
23265C Filter, Gas
23281 Valve, Vacuum Transmitting, NO.1
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
