Toyota Paseo

1991-04 → 1995-08 · chassis EL44 · catalogue 144410 · Europe

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 9 illustrations

Illustrations

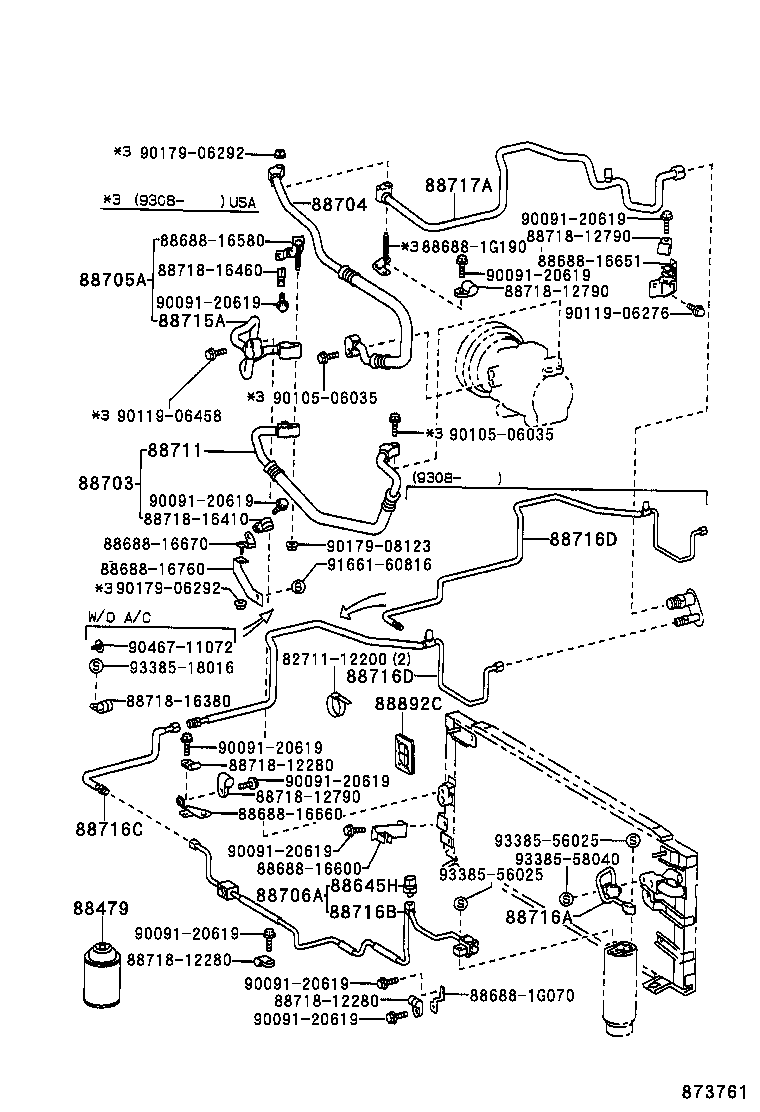

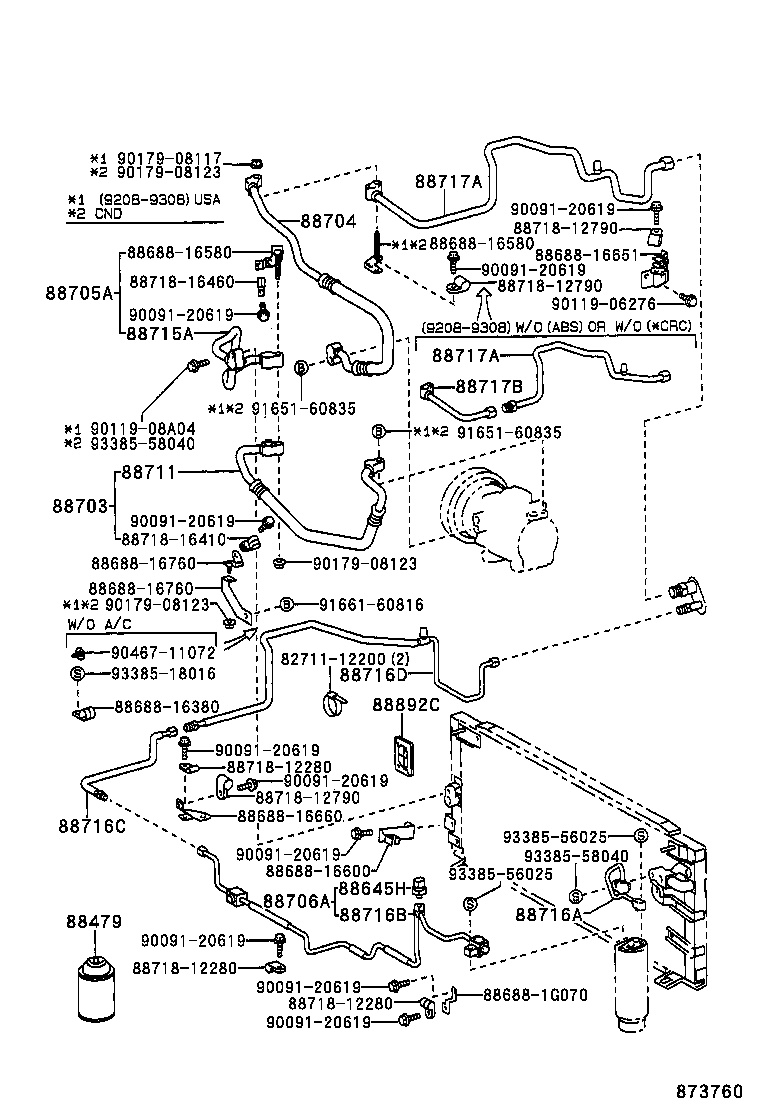

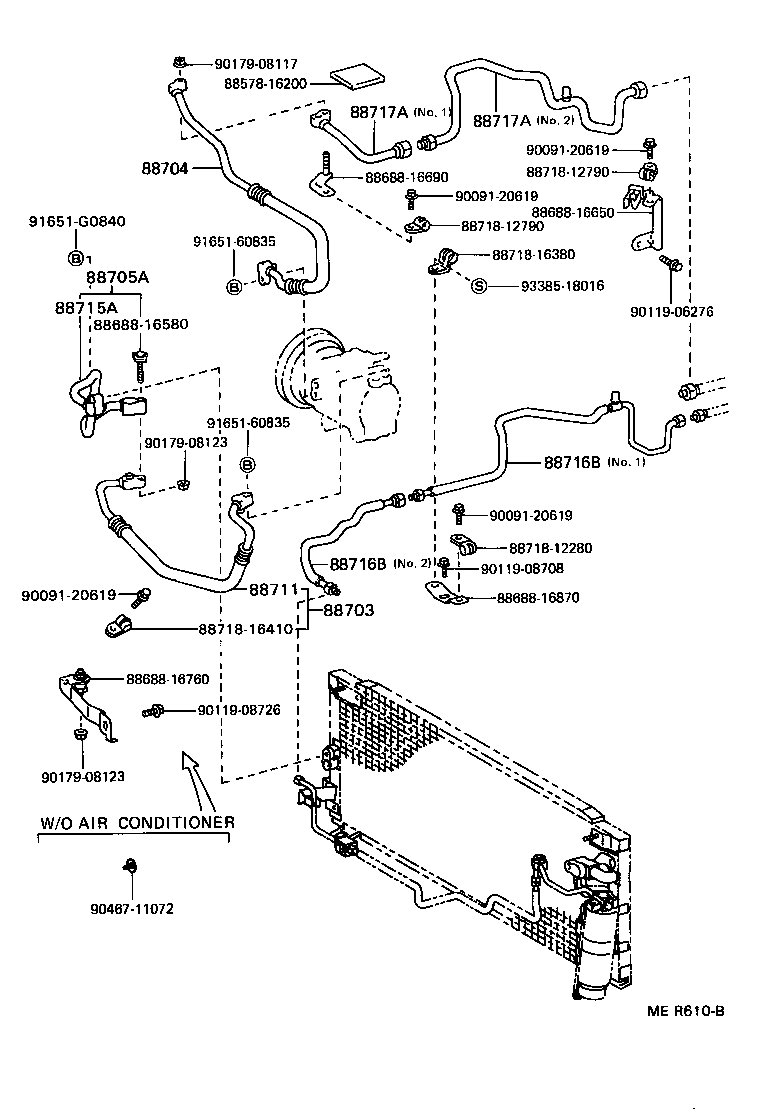

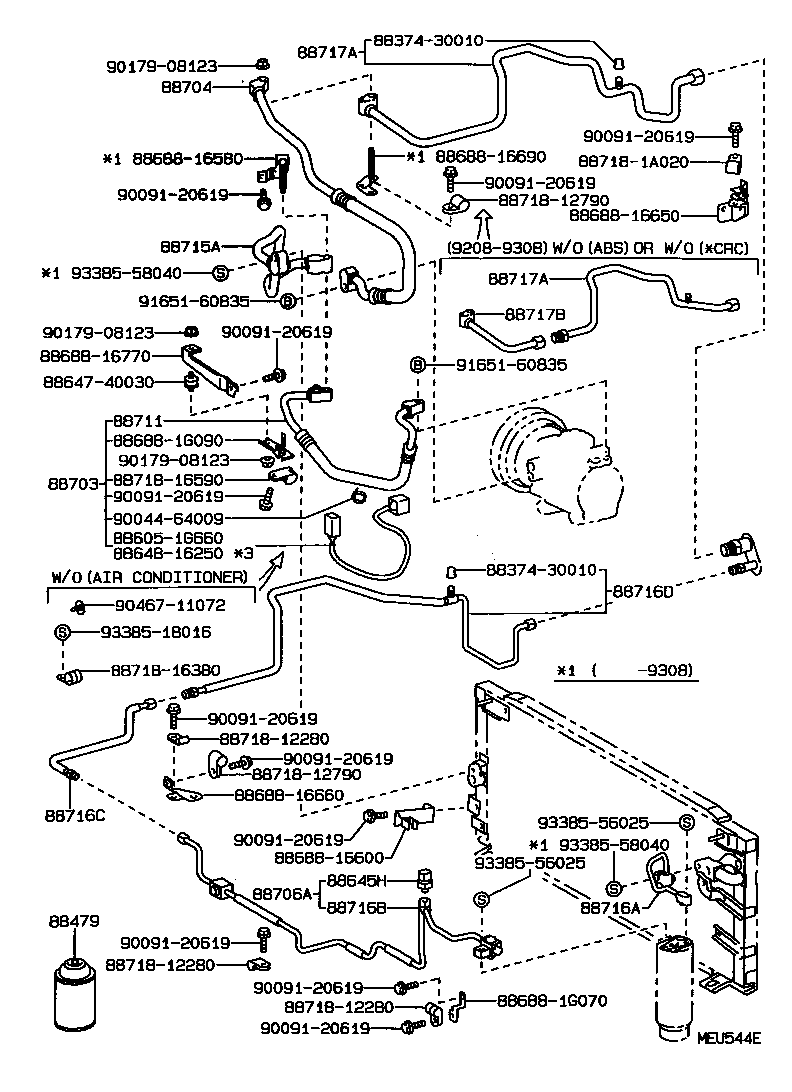

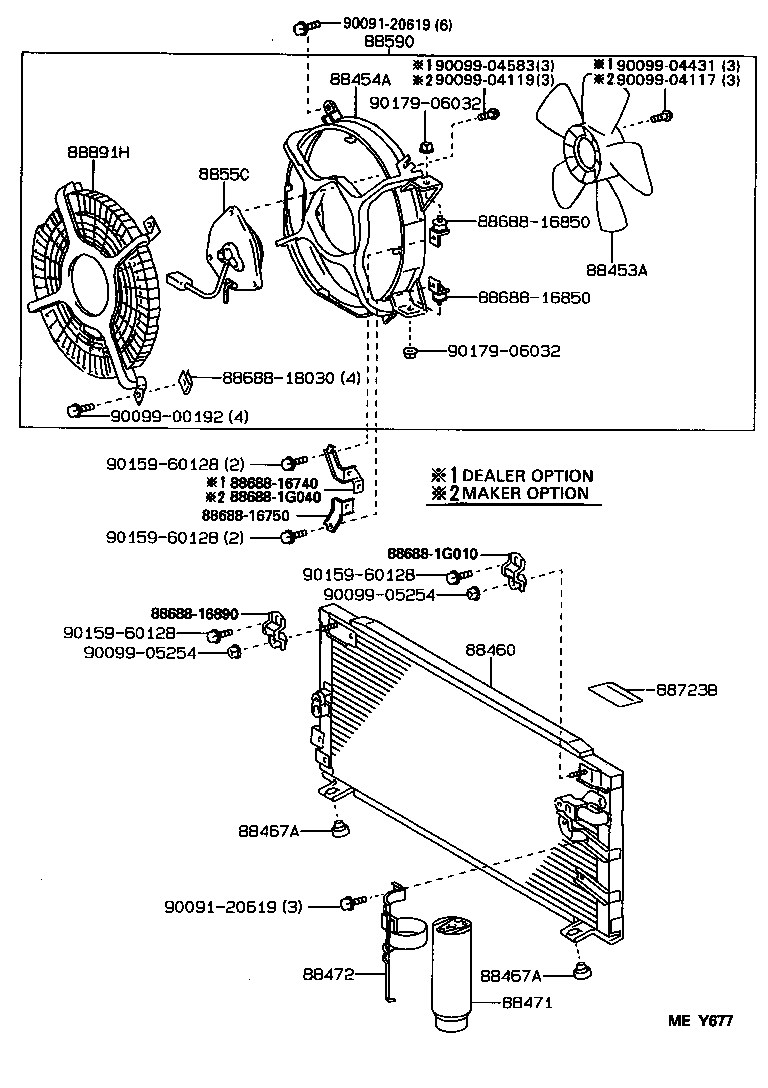

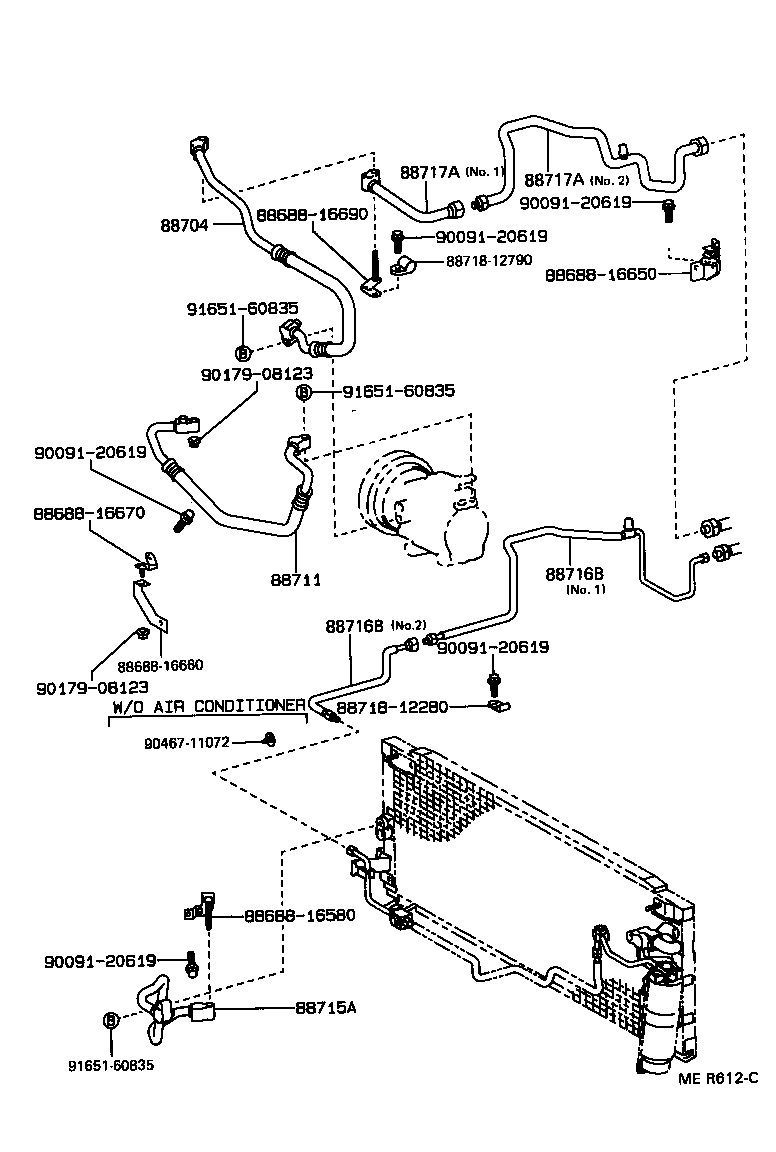

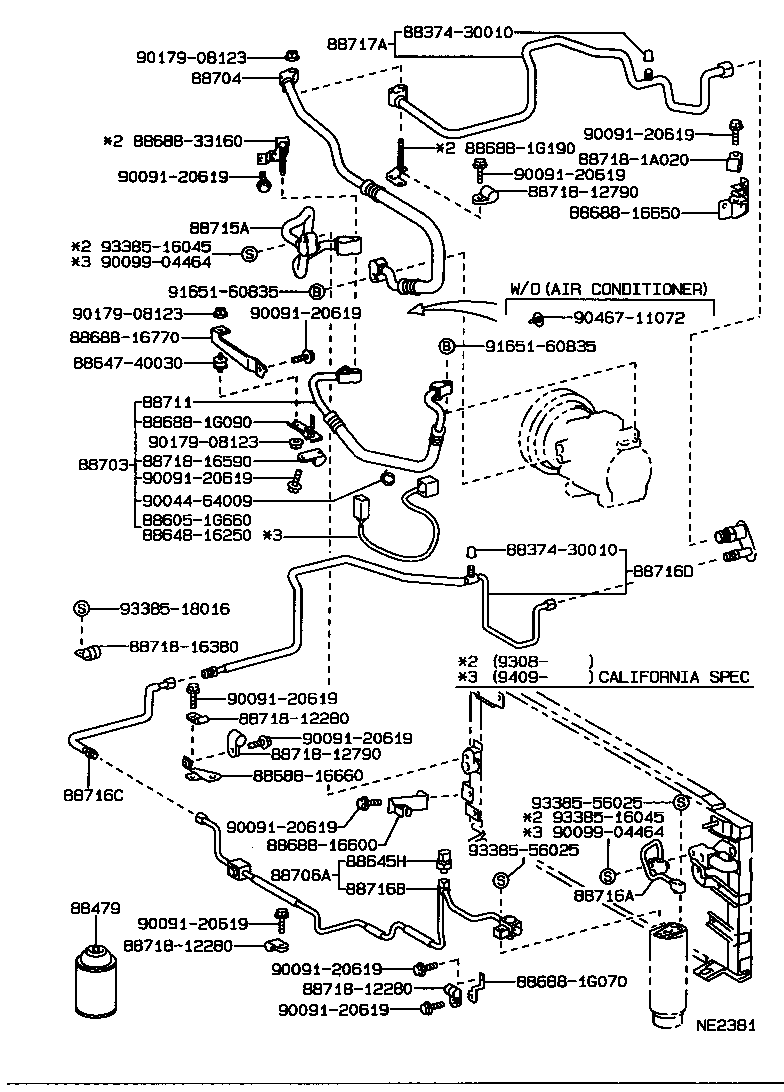

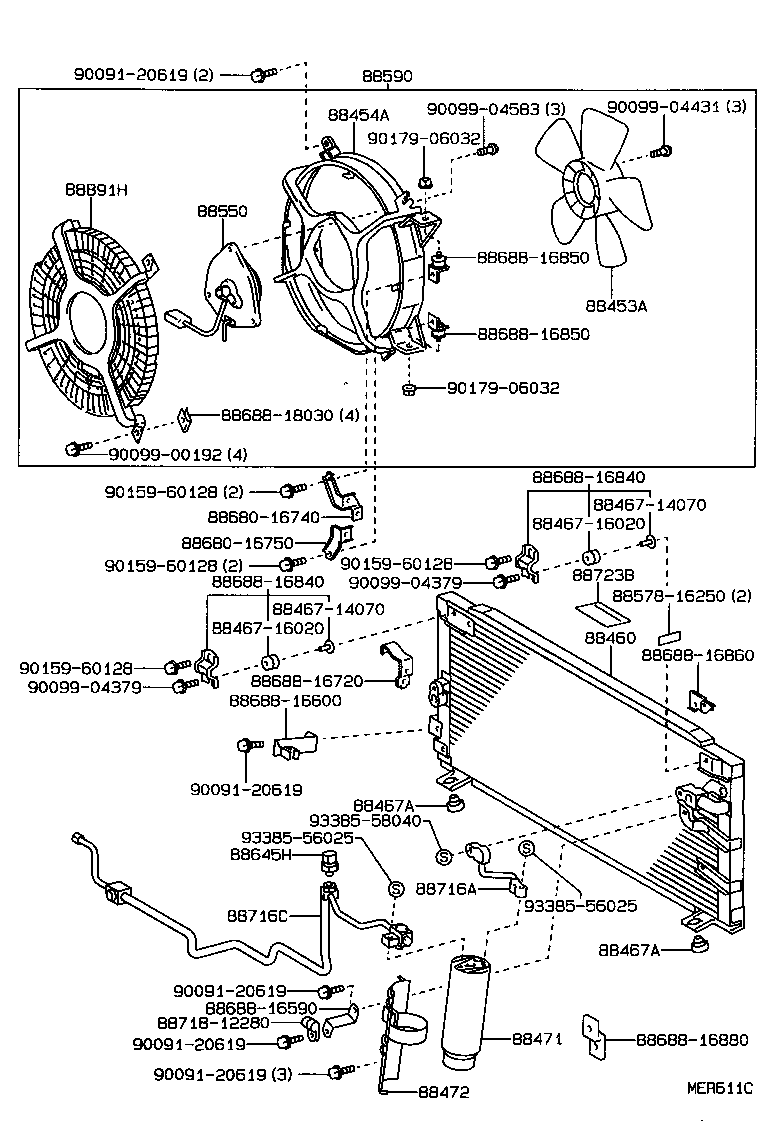

Figure MER609D MER609D 1991-04 → 1992-08 Figure MER611C MER611C 1991-04 → 1992-08 Figure MEY677 MEY677 1992-08 → — Figure MER610B MER610B 1991-04 → 1992-08 Figure 873760 873760 1992-08 → 1993-08 Figure 873761 873761 1993-08 → — Figure MER612C MER612C 1991-04 → 1992-08 Figure MEU544E MEU544E 1992-08 → 1993-08 Figure NE2381 NE2381 1993-08 → —

Part groups

PNCDescription
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467A Cushion, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88711 Hose, Cooler Refrigerant Discharge, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88723B Label, Cooler Service Caution
88891H Cover, Cooler, NO.1
88892C Plate, Condenser, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
