Toyota Paseo
1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe
Discontinued model
Data version 2000-02

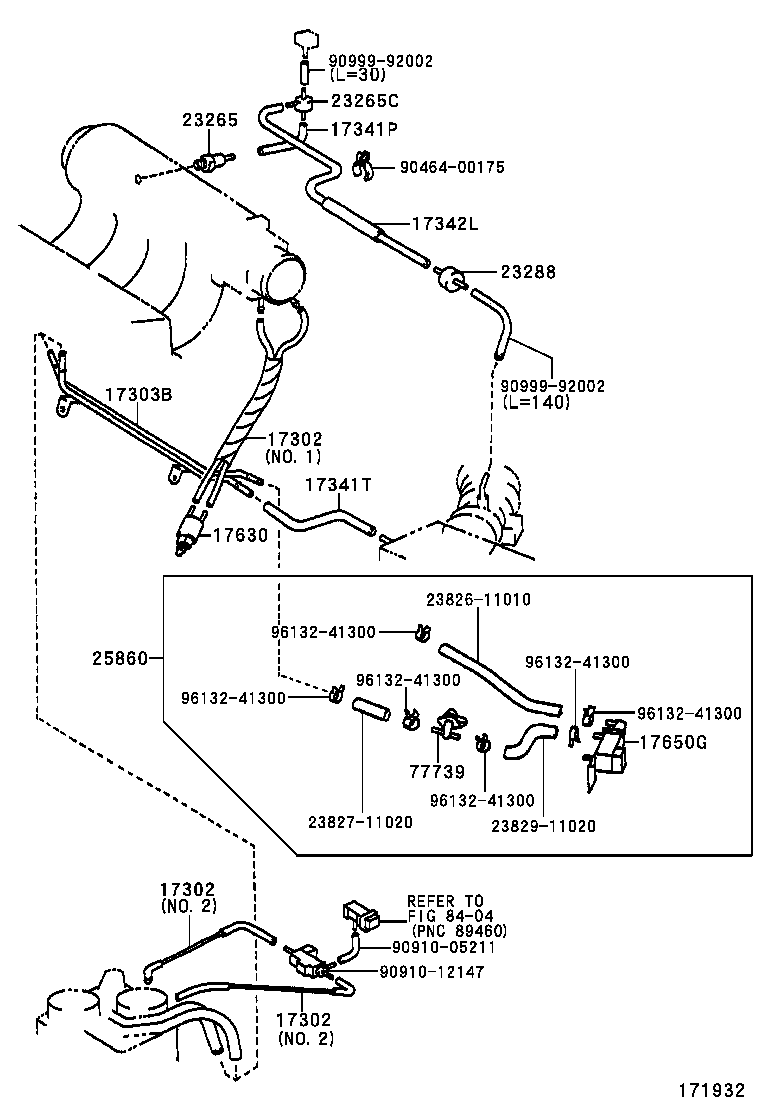

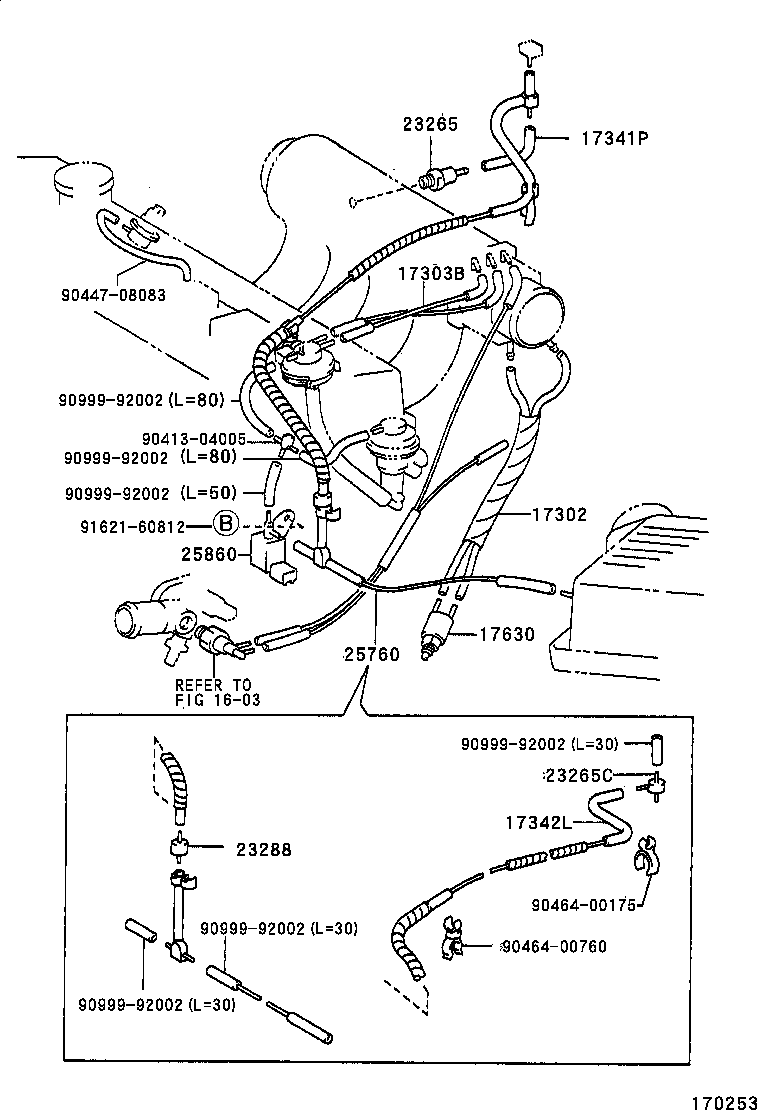

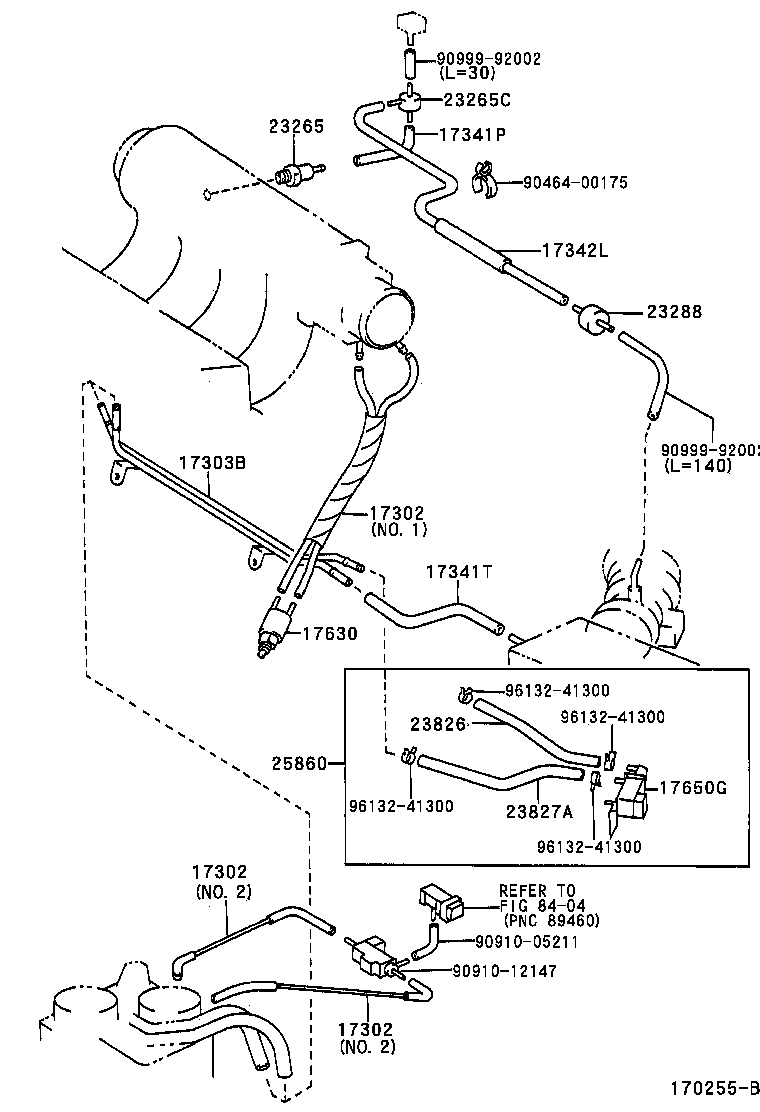

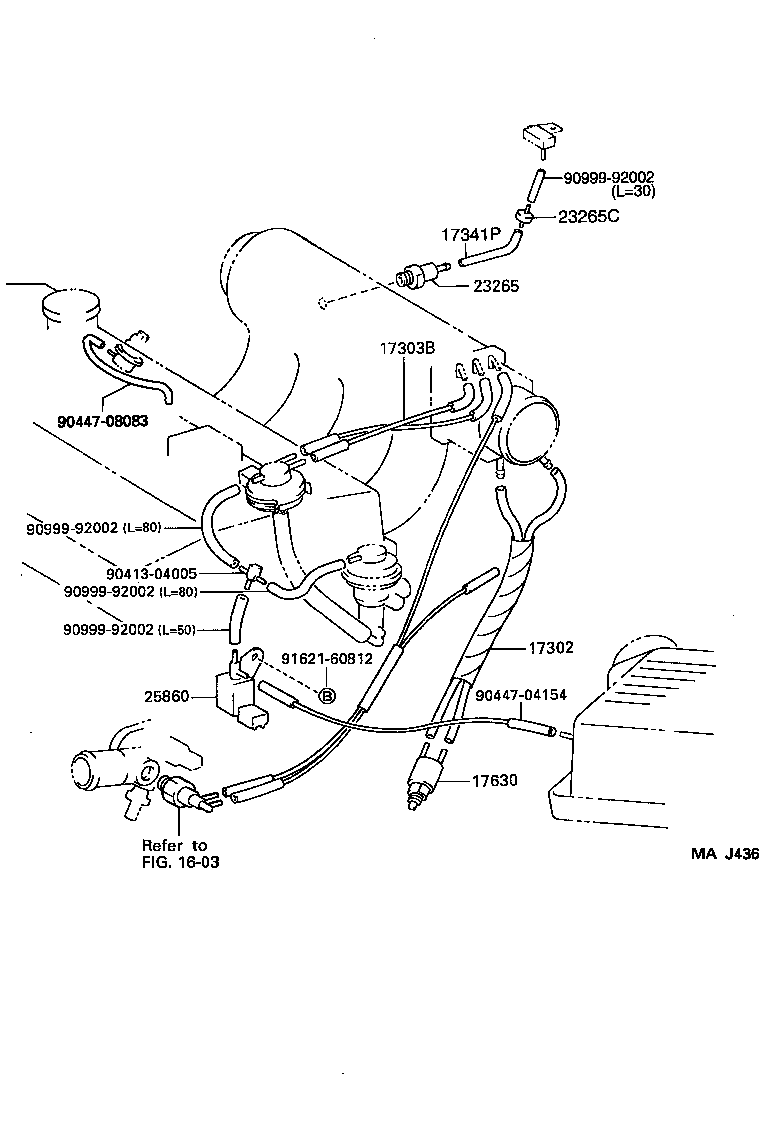

Vacuum Piping
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17341P | Hose, Air |
| 17341T | Hose, Air, NO.1 |
| 17342L | Hose, Air, NO.2 |
| 17630 | Valve Assy, Air Control |
| 17650G | Valve, Duty Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23265C | Filter, Gas |
| 23288 | Jet, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 77739 | Valve, Evap Service Port |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
