Toyota Paseo
1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe
Discontinued model
Data version 2000-02

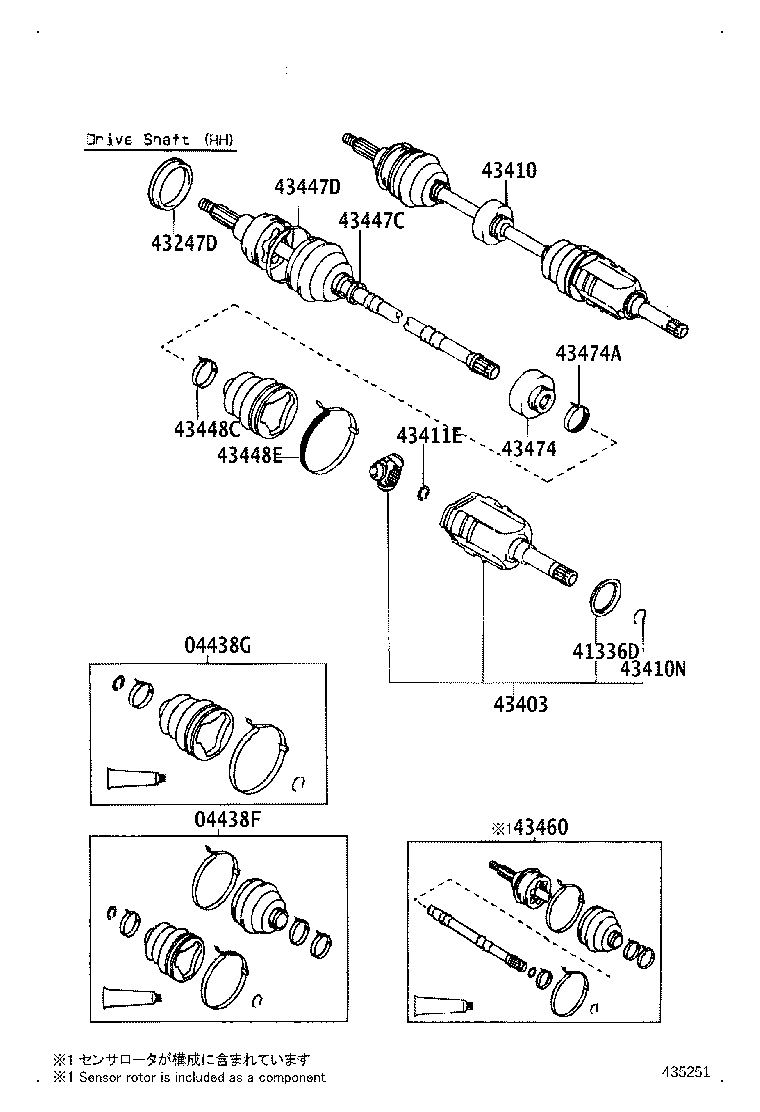

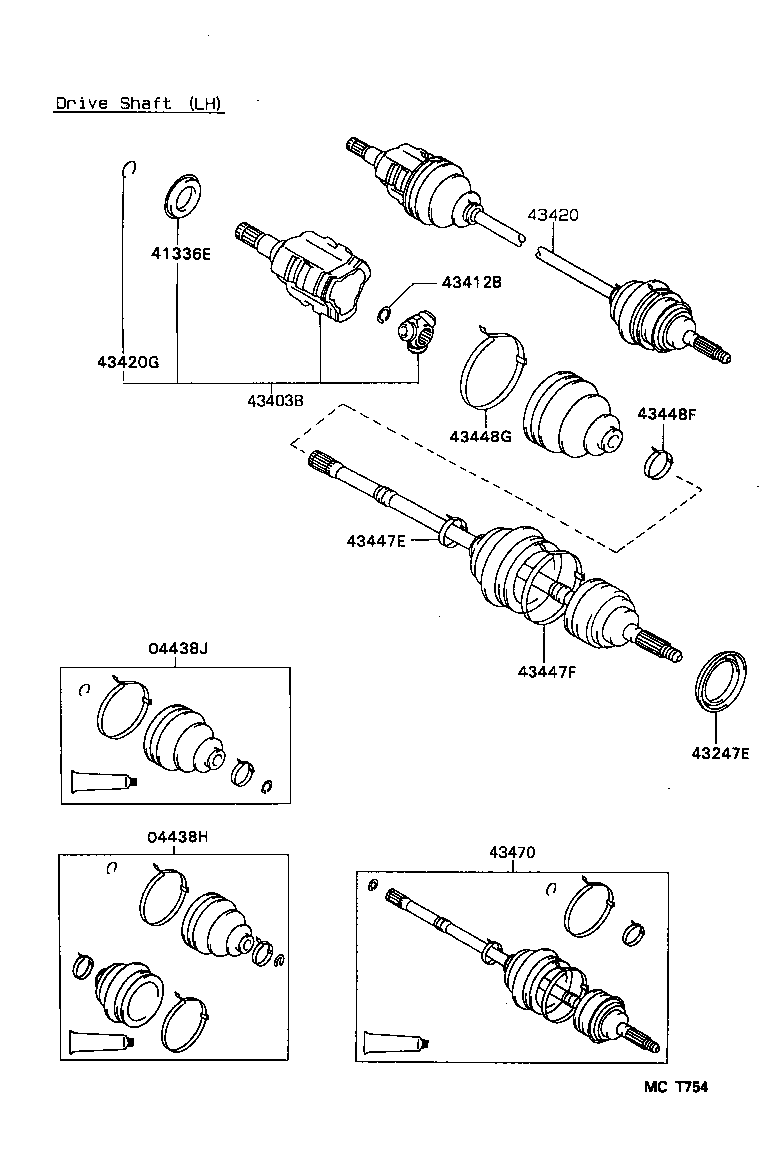

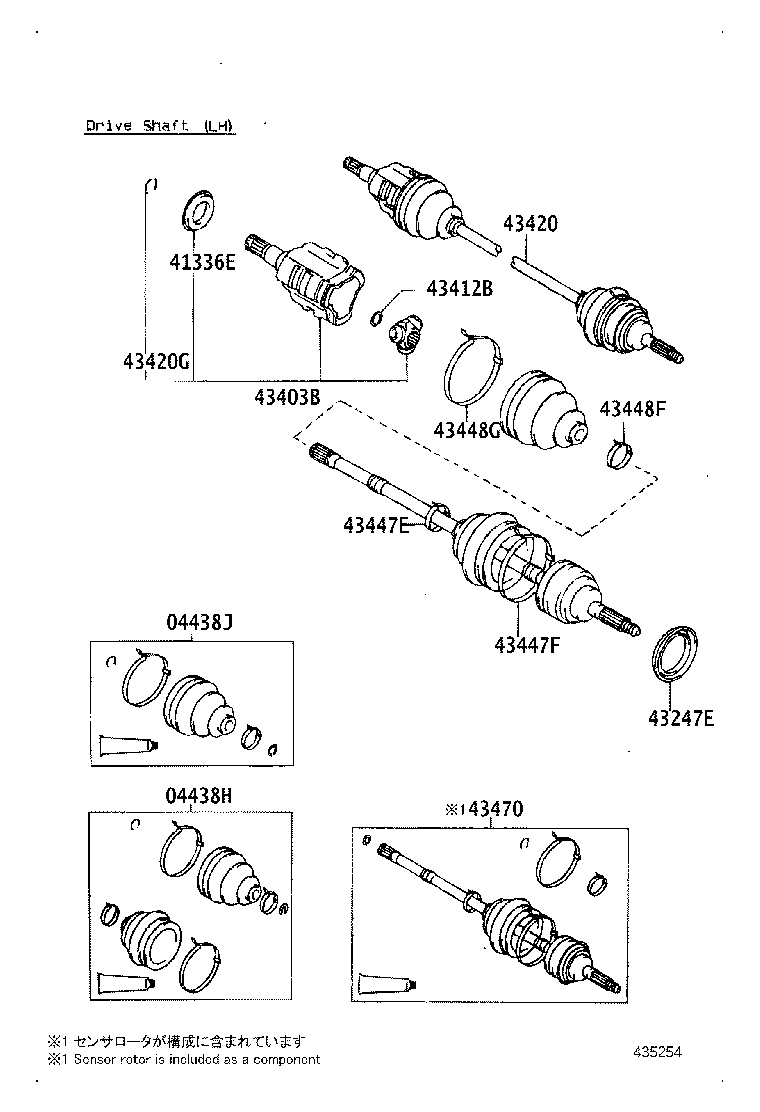

Front Drive Shaft
28 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04438F | Boot Kit, Front Drive Shaft, IN & Outboard, RH |
| 04438G | Boot Kit, Front Drive Shaft Inboard Joint, RH |
| 04438H | Boot Kit, Front Drive Shaft, IN & Outboard, LH |
| 04438J | Boot Kit, Front Drive Shaft Inboard Joint, LH |
| 41336D | Cover, Front Drive Shaft Dust, RH |
| 41336E | Cover, Front Drive Shaft Dust, LH |
| 43247D | Deflector, Front Wheel Bearing Dust, NO.2 RH |
| 43247E | Deflector, Front Wheel Bearing Dust, NO.2 LH |
| 43403 | Joint Set, Front Axle Inboard, RH |
| 43403B | Joint Set, Front Axle Inboard, LH |
| 43410 | Shaft Assy, Front Drive, RH |
| 43410N | Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH) |
| 43411E | Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH) |
| 43412B | Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH) |
| 43420 | Shaft Assy, Front Drive, LH |
| 43420G | Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH) |
| 43447C | Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) |
| 43447D | Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) |
| 43447E | Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) |
| 43447F | Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) |
| 43448C | Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH) |
| 43448E | Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) |
| 43448F | Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH) |
| 43448G | Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) |
| 43460 | Shaft Assy, Front Drive Outboard Joint, RH |
| 43470 | Shaft Assy, Front Drive Outboard Joint, LH |
| 43474 | Damper, Drive Shaft |
| 43474A | Clamp (FOR DRIVE SHAFT DAMPER SETTING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
