Toyota Paseo
1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe
Discontinued model
Data version 2000-02

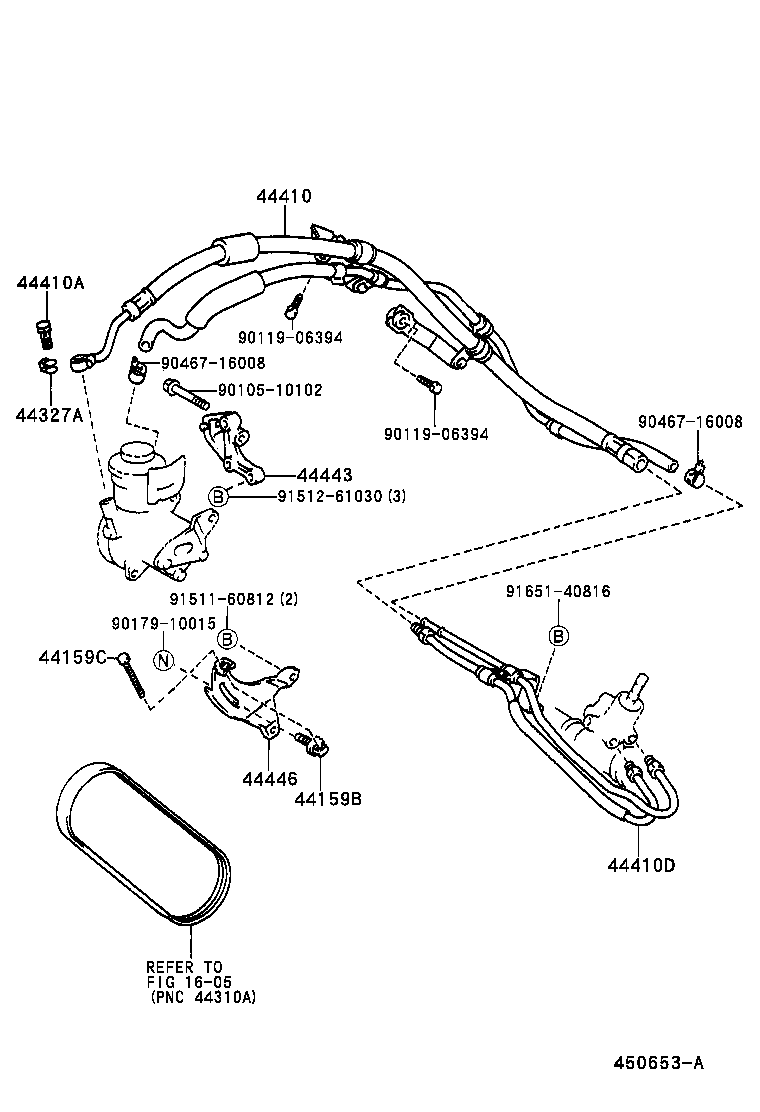

Power Steering Tube
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44159B | Bolt, Adjust, NO.1(FOR PUMP BRACKET ASSY) |
| 44159C | Bolt, Adjust, NO.2(FOR PUMP BRACKET ASSY) |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410D | Tube Assy, Pressure Feed, NO.2 |
| 44443 | Bracket, Pump |
| 44446 | Strut, Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
