Toyota Paseo

1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe

Discontinued model Data version 2000-02

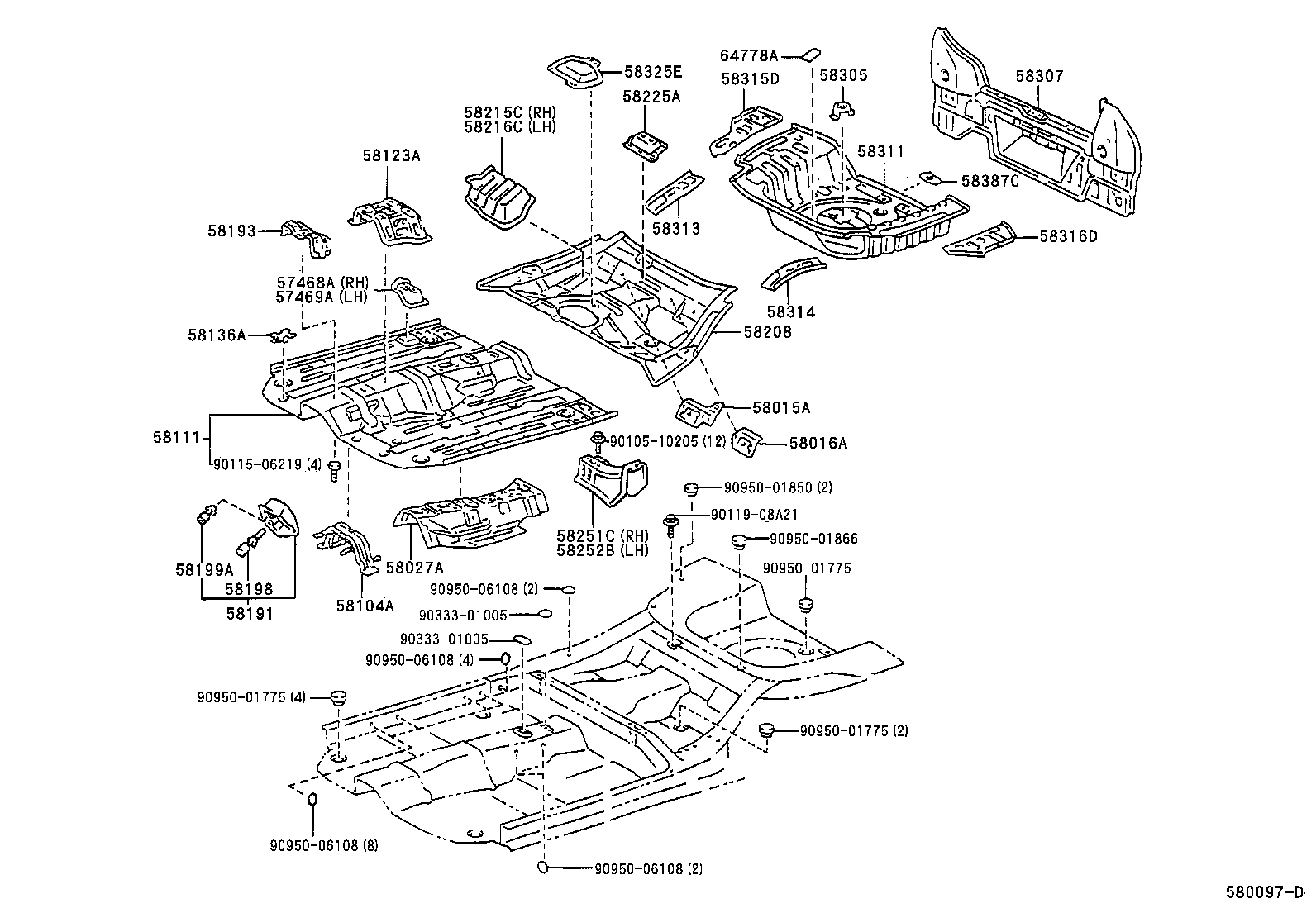

Floor Pan & Lower Back Panel

33 part groups · 2 illustrations

PNC	Description
57468A	Bracket, Front Seat, Outside, Rear RH
57469A	Bracket, Front Seat, Outside, Rear LH
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A	Reinforce Sub-assy, Belt Anchor, NO.3 LH
58027A	Reinforce Sub-assy, Seat Belt Anchor
58037B	Reinforce, Center Pillar TO Floor, RH
58038B	Reinforce, Center Pillar TO Floor, LH
58104A	Bracket Sub-assy, Catalytic Converter Support
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136A	Cover, Front Floor Service Hole
58191	Footrest, Front Floor
58193	Bracket, Instrument Panel Brace Mounting
58198	Clip, Footrest
58199A	Clip, Footrest, NO.2
58208	Pan, Center Floor
58215C	Reinforcement, Center Floor Panel, NO.2 RH
58216C	Reinforcement, Center Floor Panel, NO.2 LH
58225A	Bracket, Center Mounting
58251C	Brace, Floor Panel, Front RH
58252B	Brace, Floor Panel, Front LH
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58315D	Extension, Rear Floor Pan, RH
58316D	Extension, Rear Floor Pan, LH
58325E	Cover, Rear Floor Service Hole
58387C	Plate, Rear Floor Finish
64181	Reinforcement Sub-assy, Rear Seat Belt Anchor
64182	Reinforcement, Rear Seat Belt Anchor, NO.2
64778A	Protector, Spare Wheel

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
