Toyota Paseo
1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe
Discontinued model
Data version 2000-02

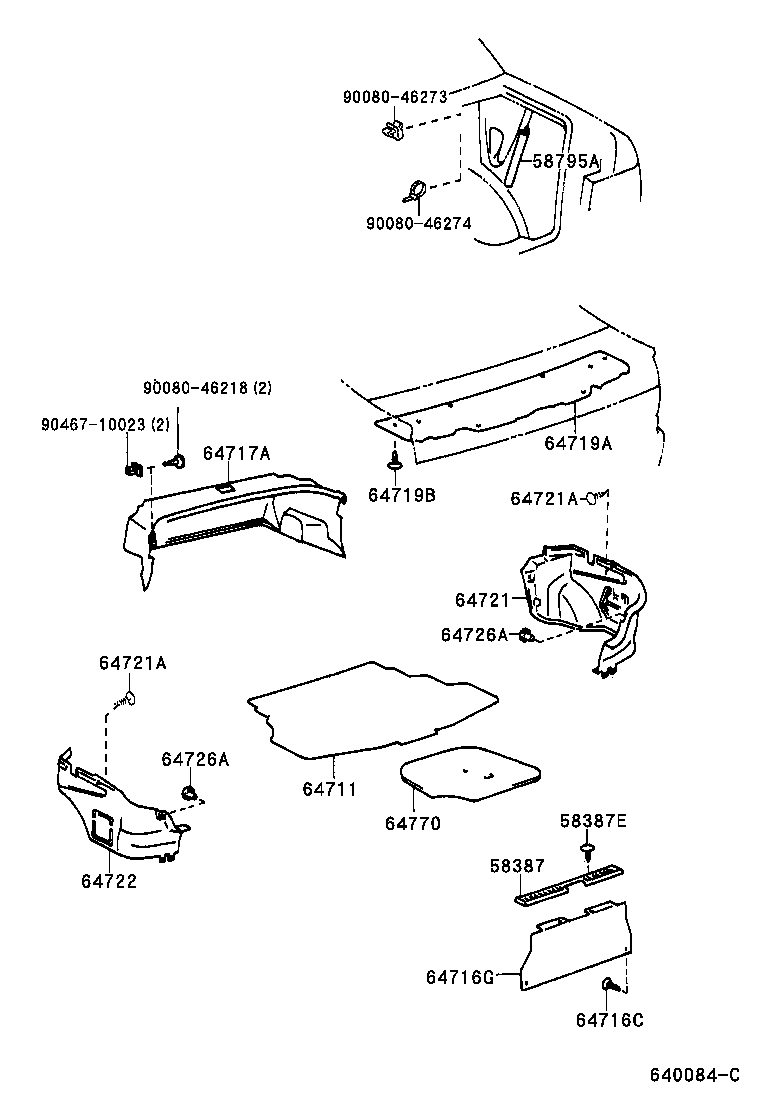

Package Tray Panel & Luggage Compartment Mat
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58422C | Anchor, Luggage Hold Belt |
| 58795A | Trim, Jack House Opening |
| 63259F | Case, Removable Roof |
| 64033B | Grille Sub-assy, Rear Speaker, RH |
| 64034B | Grille Sub-assy, Rear Speaker, LH |
| 64270A | Clip(FOR ROOM PARTITION BOARD SETTING) |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271G | Board, Room Partition, RH |
| 64272B | Board, Room Partition, LH |
| 64330 | Panel Assy, Package Tray Trim |
| 64333 | Cover, Package Tray Trim, Side |
| 64349D | Cover, Package Tray Trim Side, LH |
| 64371 | Retainer, Package Tray Trim |
| 64711 | Mat, Luggage Compartment Floor |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64723A | Cover, Luggage Compartment Trim, Inner Lower |
| 64726A | Clip, Luggage Trim, Rear |
| 64770 | Cover Assy, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
