Toyota Paseo

1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 2 illustrations

Illustrations

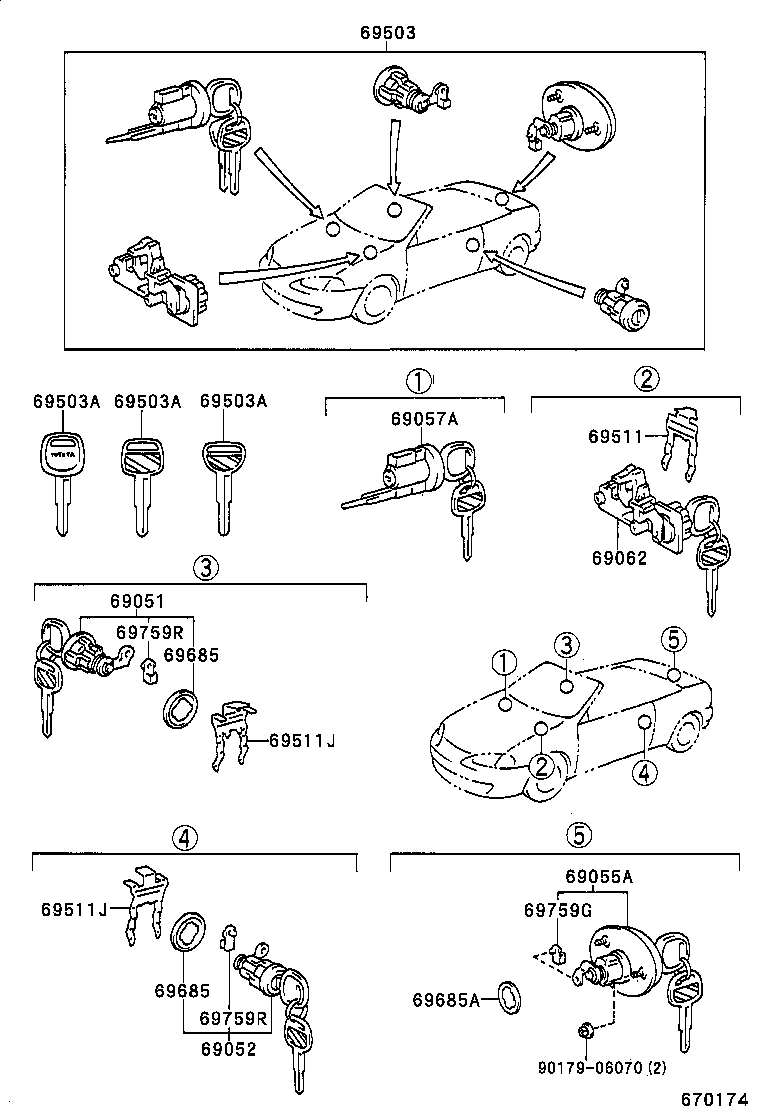

Figure 670173 670173 1995-08 → — Figure 670174 670174 1996-09 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69511J Retainer, Glove Door Lock Cylinder
69685 Pad, Lock Cylinder
69685A Pad, Lock Cylinder
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
