Toyota Paseo

1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

21 part groups · 9 illustrations

Illustrations

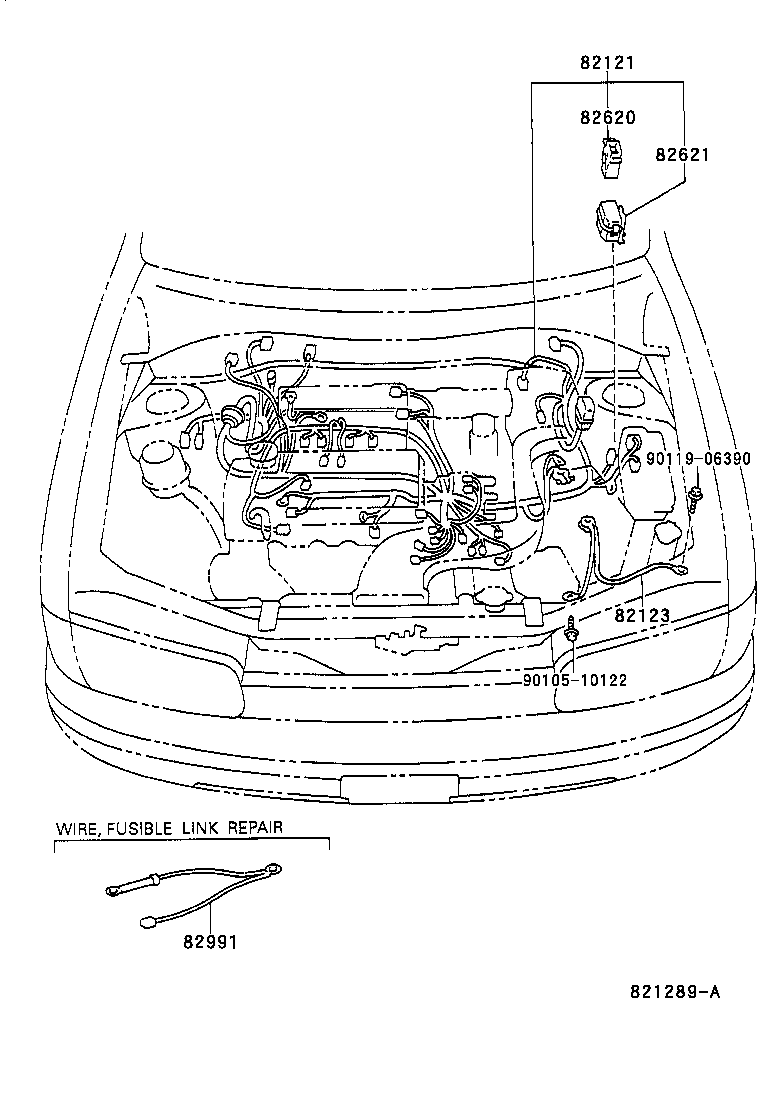

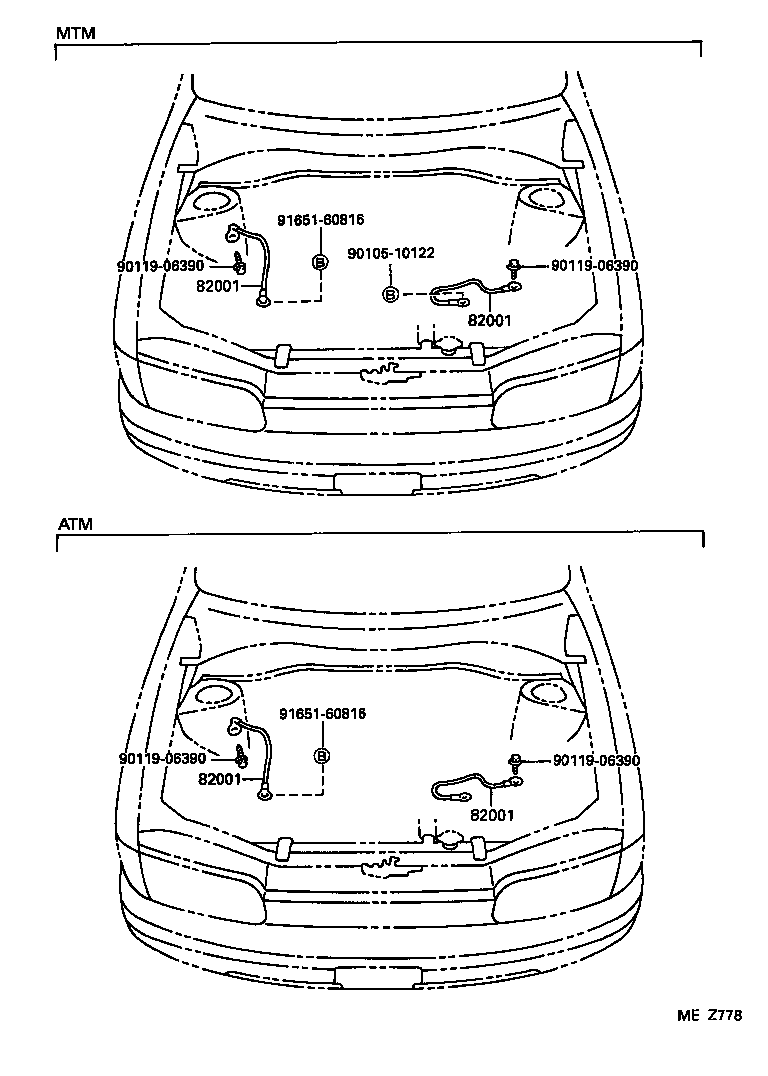

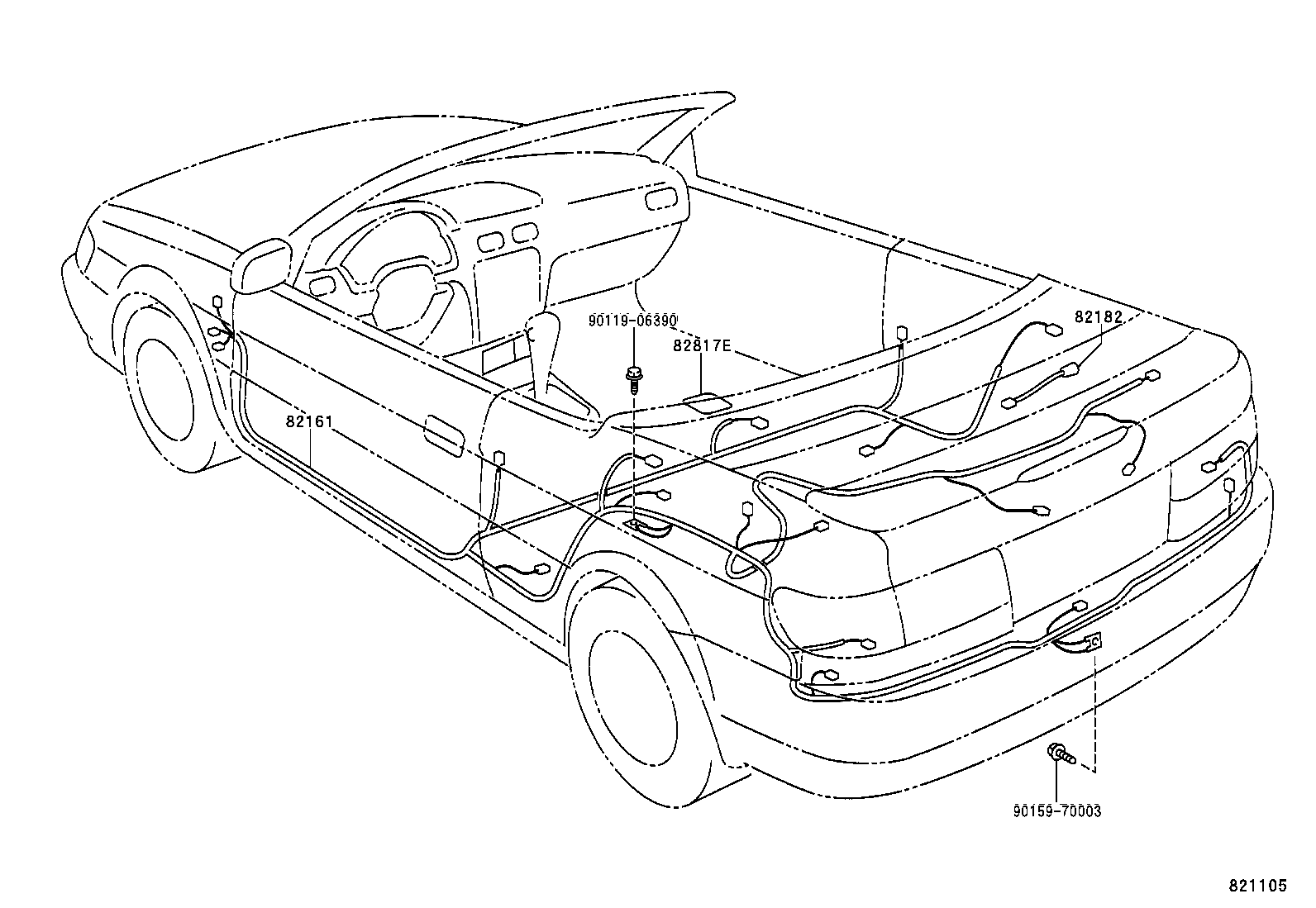

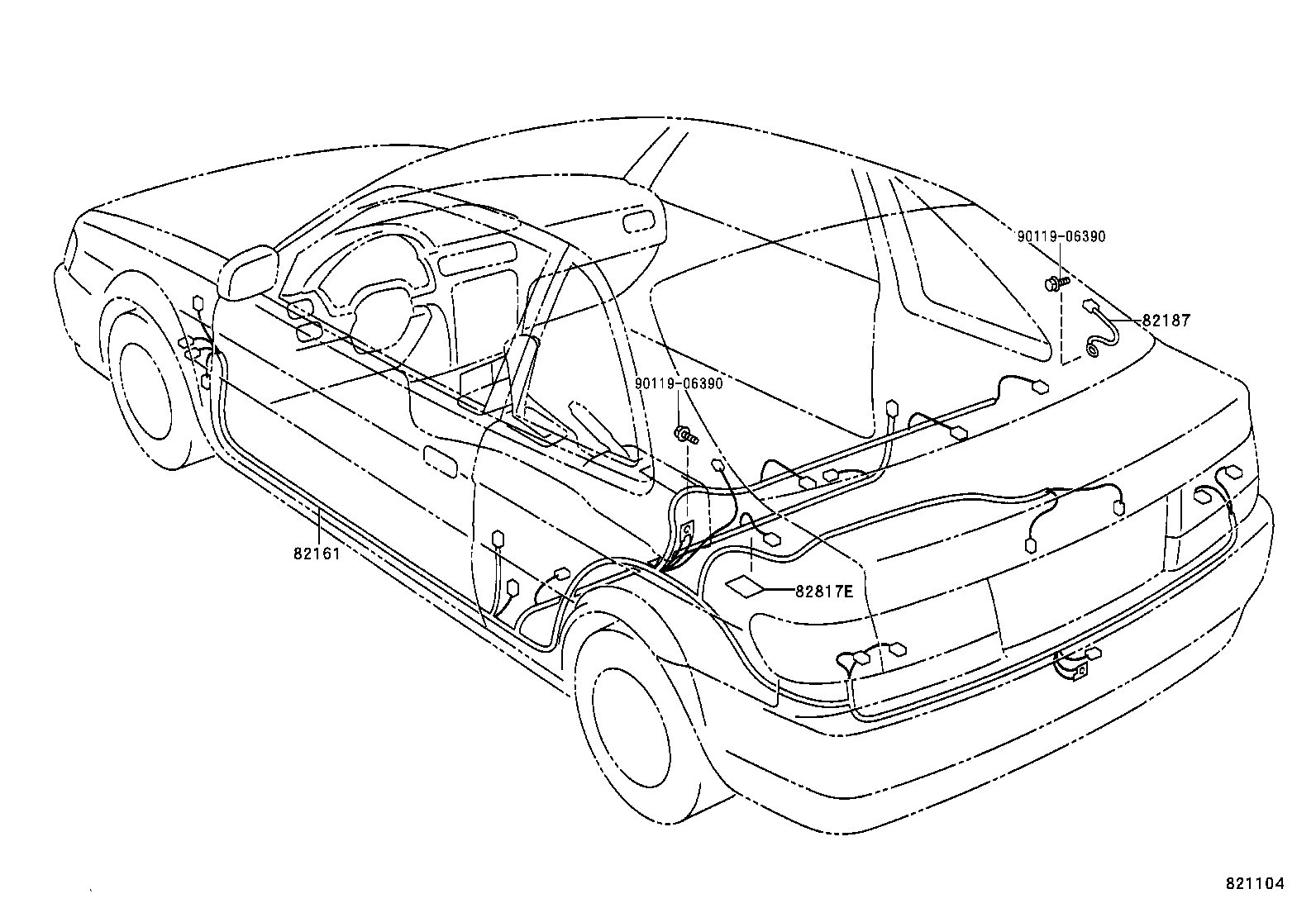

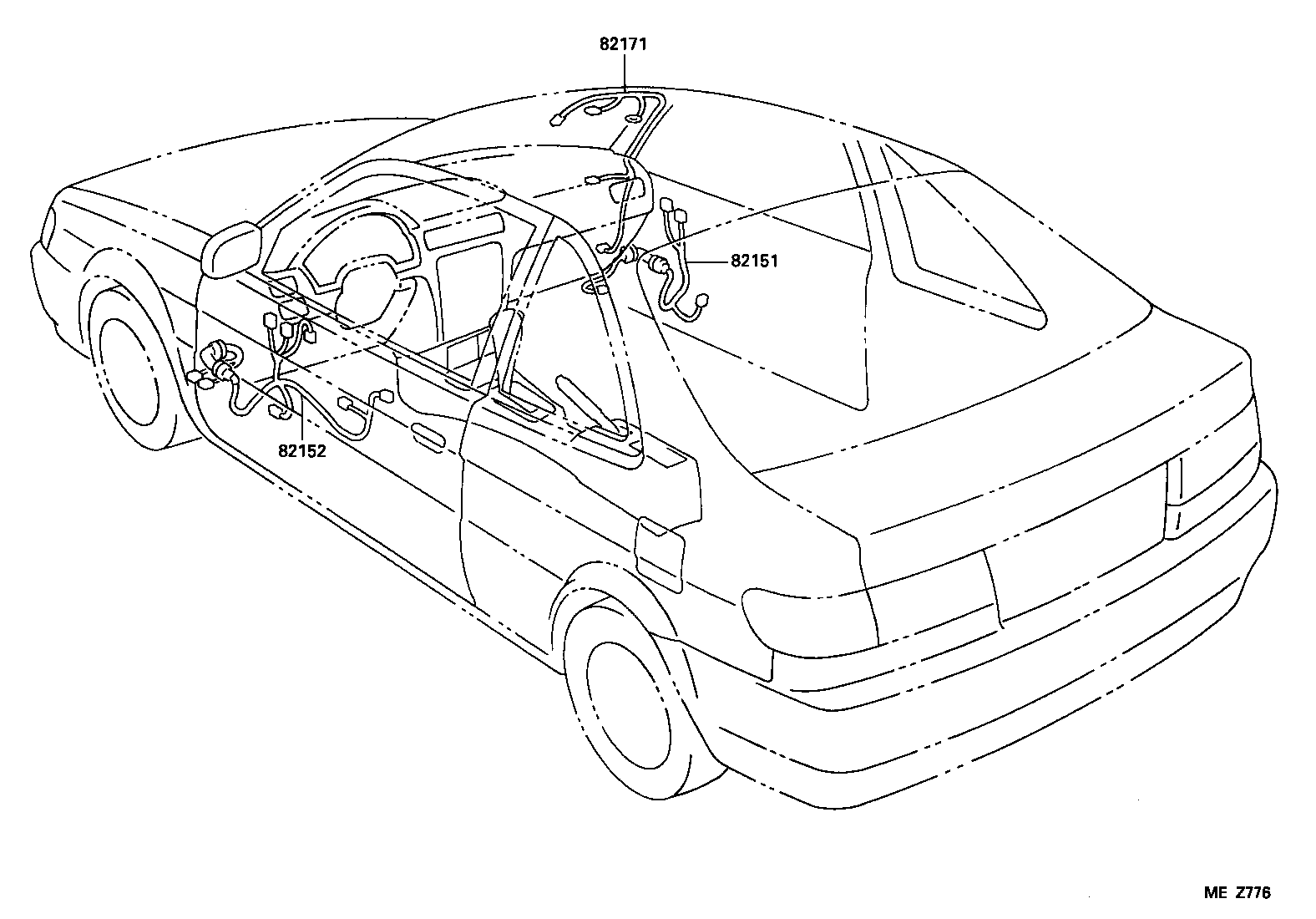

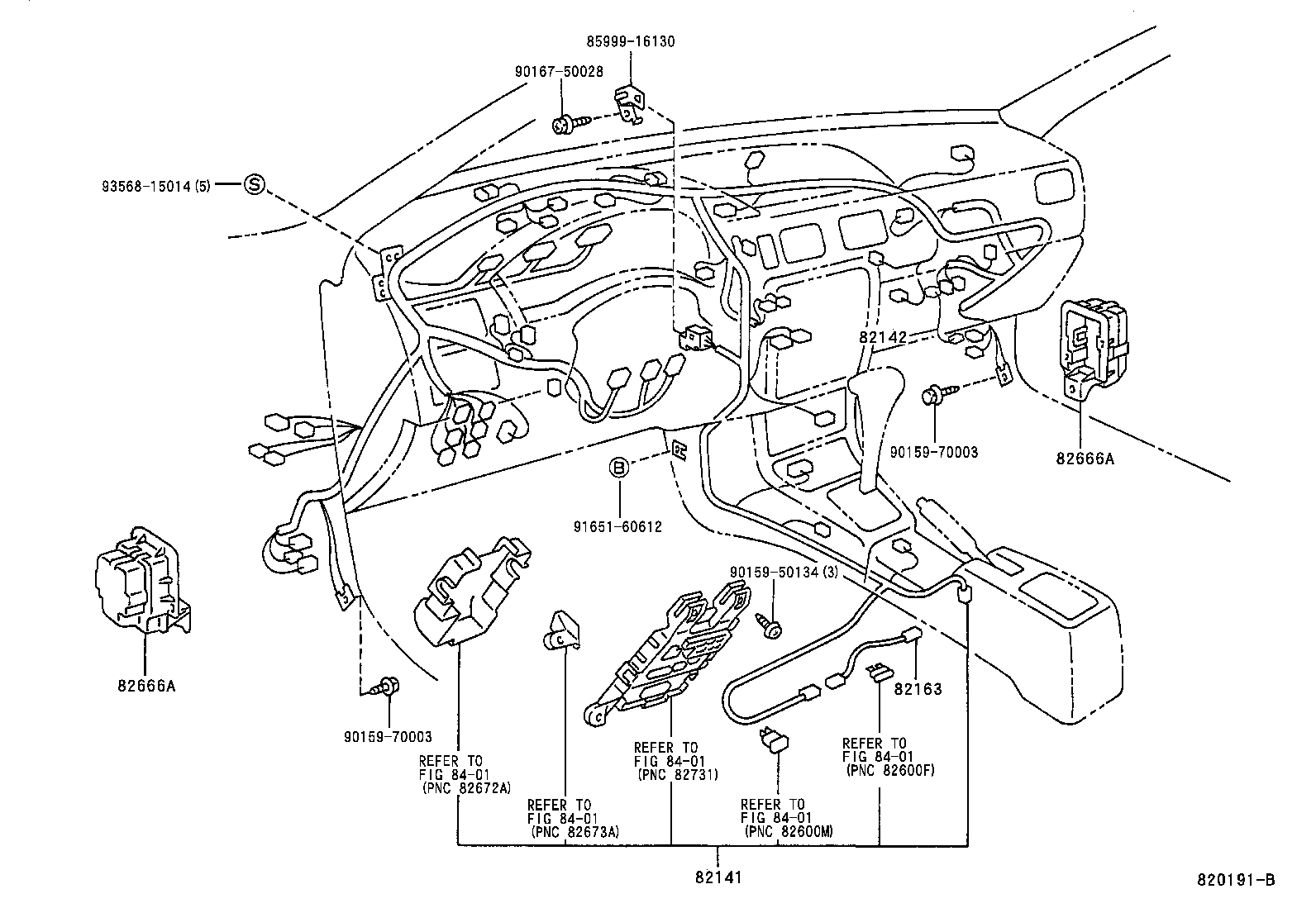

Figure 820727A 820727A 1995-08 → — Figure 821289A 821289A 1995-08 → — Figure 820191B 820191B 1995-08 → — Figure MEZ776 MEZ776 1995-08 → — Figure 821104 821104 1995-08 → — Figure 821105 821105 1996-09 → — Figure MEZ778 MEZ778 1995-08 → — Figure 820377D 820377D 1995-08 → — Figure 821197 821197 1995-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82620 Block Assy, Fusible Link
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82817E Protector, Wiring Harness, NO.6
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
