Toyota Paseo

1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

13 part groups · 3 illustrations

Illustrations

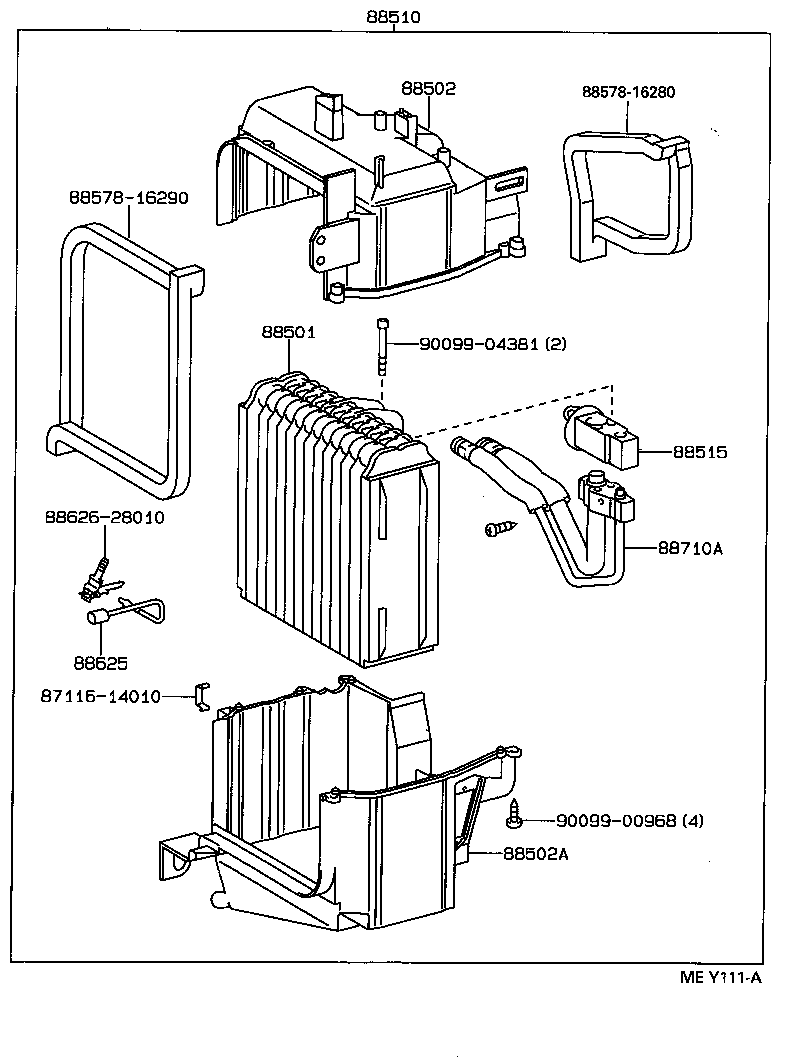

Figure 870261A 870261A 1995-08 → — Figure MEY111A MEY111A 1995-08 → — Figure MEZ484 MEZ484 1995-08 → —

Part groups

PNCDescription
82600H Fuse, Fuse Block
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
