Toyota Paseo

1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 11 illustrations

Illustrations

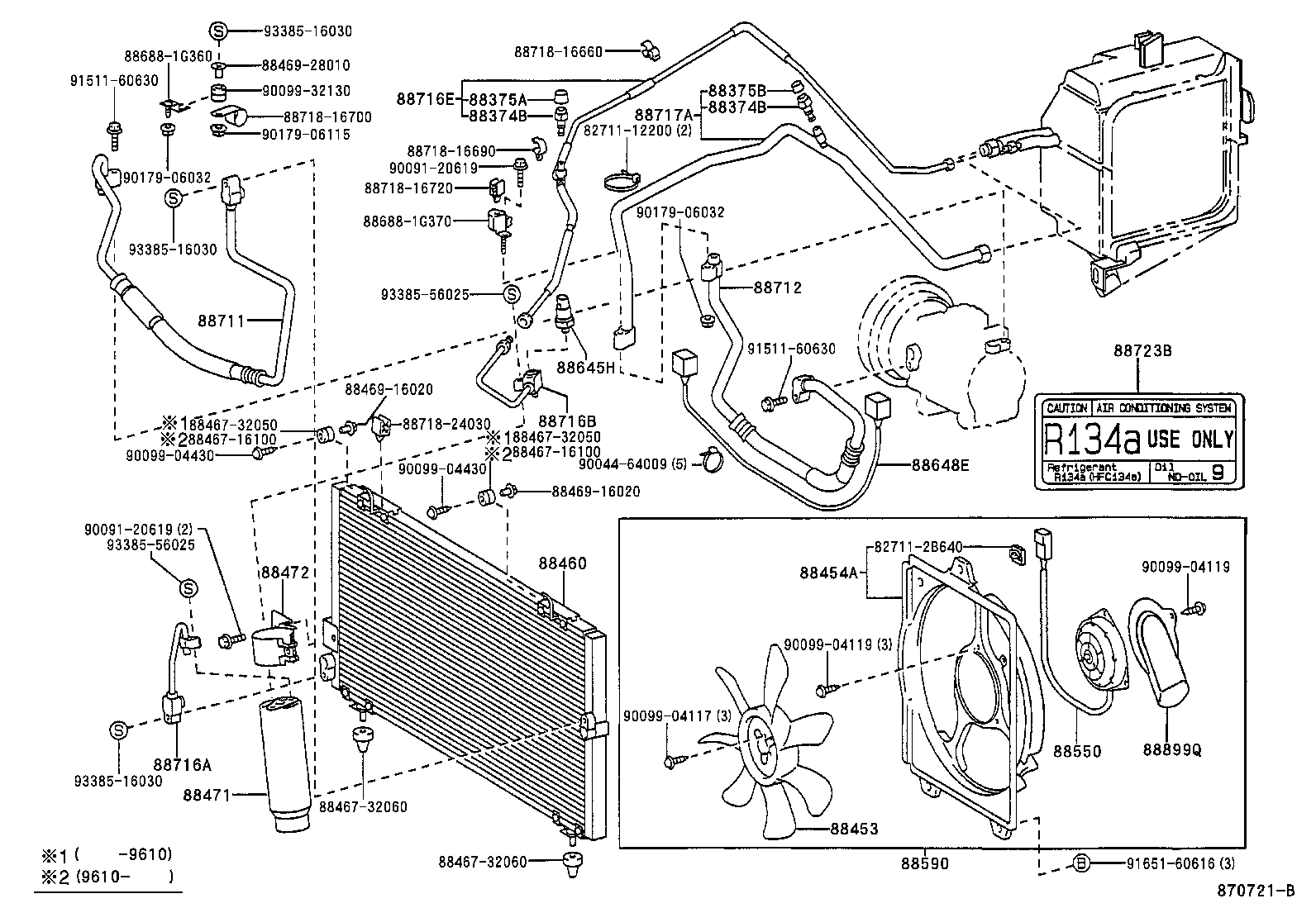

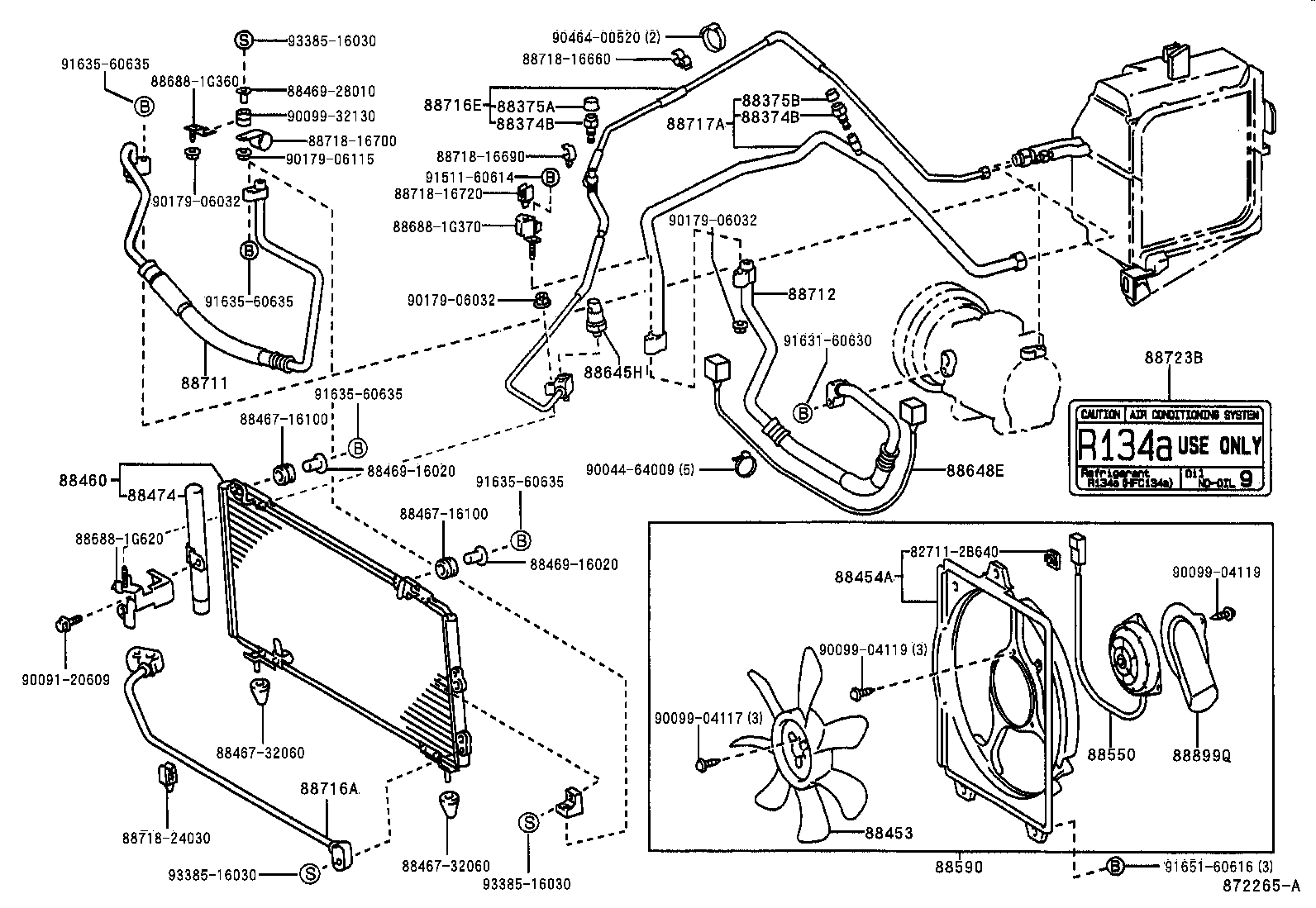

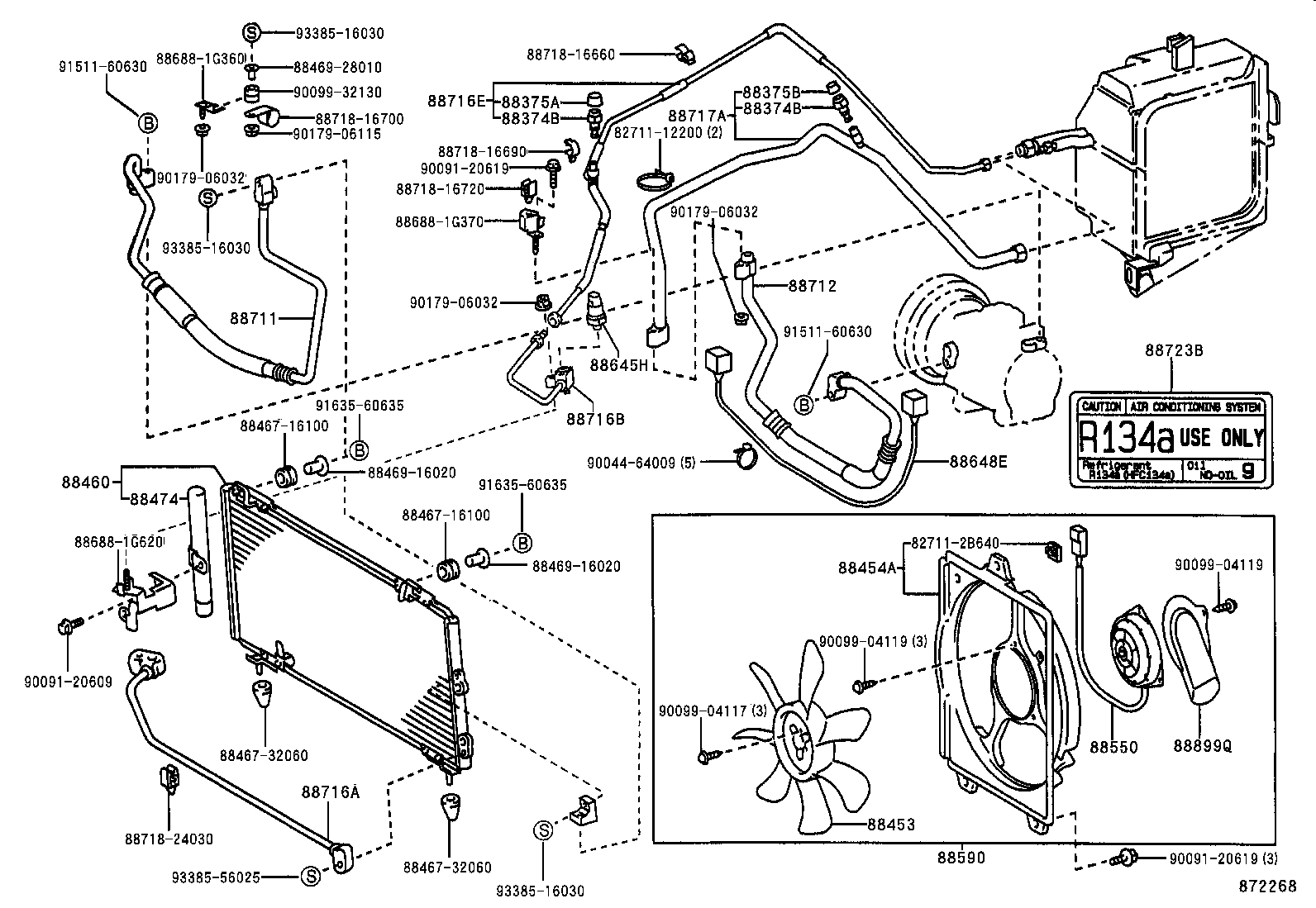

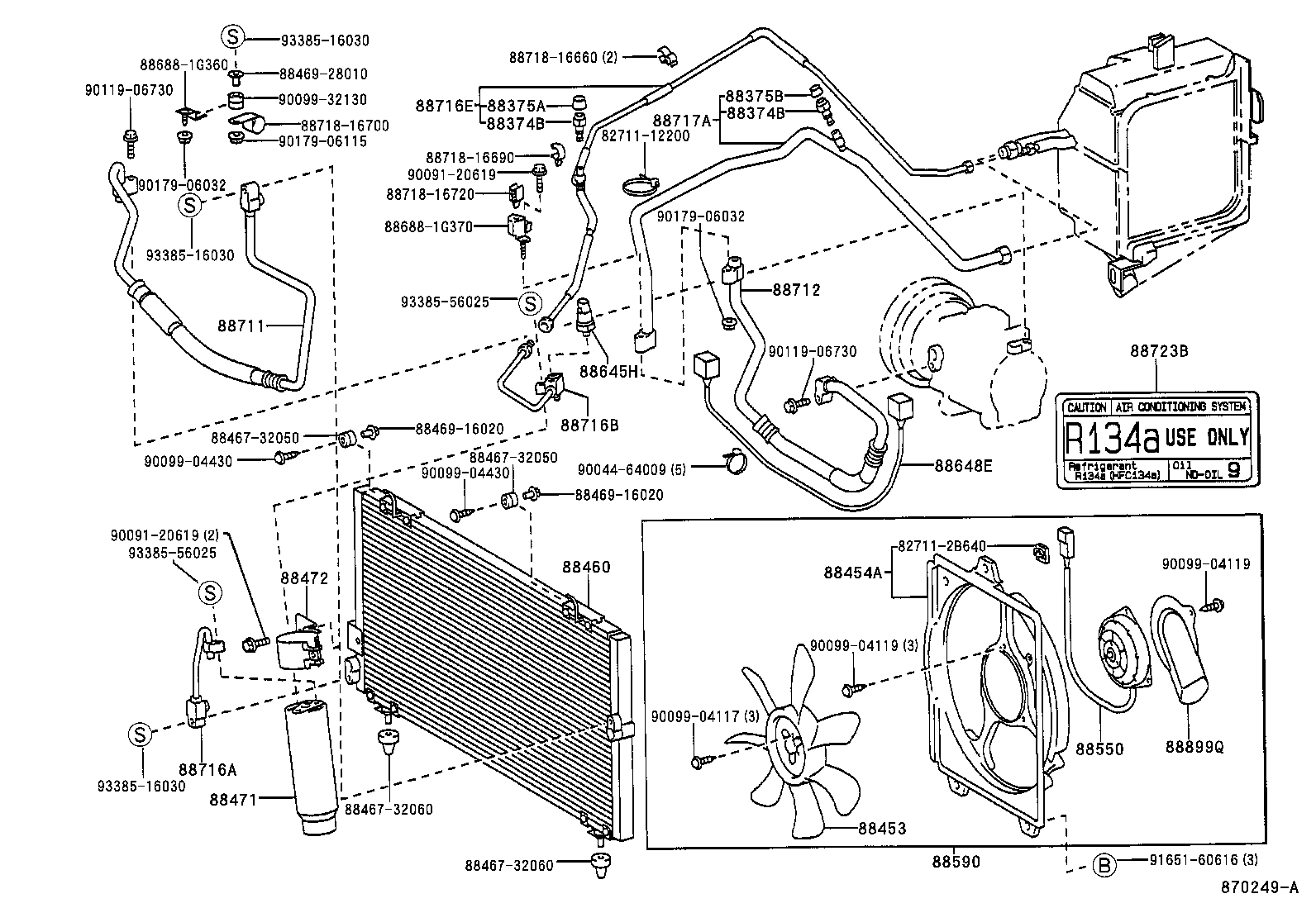

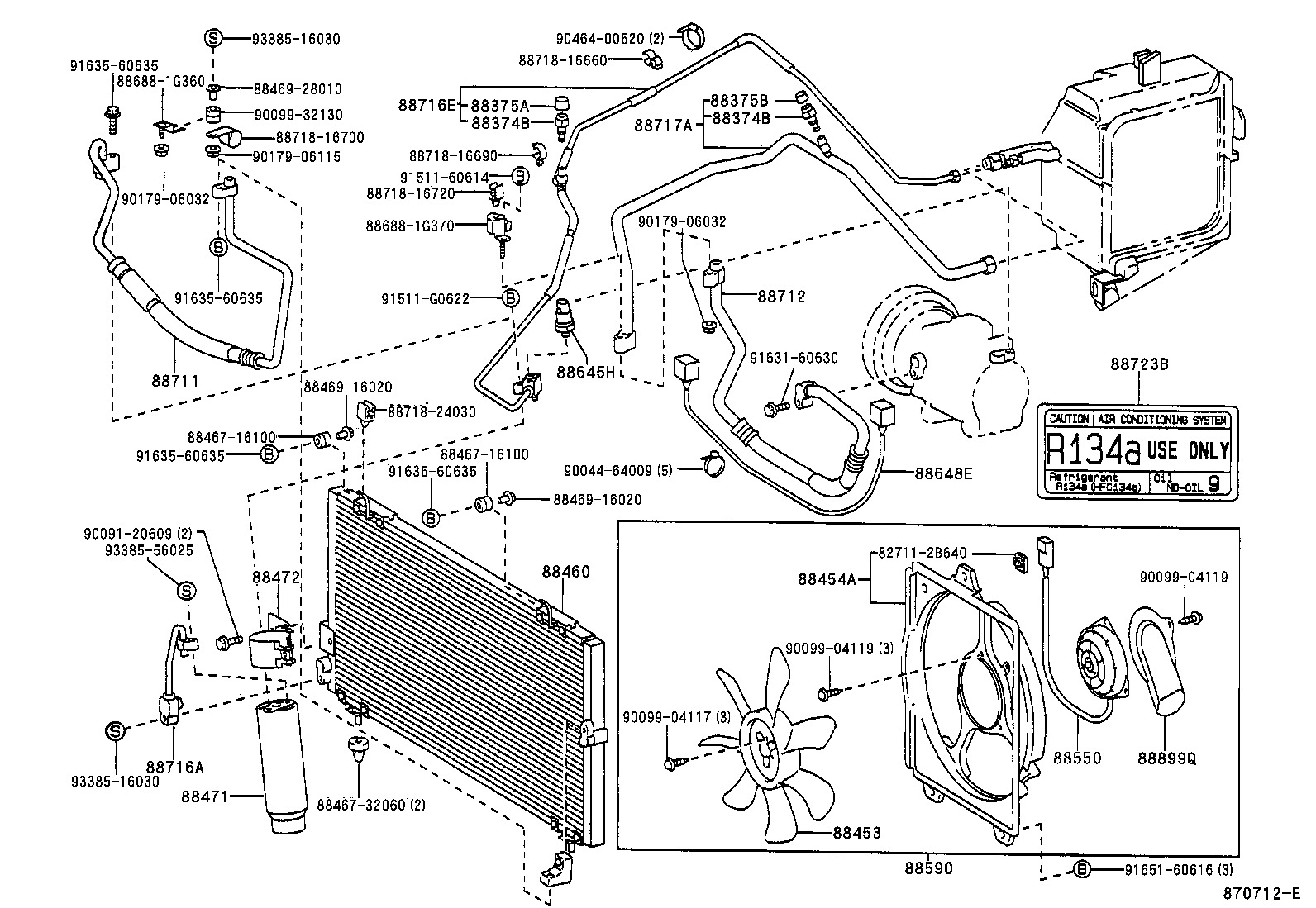

Figure 870247B 870247B 1995-08 → 1996-08 Figure 870712E 870712E 1996-08 → 1997-12 Figure 870712E 870712E 1996-09 → 1998-02 Figure 872265A 872265A 1997-12 → — Figure 872265A 872265A 1998-02 → — Figure 870249A 870249A 1995-08 → 1996-08 Figure 870721B 870721B 1996-08 → 1997-12 Figure 870721B 870721B 1996-09 → 1998-02 Figure 872268 872268 1997-12 → — Figure 872268 872268 1998-02 → — Figure MEZ484 MEZ484 1995-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
