Toyota Paseo
1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · Europe
Discontinued model
Data version 2000-02

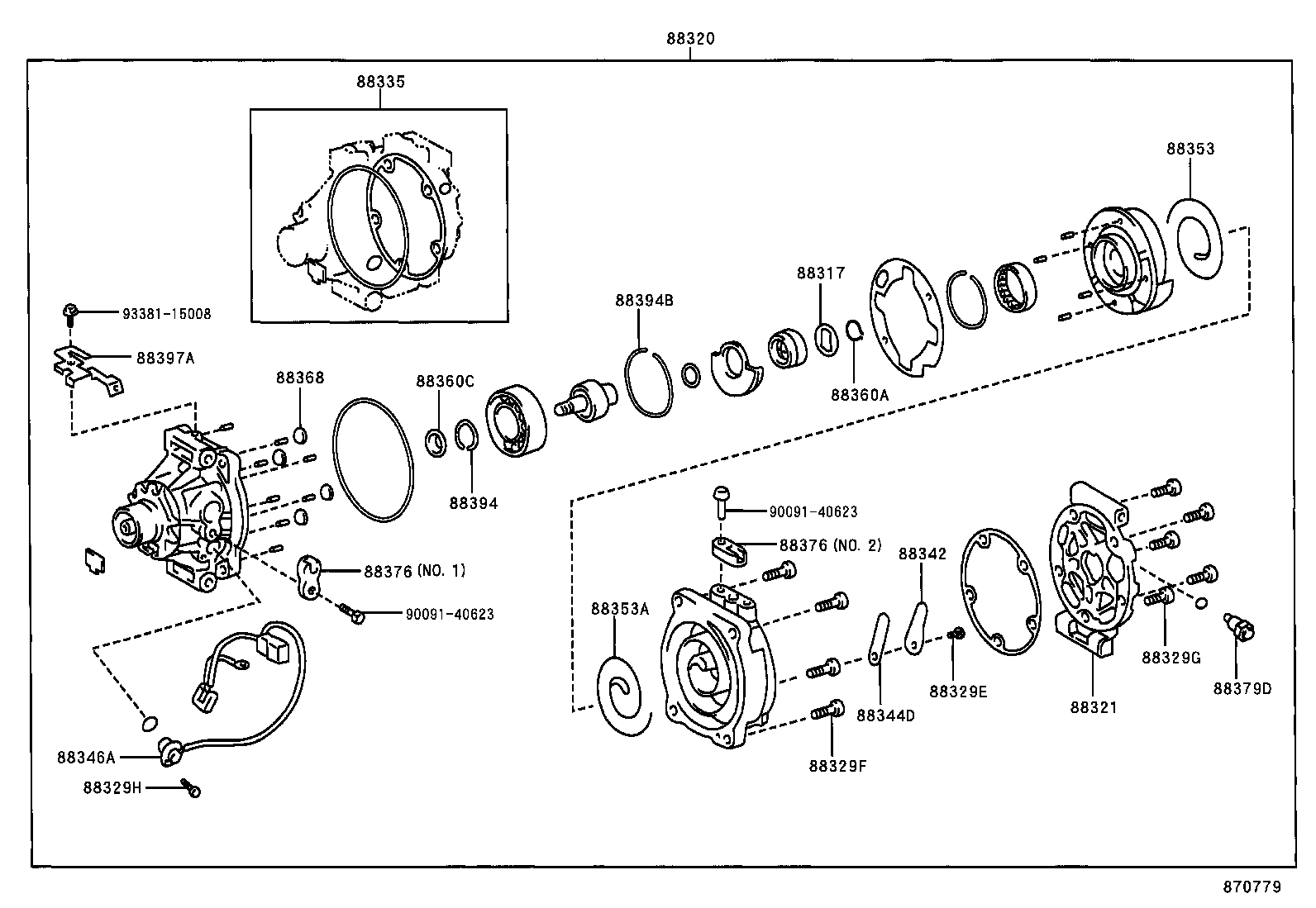

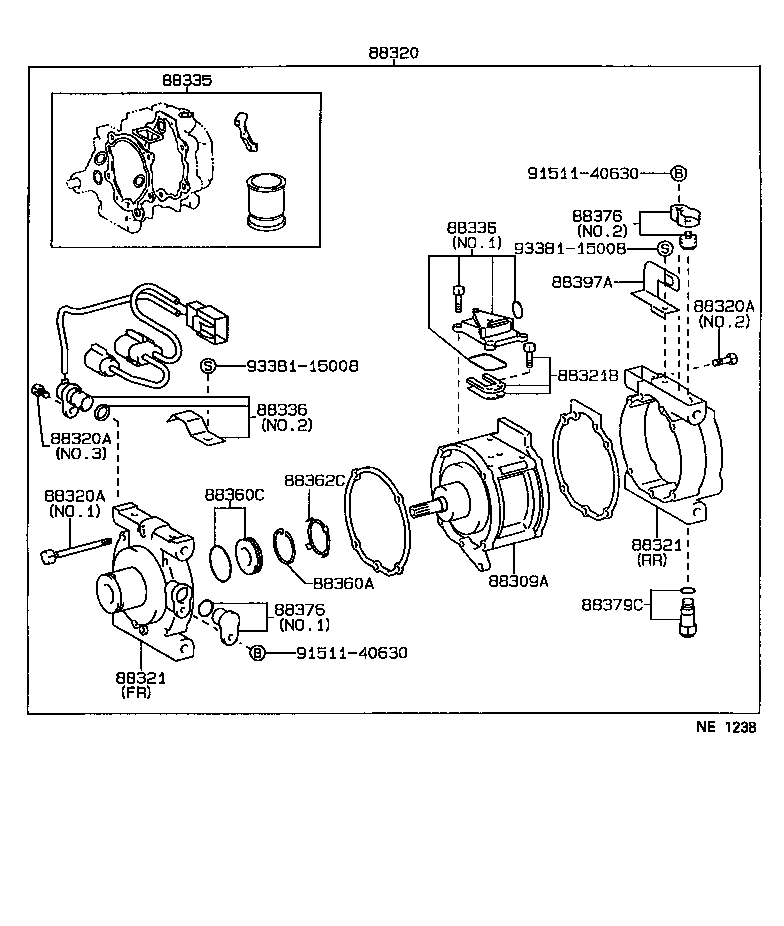

Heating & Air Conditioning - Compressor
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88309A | Pump Sub-assy, Compressor |
| 88317 | Spacer, Cooler Compressor |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321B | Reed Sub-assy, Valve |
| 88329E | Bolt, Compressor, NO.1 |
| 88329F | Bolt, Compressor, NO.2 |
| 88329G | Bolt, Compressor, NO.3 |
| 88329H | Bolt, Compressor, NO.4 |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88336 | Sensor, Compressor |
| 88342 | Plate, Compressor Valve, RR |
| 88344D | Reed, Discharge Valve |
| 88346A | Sensor, Compressor Pick UP |
| 88353 | Seal, Compressor Tip, NO.1 |
| 88353A | Seal, Compressor Tip, NO.2 |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88362C | Plate, Pulse |
| 88368 | Retanier, Compressor Bearing |
| 88376 | Cap, Blind |
| 88379C | Valve, Pressure Relief |
| 88379D | Valve, Pressure Relief |
| 88394 | Spring, Compressor |
| 88394B | Spring, Compressor |
| 88397A | Clip, Compressor |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
