Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

32 part groups · 22 illustrations

Illustrations

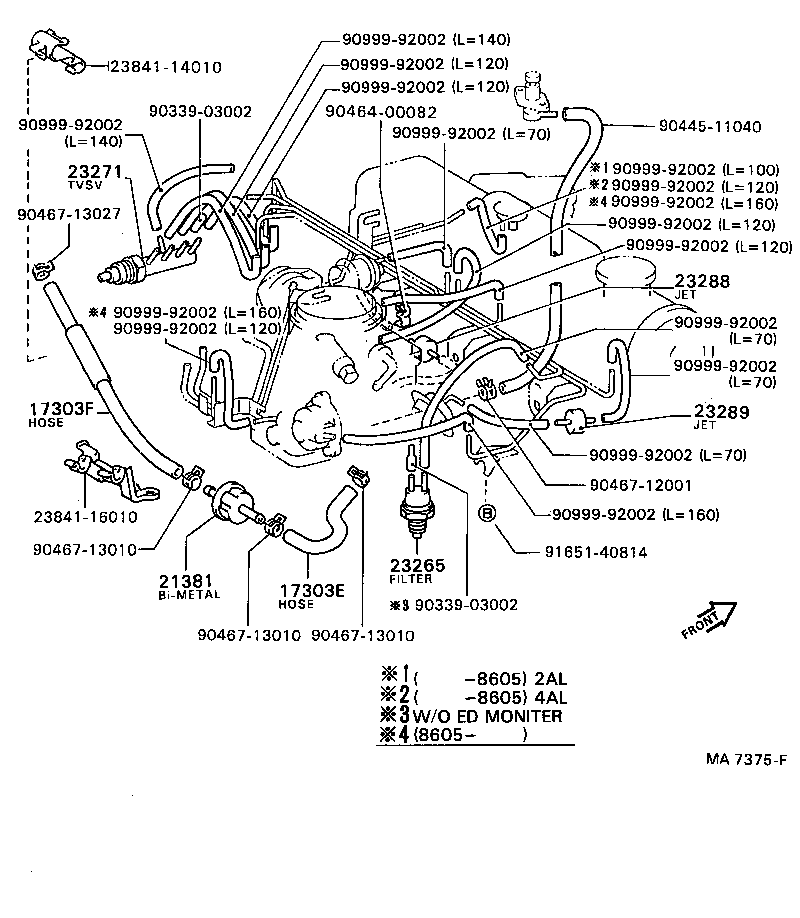

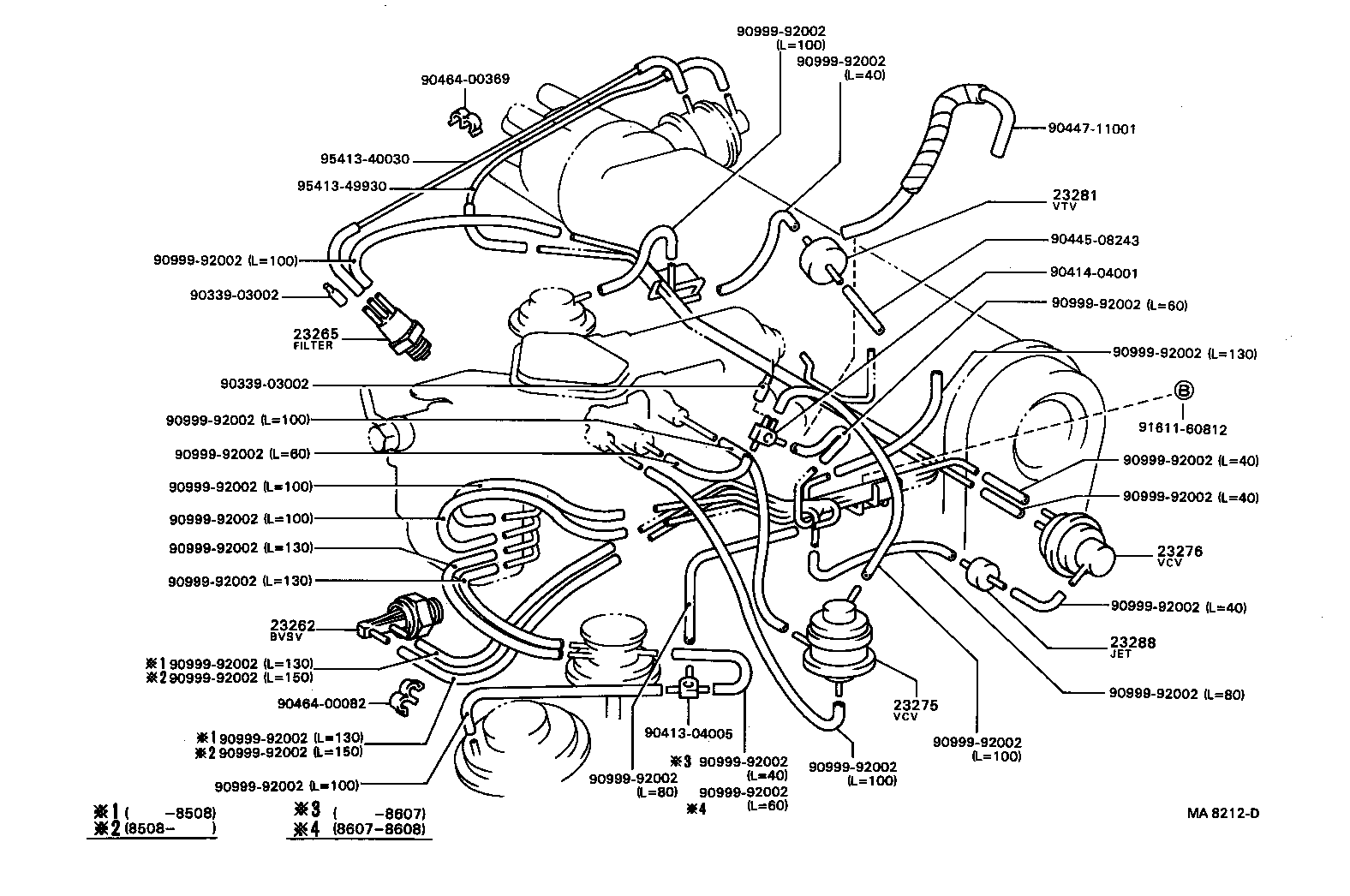

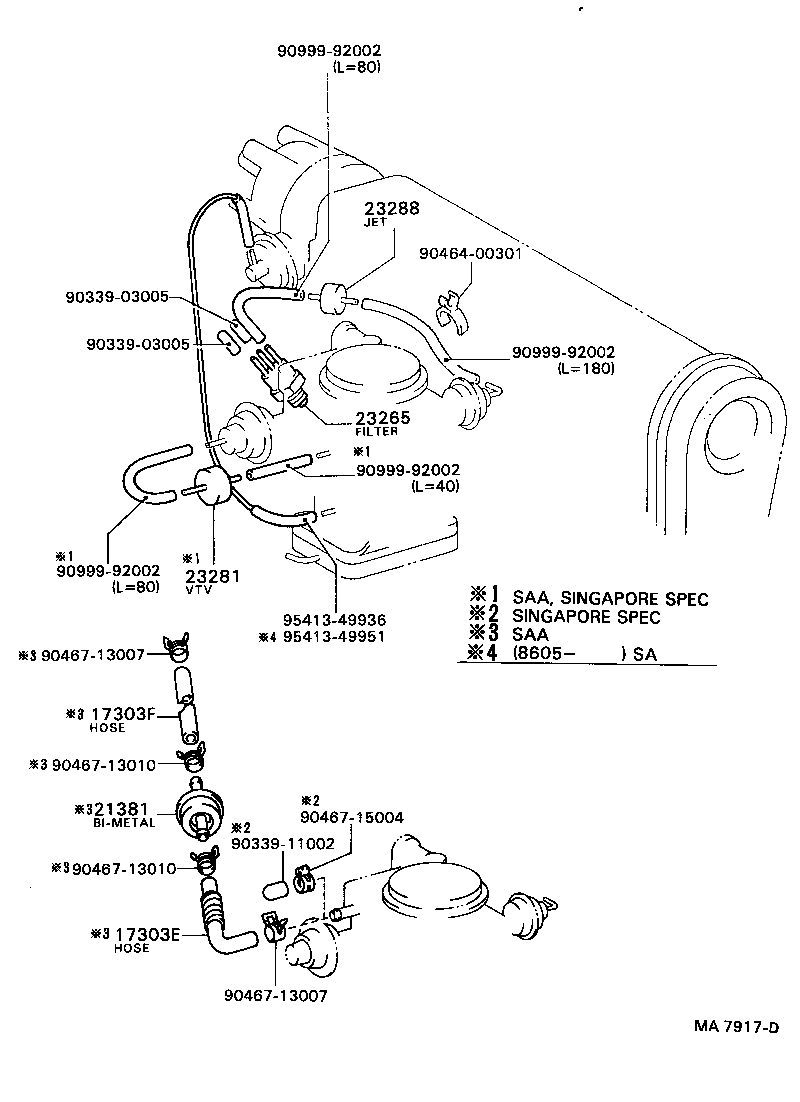

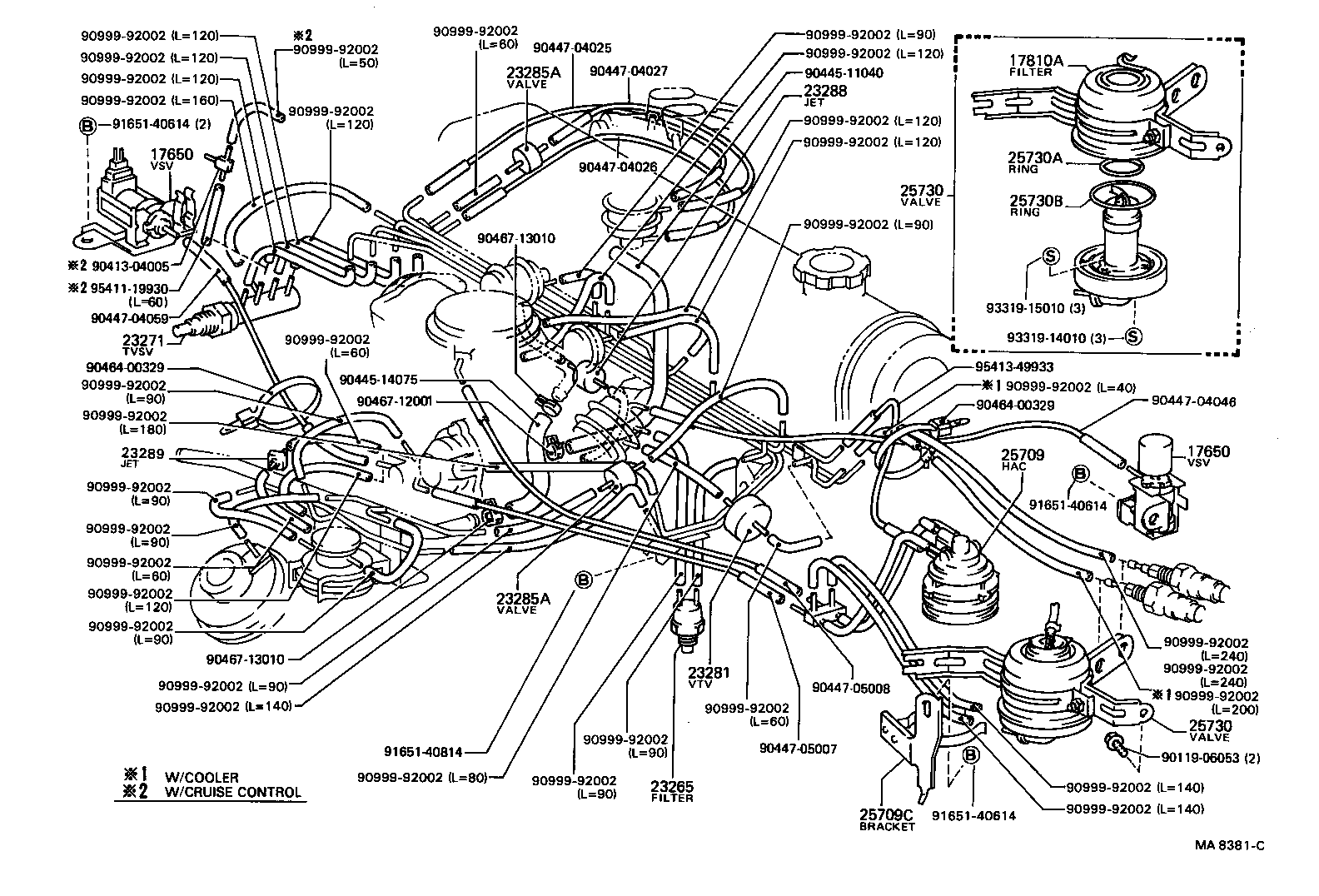

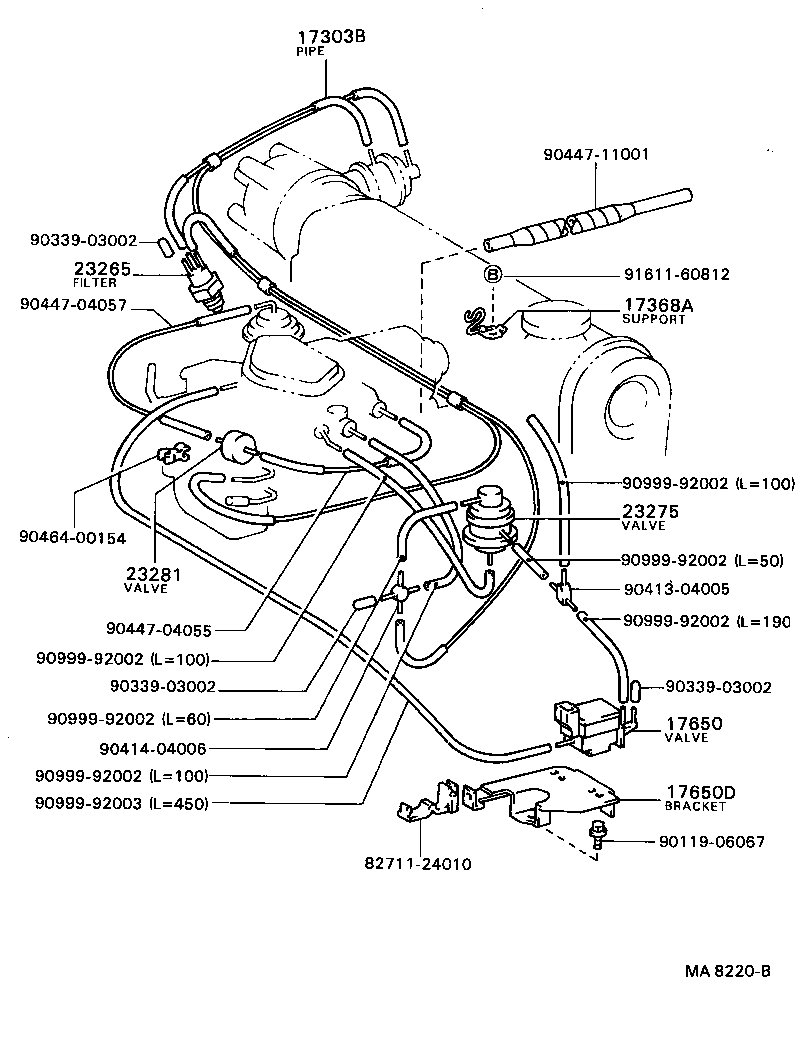

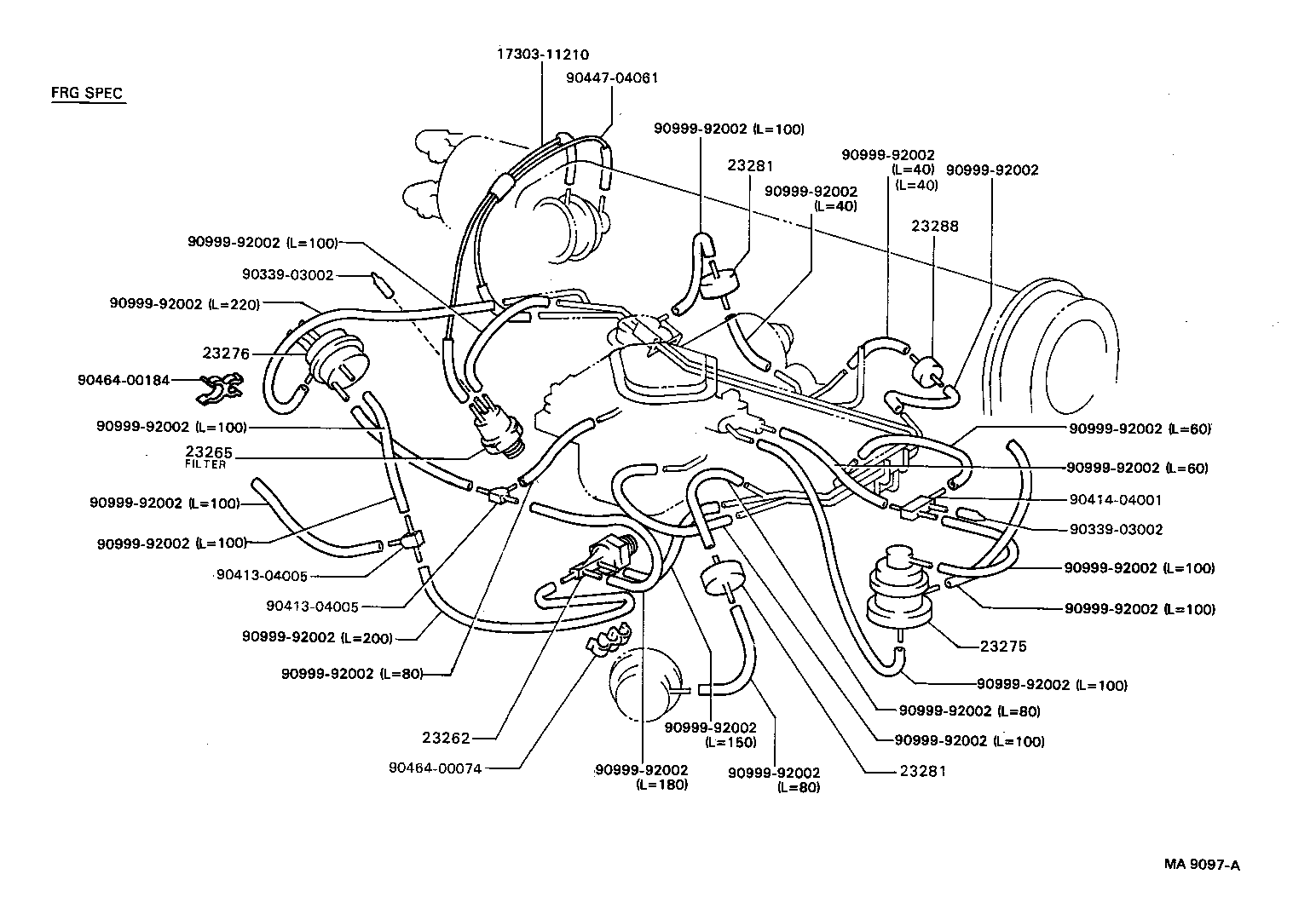

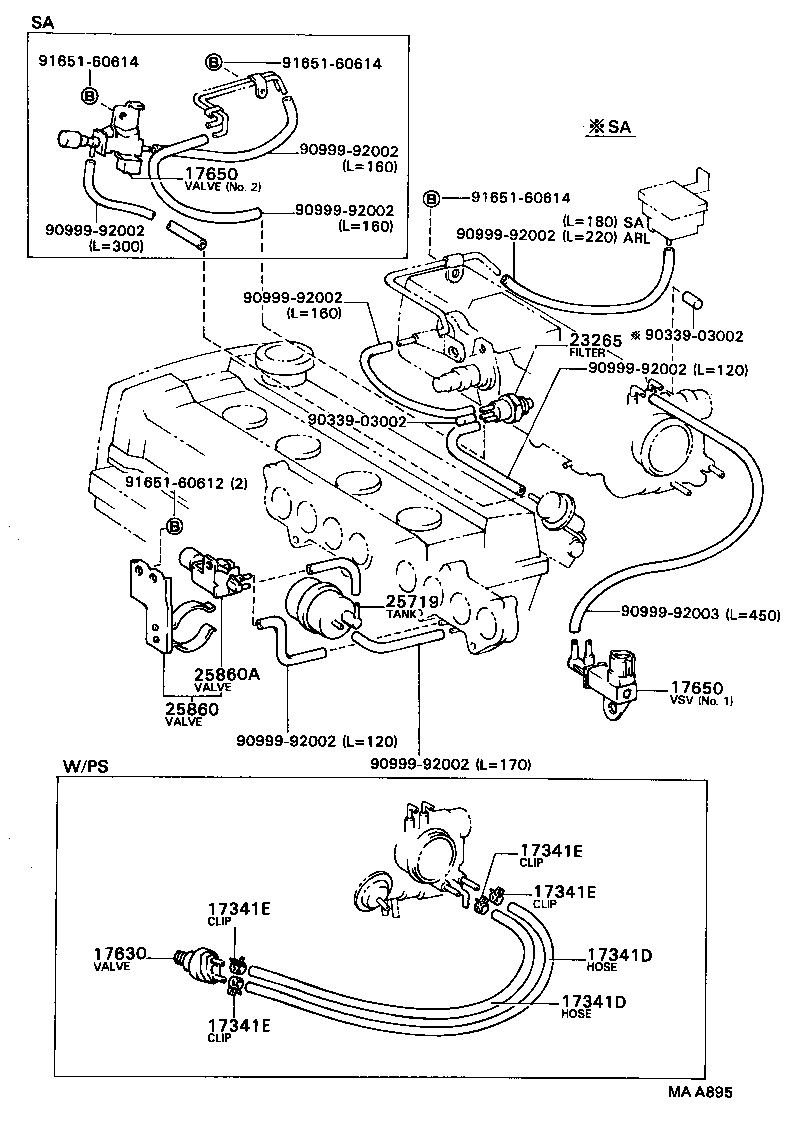

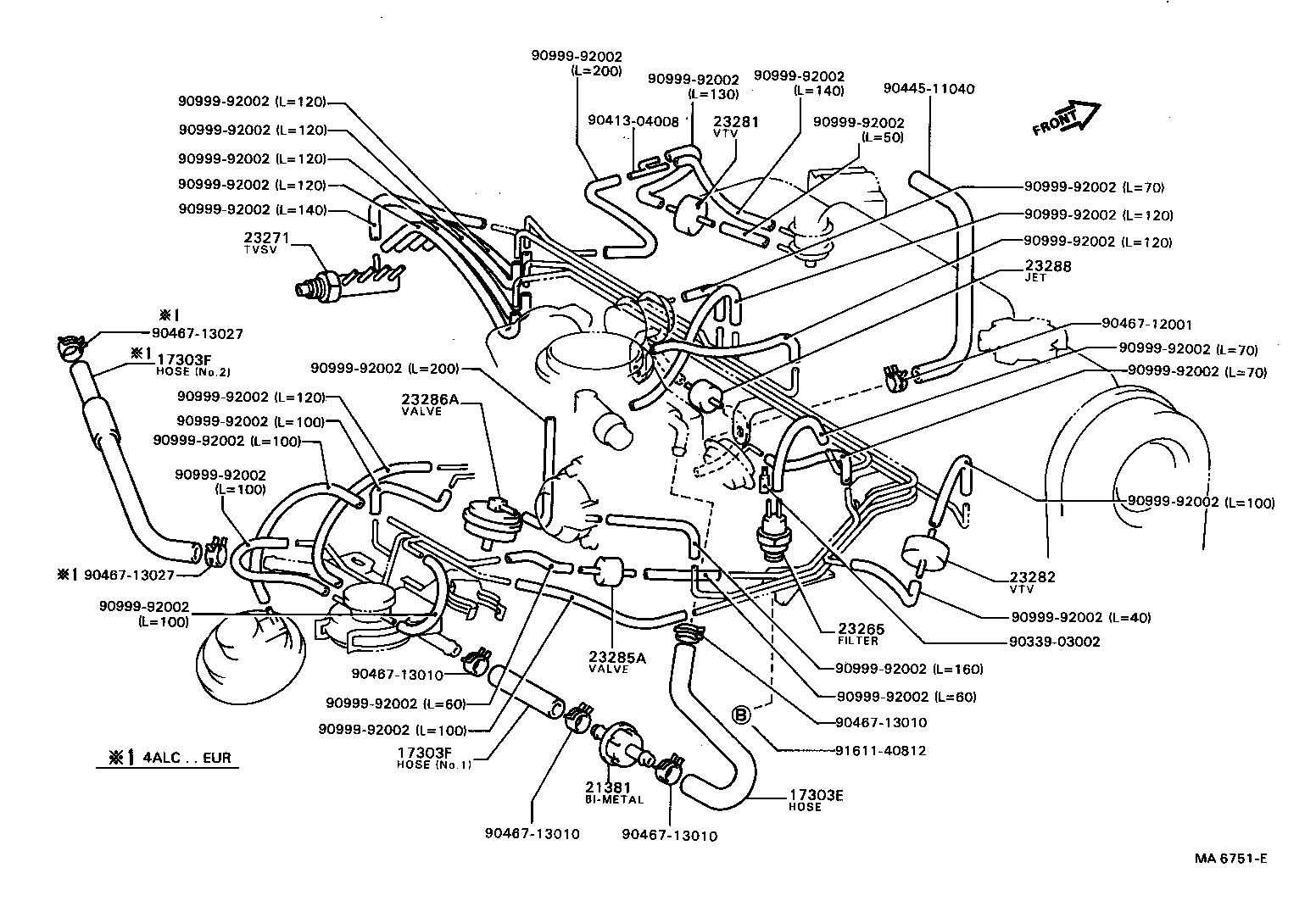

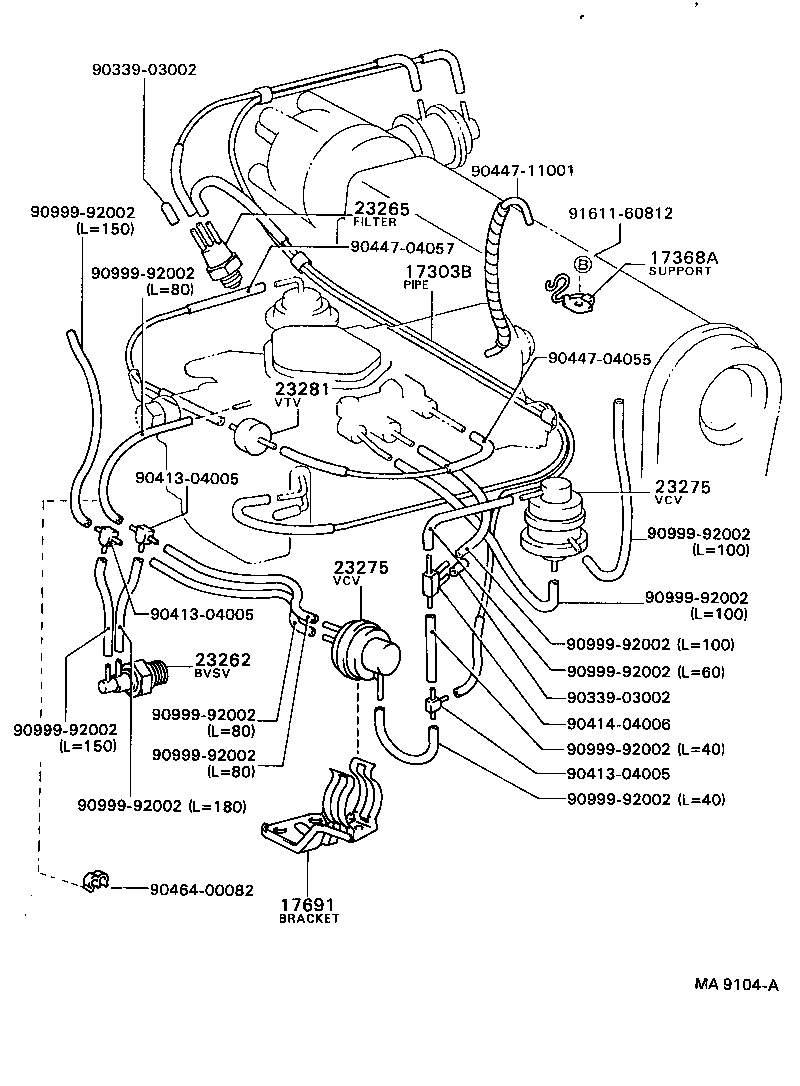

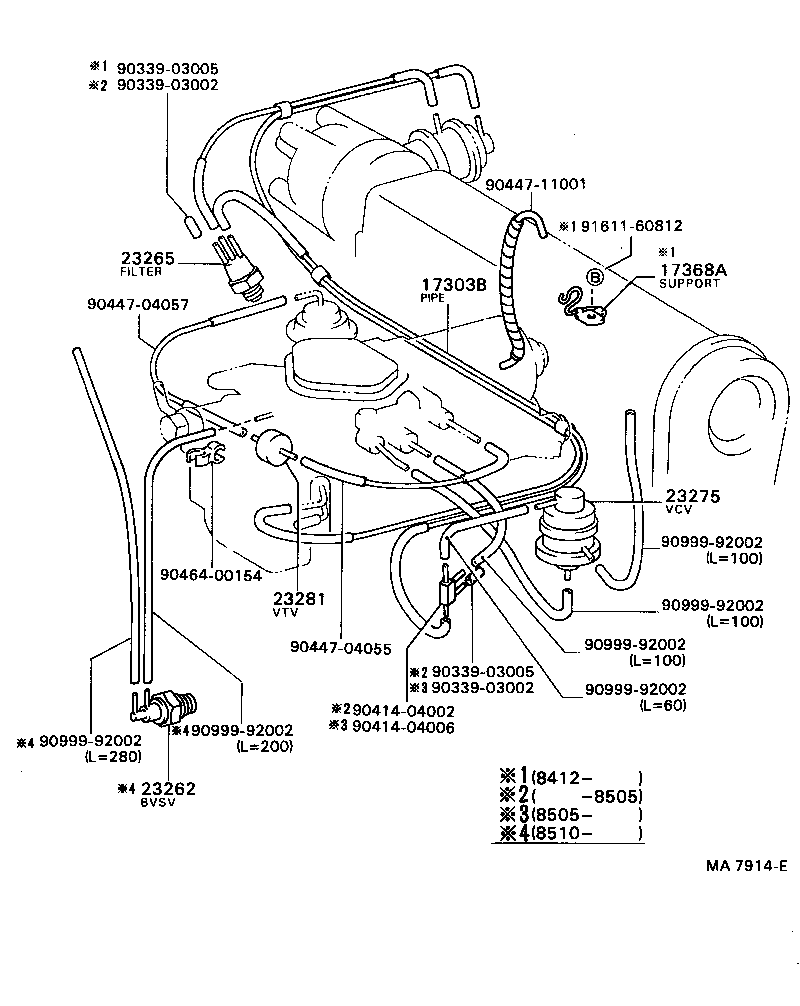

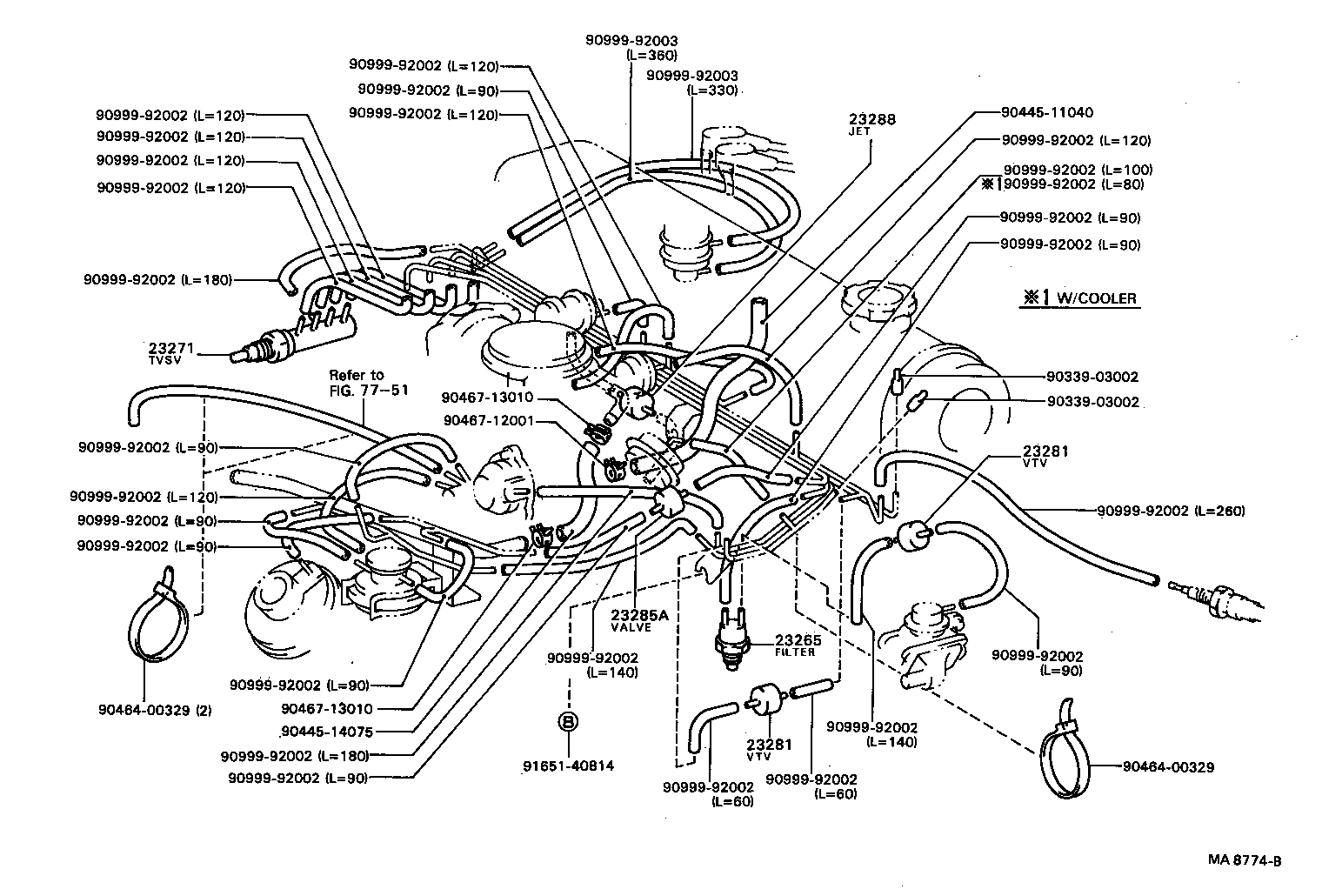

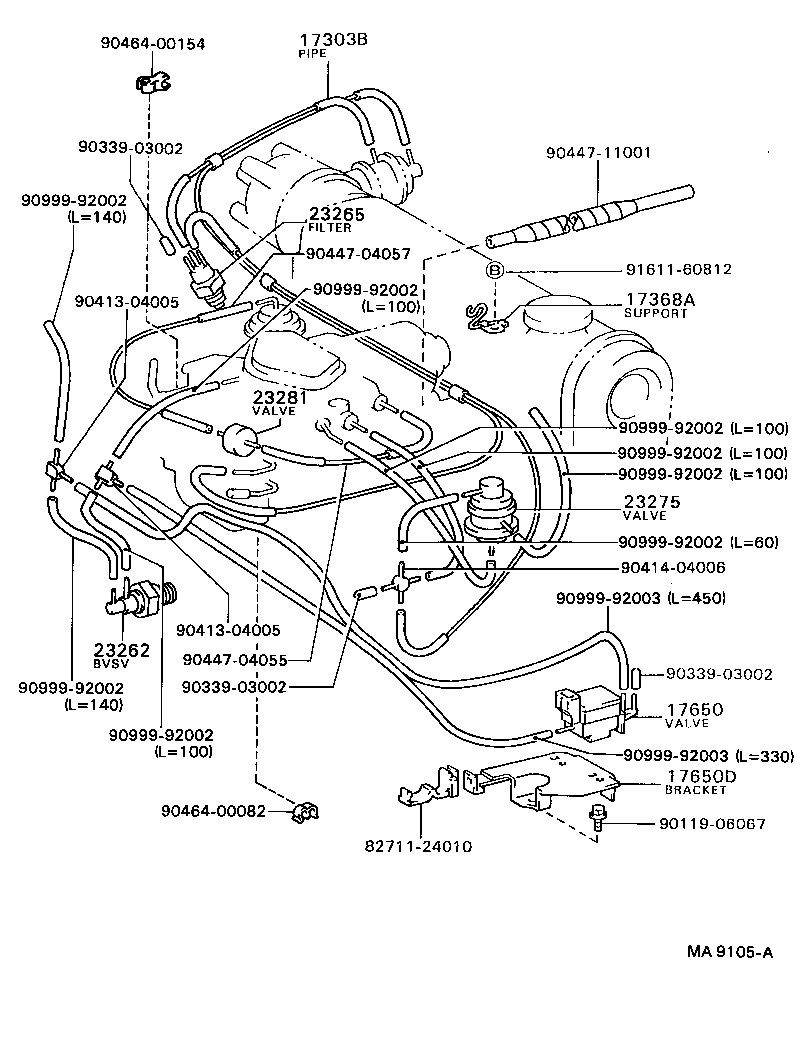

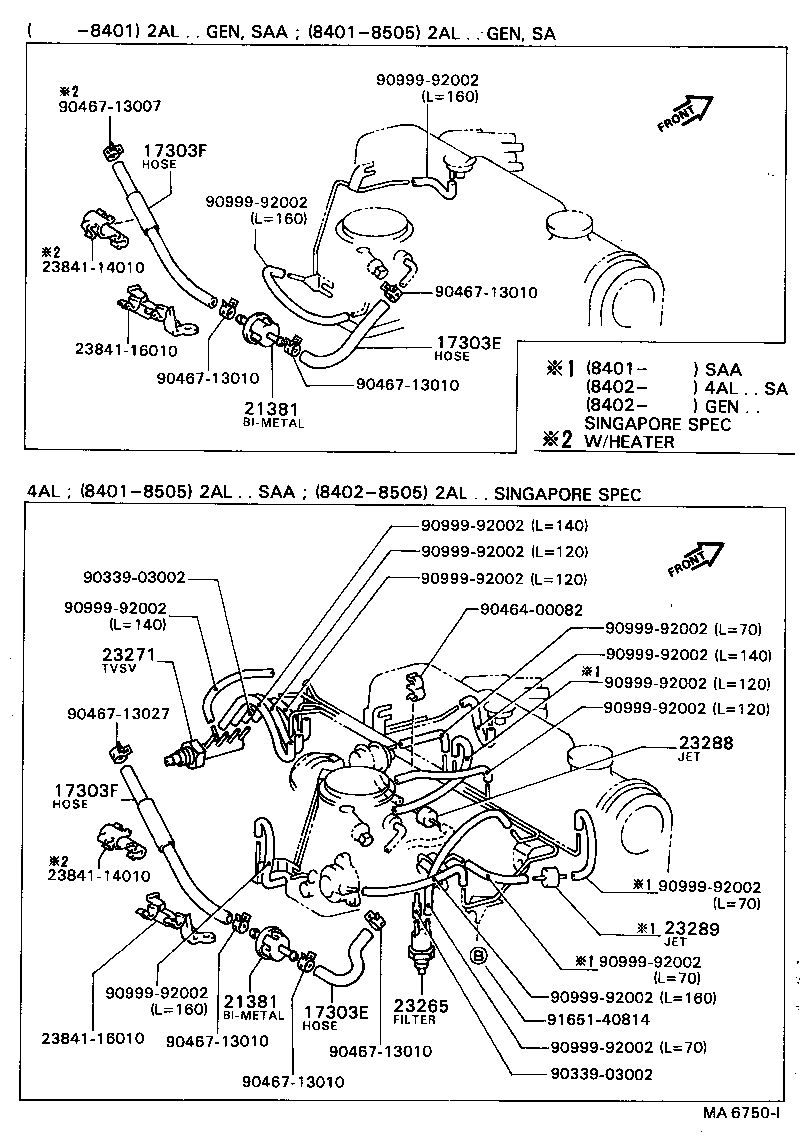

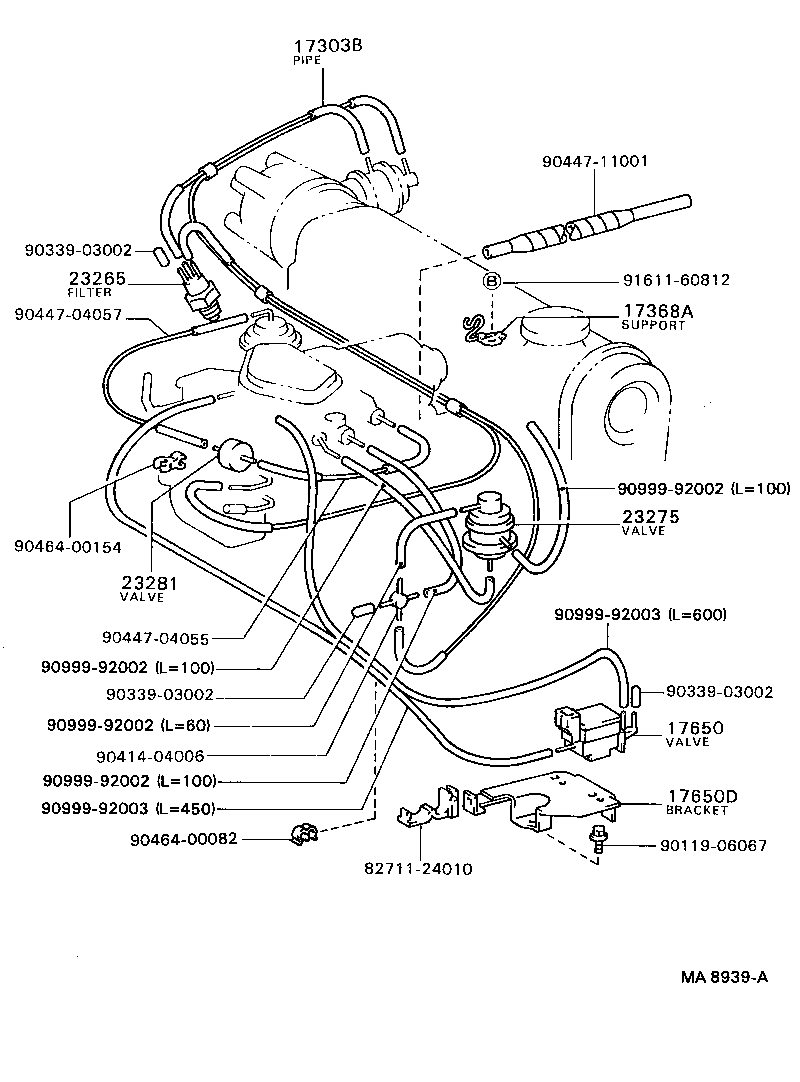

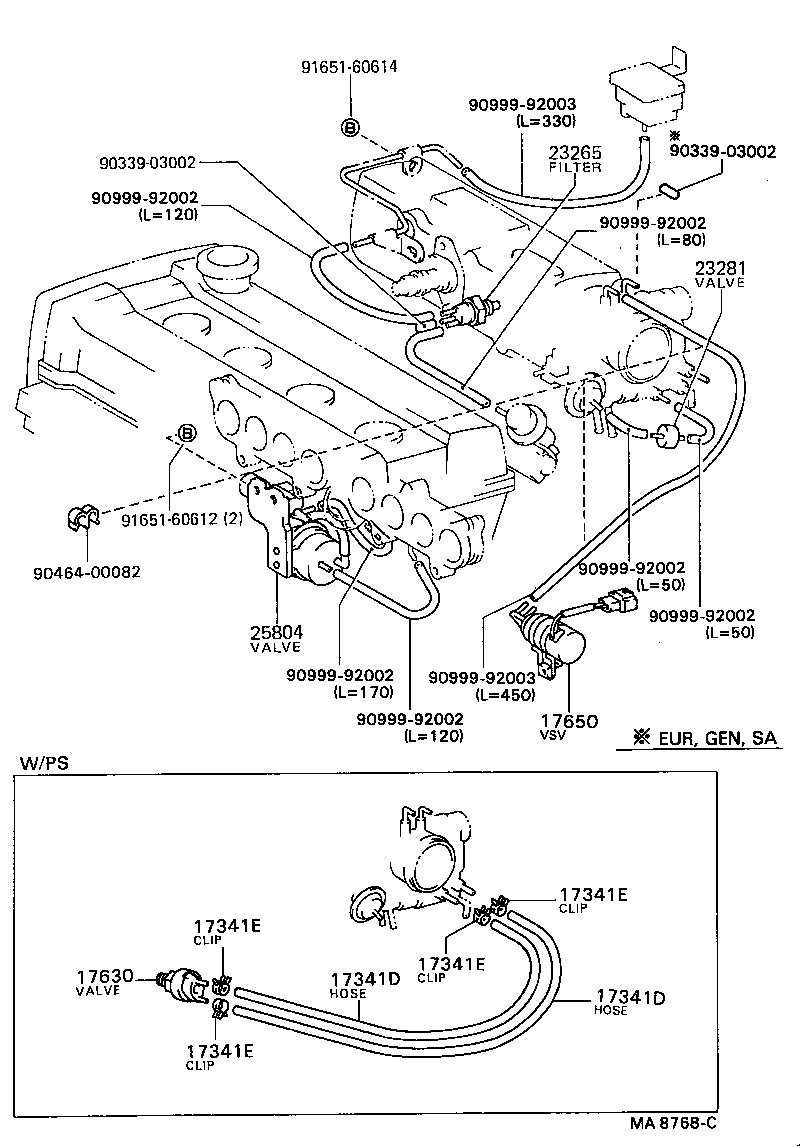

Figure MA9504B MA9504B 1983-05 → — Figure MA6750I MA6750I 1983-05 → — Figure MA7375F MA7375F 1983-05 → — Figure MA7375F MA7375F 1985-09 → — Figure MA6751E MA6751E 1983-05 → 1985-11 Figure MA6751E MA6751E 1985-11 → — Figure MA8774B MA8774B 1985-11 → — Figure MA8381C MA8381C 1985-04 → 1985-05 Figure MA8381C MA8381C 1985-08 → — Figure MA8768C MA8768C 1984-10 → 1987-08 Figure MAA895 MAA895 1987-08 → — Figure MA9504B MA9504B 1983-05 → — Figure MA7917D MA7917D 1984-10 → — Figure MA7914E MA7914E 1984-10 → 1985-05 Figure MA7914E MA7914E 1985-05 → 1986-05 Figure MA9104A MA9104A 1986-05 → — Figure MA8220B MA8220B 1985-05 → 1985-11 Figure MA8939A MA8939A 1985-11 → 1986-05 Figure MA9105A MA9105A 1986-05 → — Figure MA8212D MA8212D 1985-05 → 1986-08 Figure MA9126D MA9126D 1986-05 → — Figure MA9097A MA9097A 1986-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17368A Support, Air Tube
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17691 Bracket, Vacuum Control Valve, NO.1
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25709C Bracket, High Altitude Compensator
25719 Tank, Vacuum Surge
25730 Valve Assy, Electric Bleed Air Control
25730A Ring, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25730B Ring, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
