Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 5 illustrations

Illustrations

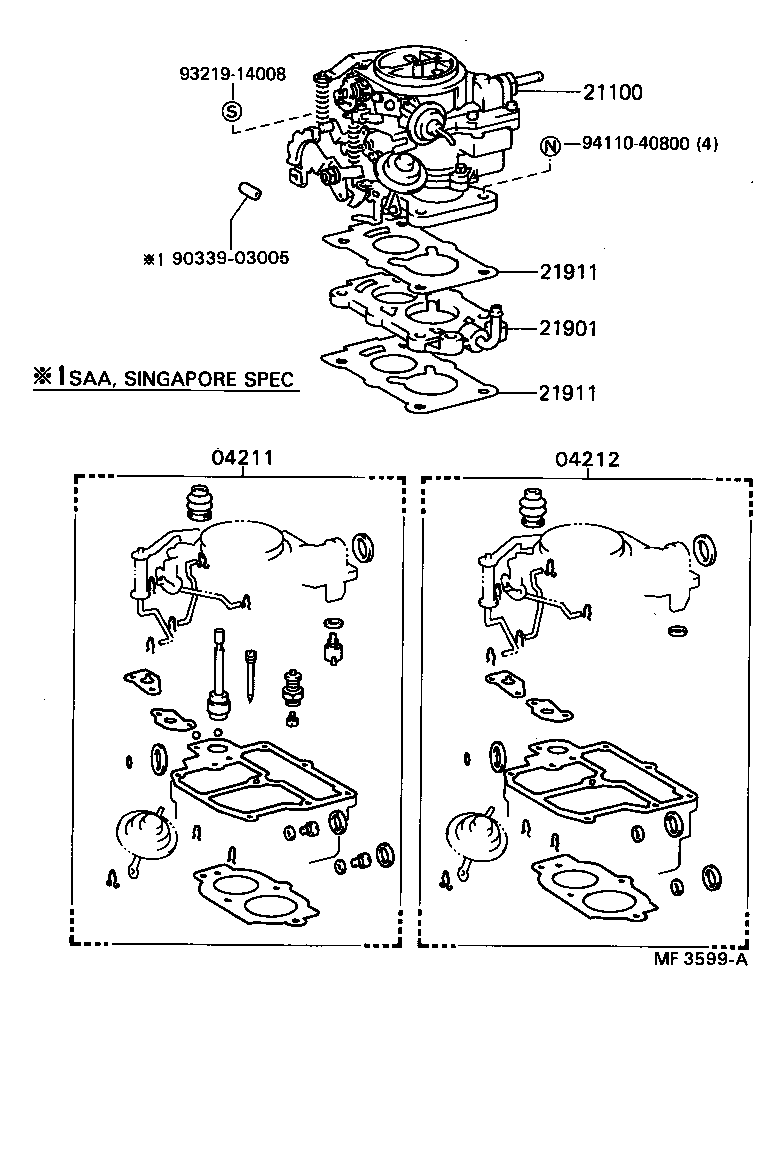

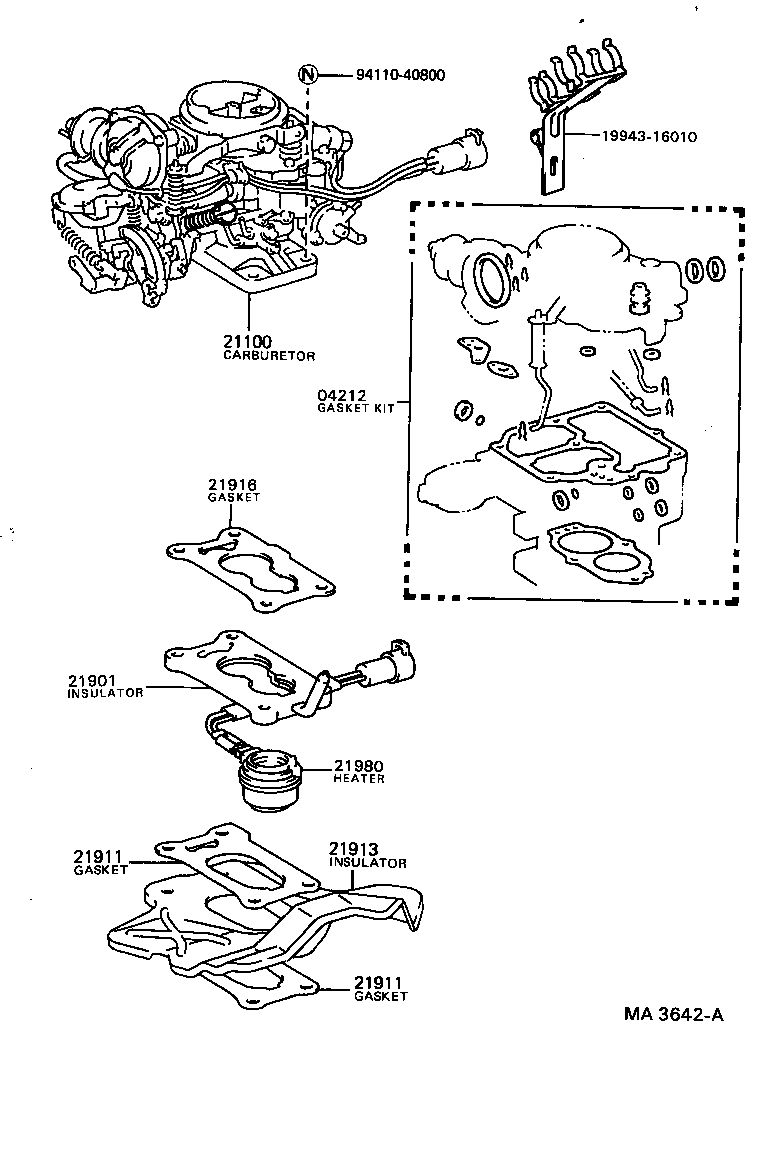

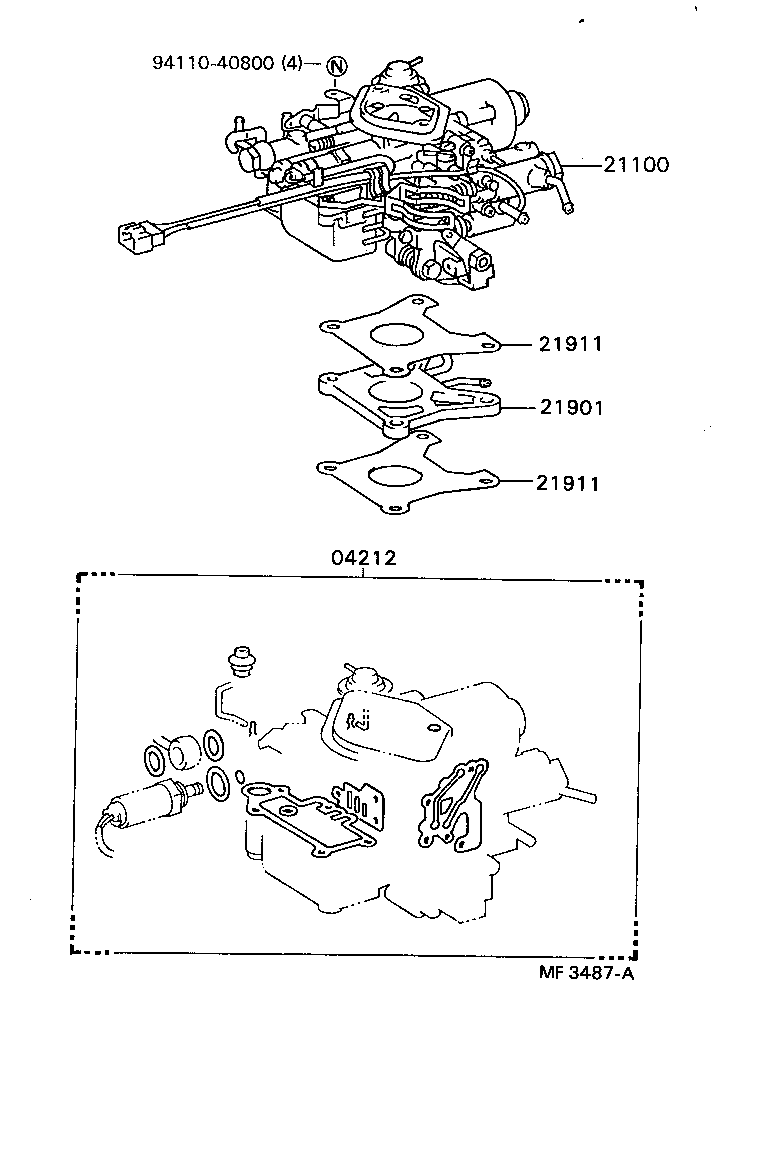

Figure MF3097F MF3097F 1983-05 → — Figure MA3642A MA3642A 1985-04 → 1985-05 Figure MA3642A MA3642A 1985-08 → — Figure MF3599A MF3599A 1984-10 → — Figure MF3487A MF3487A 1984-10 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
21980 Heater Assy, Cold Mixture
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
