Toyota Corolla Sed/LB
1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe
Discontinued model
Data version 1989-05

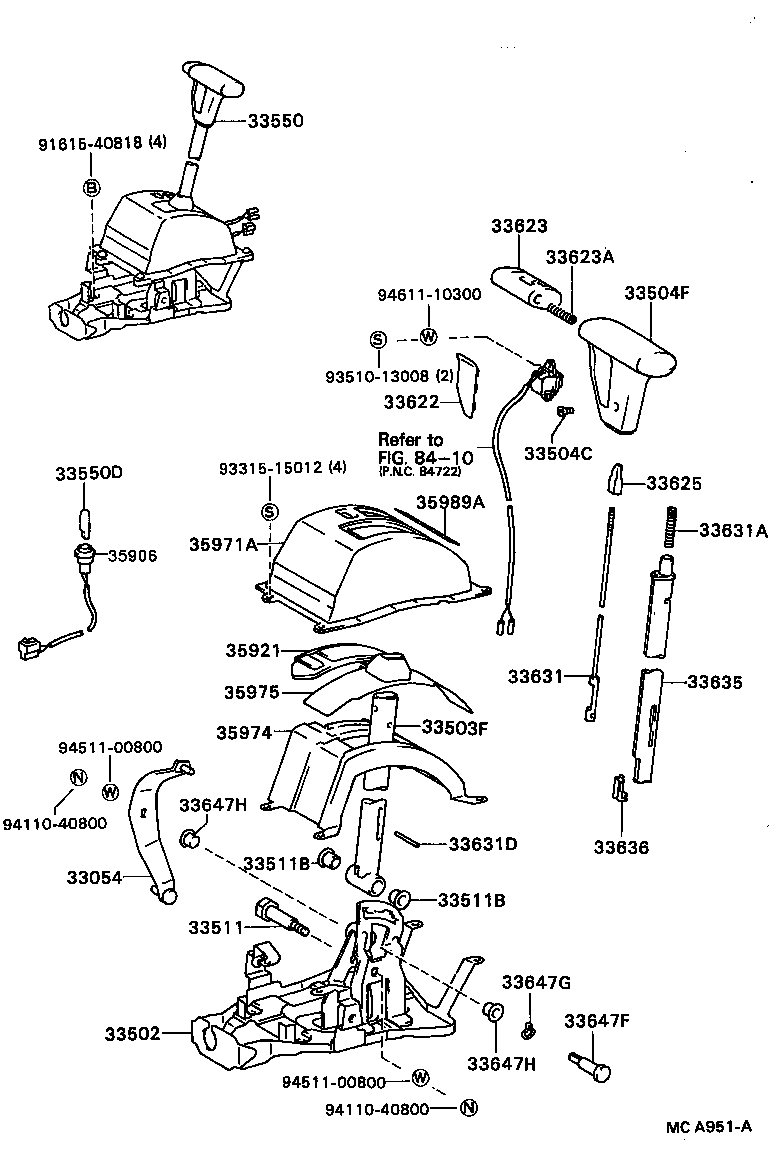

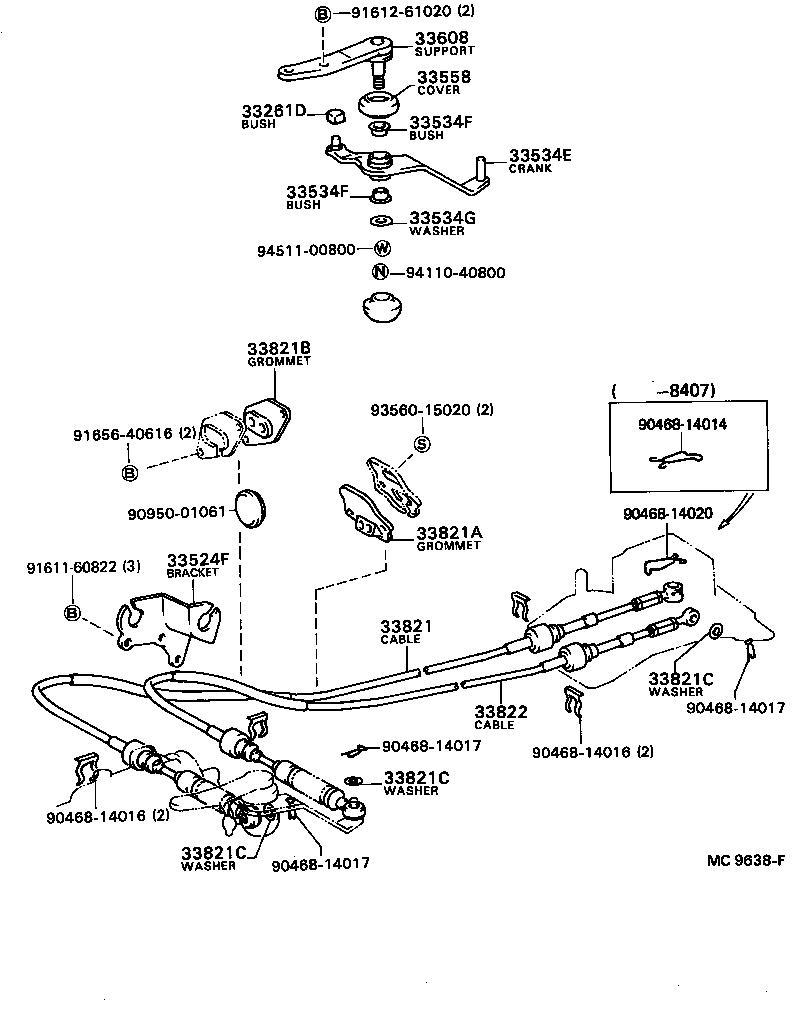

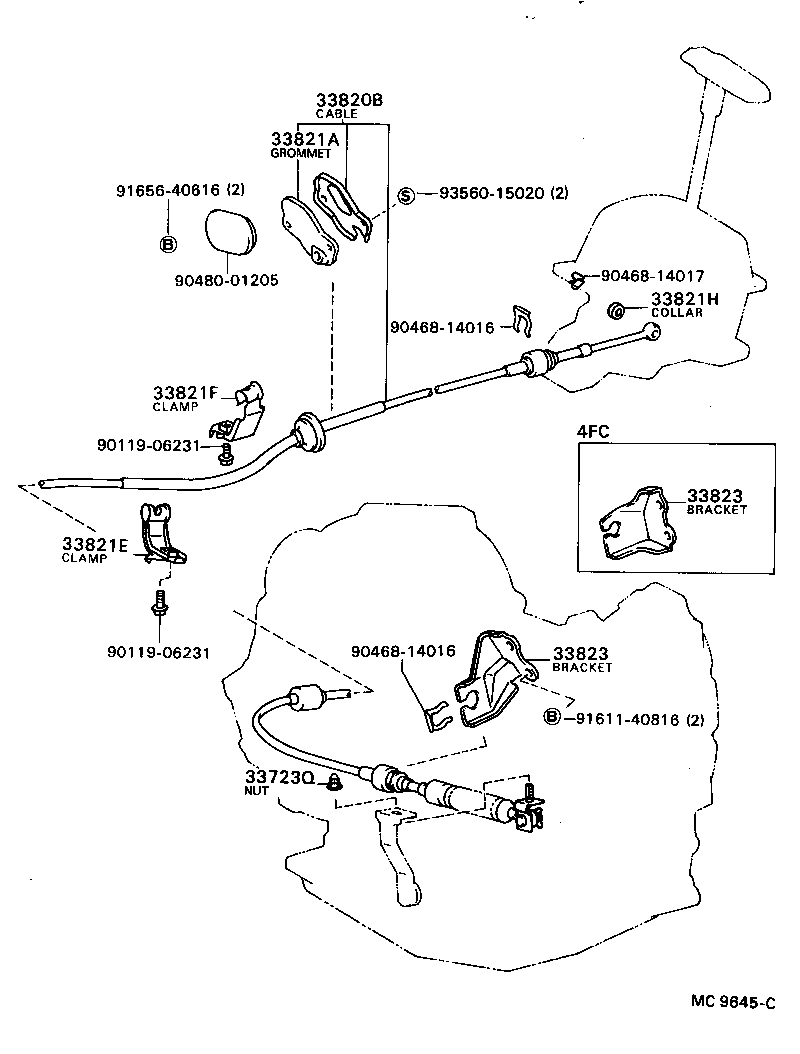

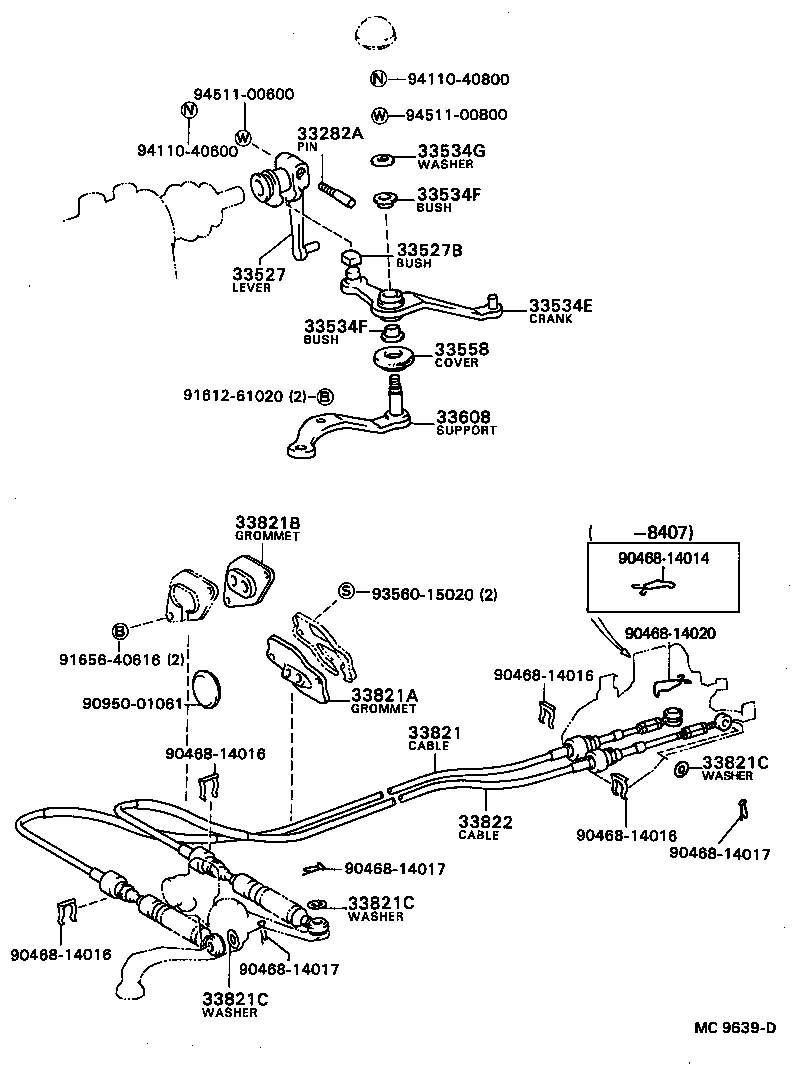

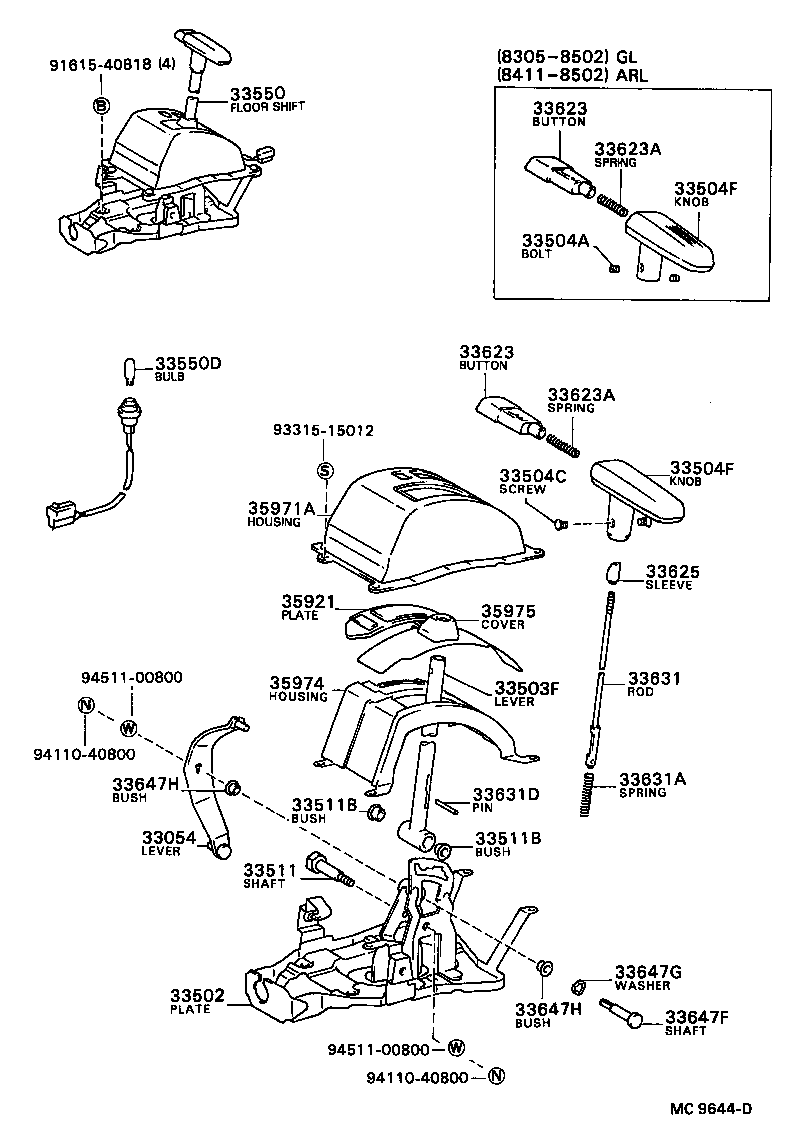

Shift Lever & Retainer
62 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 33054 | Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT) |
| 33261D | Bush (FOR SHIFT & SELECT LEVER) |
| 33282A | Pin, Lever Lock (FOR CONTROL SHIFT LEVER) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504A | Bolt OR Pin (FOR SHIFT LEVER KNOB SETTING) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33511B | Bush (FOR CONTROL SHAFT) |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33527 | Lever, Control Shift (FOR FLOOR SHIFT) |
| 33527B | Bush (FOR CONTROL SHIFT LEVER) |
| 33534C | Bush (FOR SELECTING BELLCRANK NO.1) |
| 33534E | Crank, Selecting Bell, NO.2 |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33534P | Washer, Plate (FOR SELECTING BELLCRANK NO.1) |
| 33534Q | Ring, E (FOR SELECTING BELLCRANK NO.1) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550 | Floor Shift Assy, Transmission |
| 33550D | Bulb, Position Indicator Lamp |
| 33554 | Cap, Shift Lever |
| 33556A | Spacer (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33556F | Seat, Transmission Shift Lever Ball |
| 33556G | Spring (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33556H | Shim (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33575A | Bush, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) |
| 33575B | Bush, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33618A | Bolt (FOR SELECTING BELLCRANK SUPPORT) |
| 33622 | Cover, Shift Lever Knob, NO.1 |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33635 | Guide, Wire (FOR SHIFT LEVER) |
| 33636 | Guide, Wire, NO.2 (FOR SHIFT LEVER) |
| 33647F | Shaft, Control Link (FOR FLOOR SHIFT) |
| 33647G | Washer, Wave (FOR CONTROL LINK SHAFT) |
| 33647H | Bush (FOR CONTROL LINK SHAFT) |
| 33695B | Cover, Selecting Spring (FOR FLOOR SHIFT) |
| 33723Q | Nut (FOR CONNECTING ROD SWIVEL) |
| 33820B | Cable Assy, Transmission Control |
| 33821 | Cable Transmission Control Shift (FOR FLOOR SHIFT) |
| 33821A | Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821B | Grommet, NO.2 (FOR TRANSMISSION CONTROL CABLE) |
| 33821C | Washer, Plate (FOR TRANSMISSION CONTROL CABLE) |
| 33821E | Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821F | Clamp, NO.2 (FOR TRANSMISSION CONTROL CABLE) |
| 33821H | Collar (FOR TRANSMISSION CONTROL CABLE) |
| 33822 | Cable Transmission Control Select (FOR FLOOR SHIFT) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35989A | Plate, Transmission Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
