Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

18 part groups · 10 illustrations

Illustrations

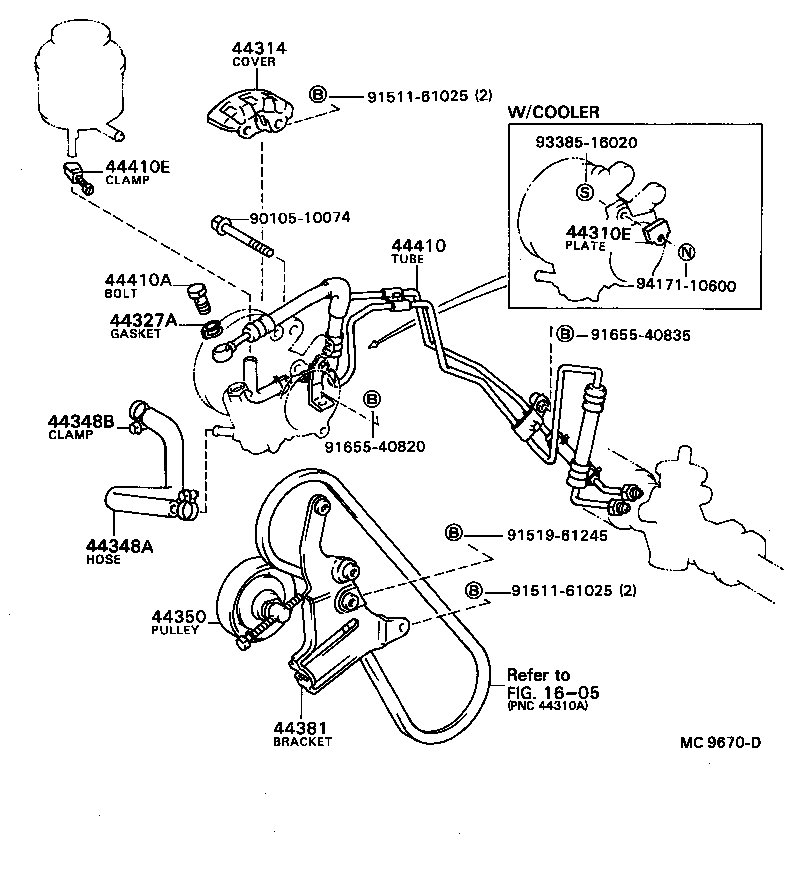

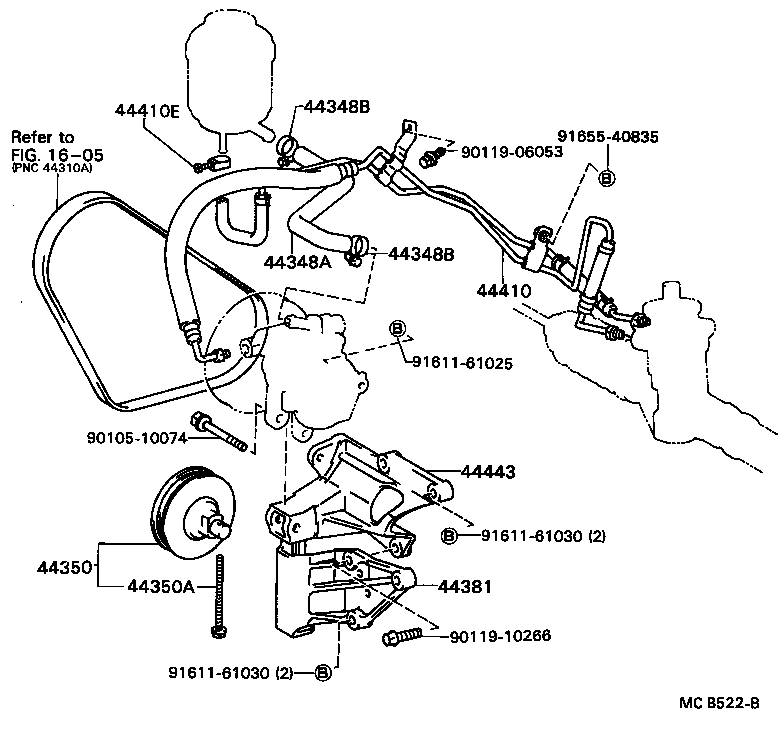

Figure MC9842D MC9842D 1983-05 → 1985-05 Figure MC9842D MC9842D 1984-02 → — Figure MC9842D MC9842D 1984-11 → — Figure MC9842D MC9842D 1985-05 → — Figure MCB522B MCB522B 1984-11 → — Figure MCB522B MCB522B 1985-05 → — Figure MC9671D MC9671D 1983-05 → 1985-05 Figure MC9671D MC9671D 1985-05 → — Figure MC9670D MC9670D 1983-05 → — Figure MCC128A MCC128A 1983-05 → —

Part groups

PNCDescription
44310E Plate(FOR VANE PUMP)
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410C Tube Assy, Pressure Feed, NO.1
44410D Tube Assy, Pressure Feed, NO.2
44410E Clamp(FOR PRESSURE FEED TUBE)
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
