Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 8 illustrations

Illustrations

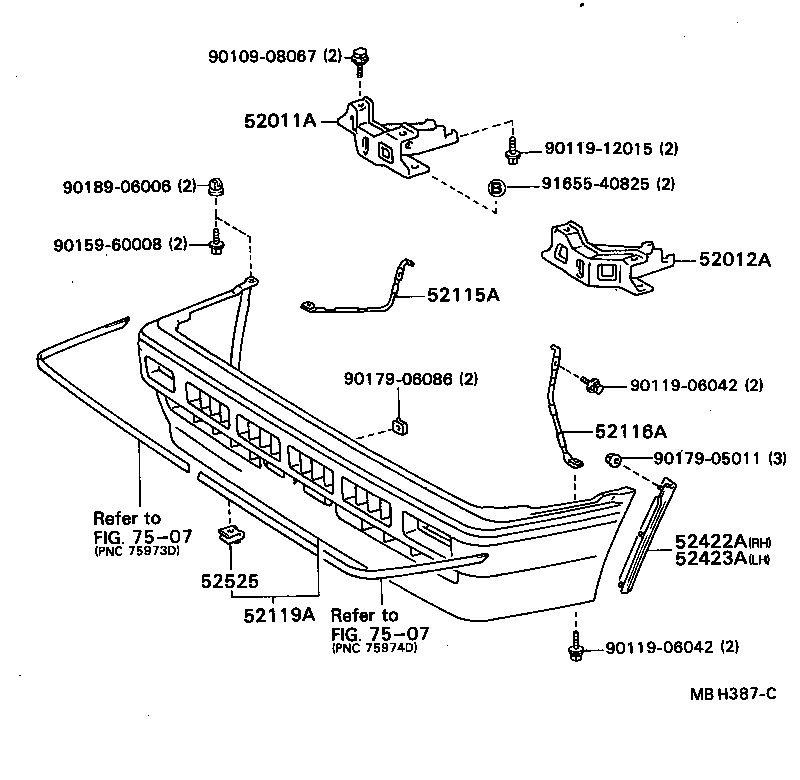

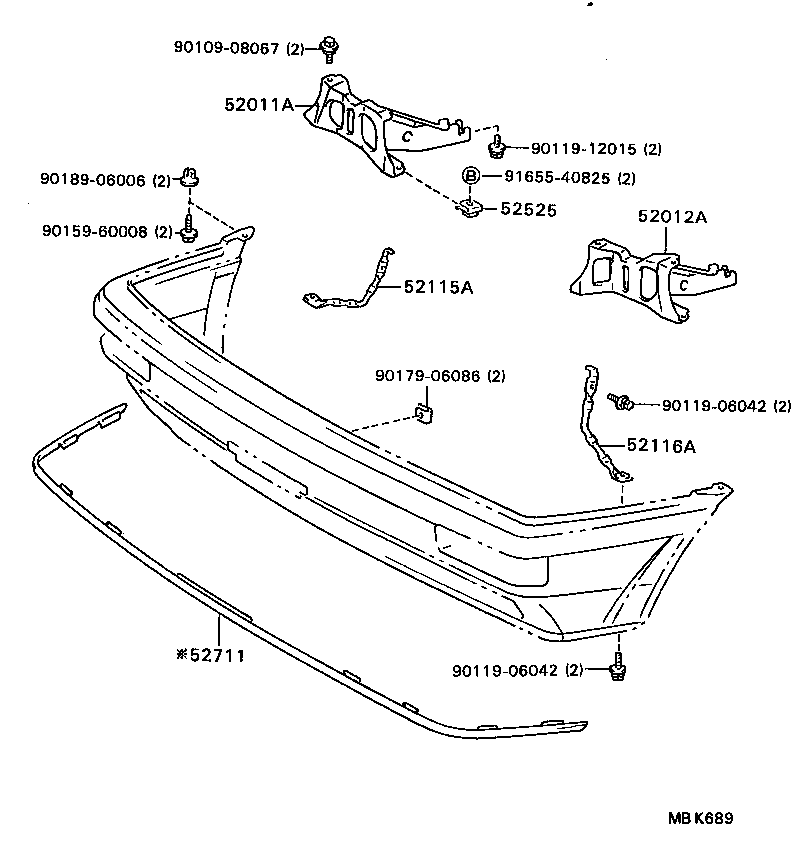

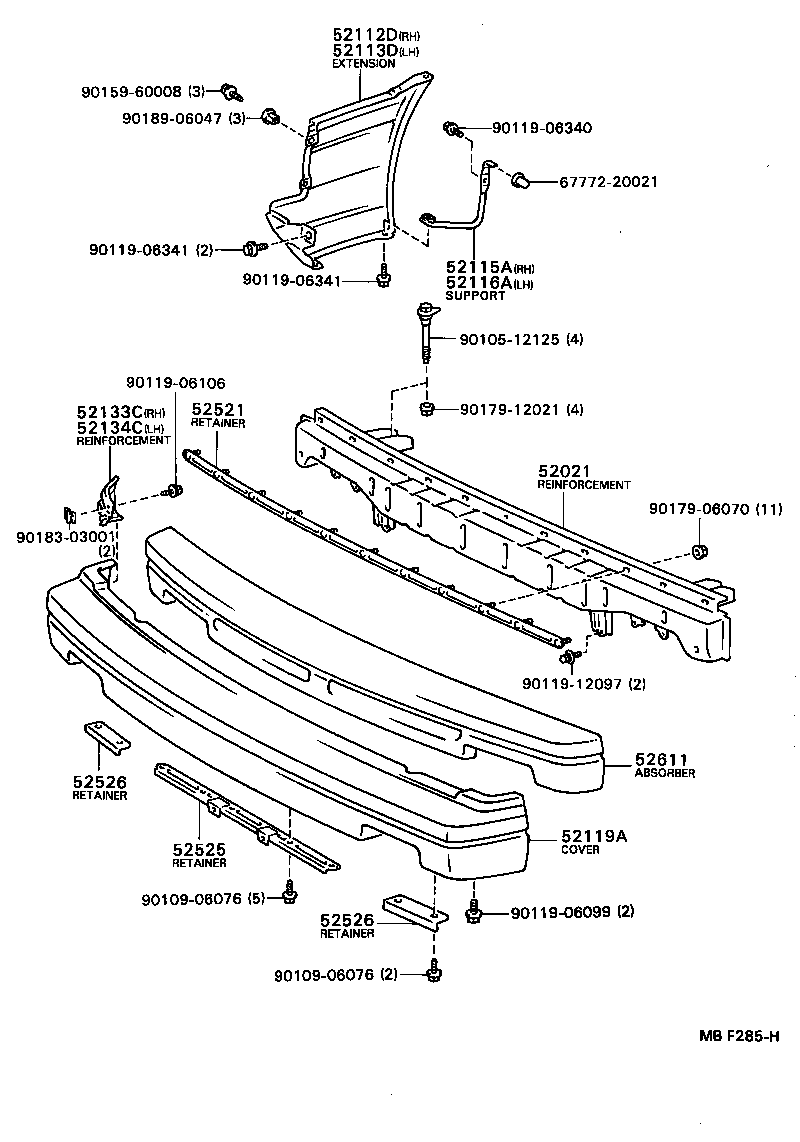

Figure MBF166C MBF166C 1983-05 → 1984-10 Figure MBF166C MBF166C 1984-10 → 1986-05 Figure MBF166C MBF166C 1984-10 → 1987-04 Figure MBF166C MBF166C 1986-05 → 1987-04 Figure MBF166C MBF166C 1986-05 → — Figure MBK689 MBK689 1986-05 → — Figure MBF285H MBF285H 1983-05 → — Figure MBH387C MBH387C 1984-10 → 1987-04

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52133C Reinforcement, Front Bumper Bar, RH
52134C Reinforcement, Front Bumper Bar, LH
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
