Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 5 illustrations

Illustrations

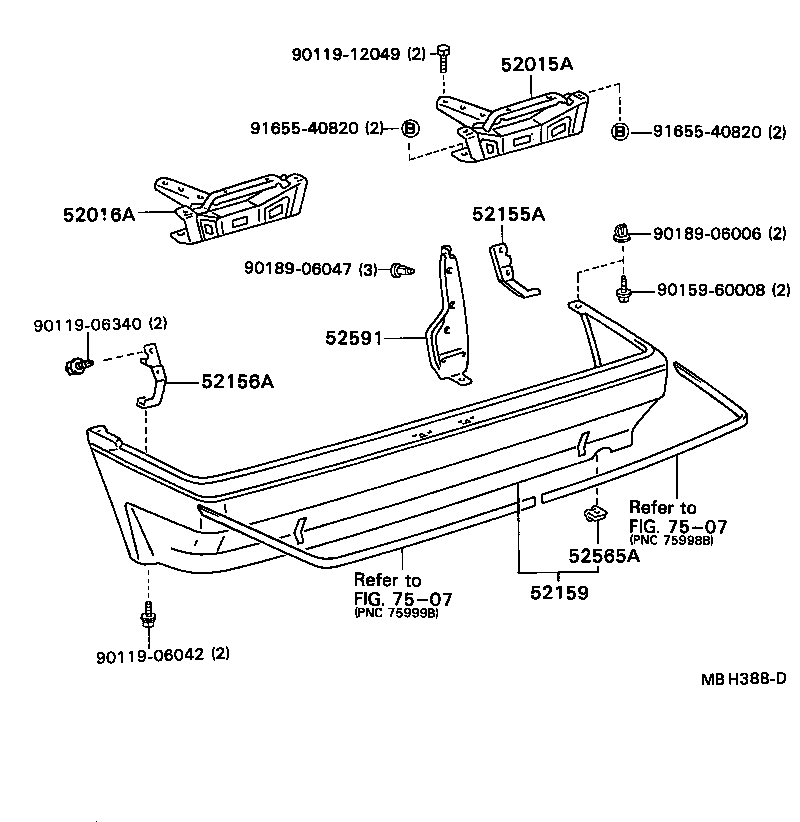

Figure MBF288E MBF288E 1983-05 → 1986-05 Figure MBF288E MBF288E 1986-05 → 1987-04 Figure MBK690 MBK690 1986-05 → — Figure MBF192F MBF192F 1983-05 → — Figure MBH388D MBH388D 1984-10 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153A Stay, Rear Bumper Side, RH
52153B Extension, Rear Bumper, LH
52154B Stay, Rear Bumper Side, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52178A Reinforcement, Rear Bumper Bar Corner, RH
52179A Reinforcement, Rear Bumper Bar Corner, LH
52185A Bracket, Rear Bumper Side, RH
52186A Bracket, Rear Bumper Side, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52591 Seal, Rear Bumper Side, RH
52615 Absorber, Rear Bumper Energy
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
