Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

29 part groups · 3 illustrations

Illustrations

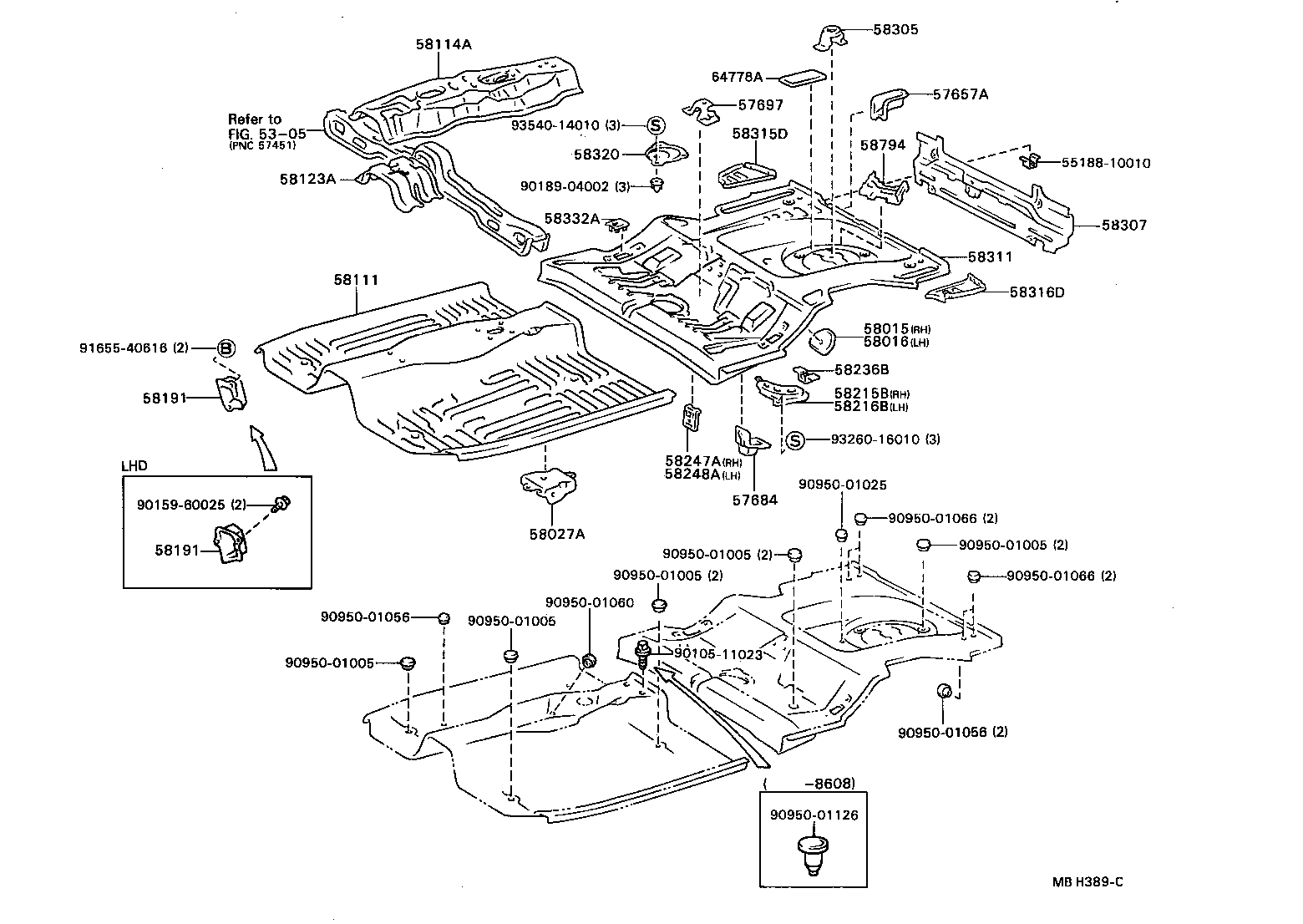

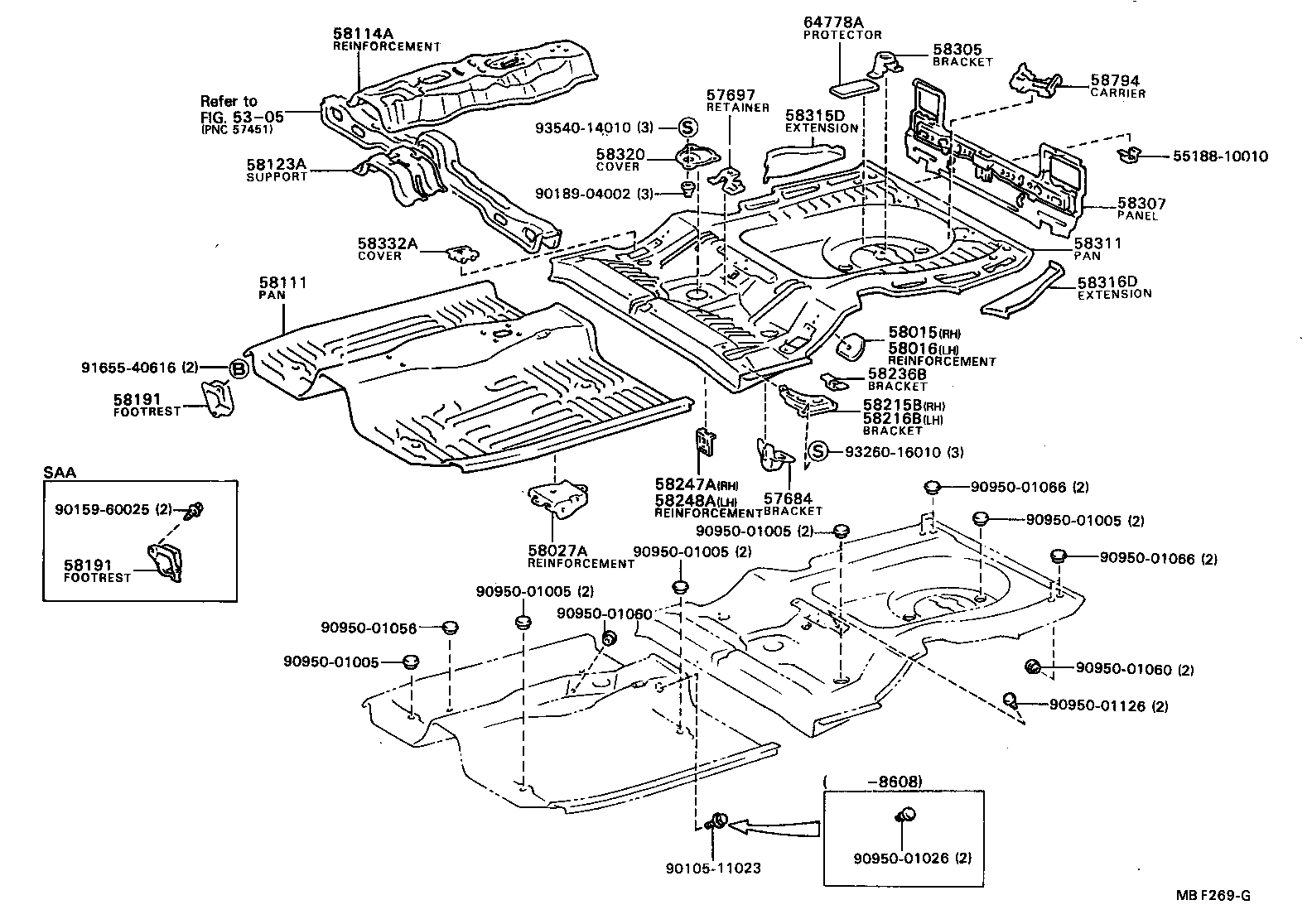

Figure MBF267H MBF267H 1983-05 → — Figure MBF269G MBF269G 1983-05 → — Figure MBH389C MBH389C 1984-10 → —

Part groups

PNCDescription
57657A Bracket, Exhaust Pipe Mounting, NO.2
57684 Bracket, Fuel Tank, Rear
57697 Retainer, Rear Seat Cushion
58015 Reinforcement, Belt Anchor TO Floor Pan, RH
58016 Reinforcement, Belt Anchor TO Floor Pan, LH
58027A Reinforce Sub-assy, Seat Belt Anchor
58111 Pan, Front Floor
58114A Reinforcement, Front Floor Panel
58123A Support, Shift & Select Lever
58191 Footrest, Front Floor
58215B Bracket, Rear Seat Mounting, RH
58216B Bracket, Rear Seat Mounting, LH
58236B Bracket, Center Floor Heat Insulator
58247A Reinforcement, Rear Seat Cushion Hinge, RH
58248A Reinforcement, Rear Seat Cushion Hinge, LH
58305 Bracket Sub-assy, Spare Wheel Clamp
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58313F Extension, Rear Floor Pan TO Quarter Panel, RH
58314F Extension, Rear Floor Pan TO Quarter Panel, LH
58315D Extension, Rear Floor Pan, RH
58316D Extension, Rear Floor Pan, LH
58316E Retainer, Rear Seat Set
58320 Cover, Rear Floor Service Hole
58332A Cover, Rear Floor Side Service Hole
58794 Carrier, Jack
64215A Extension, Rear Floor TO Package Tray, RH
64216A Extension, Rear Floor TO Package Tray, LH
64778A Protector, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
