Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

9 part groups · 2 illustrations

Illustrations

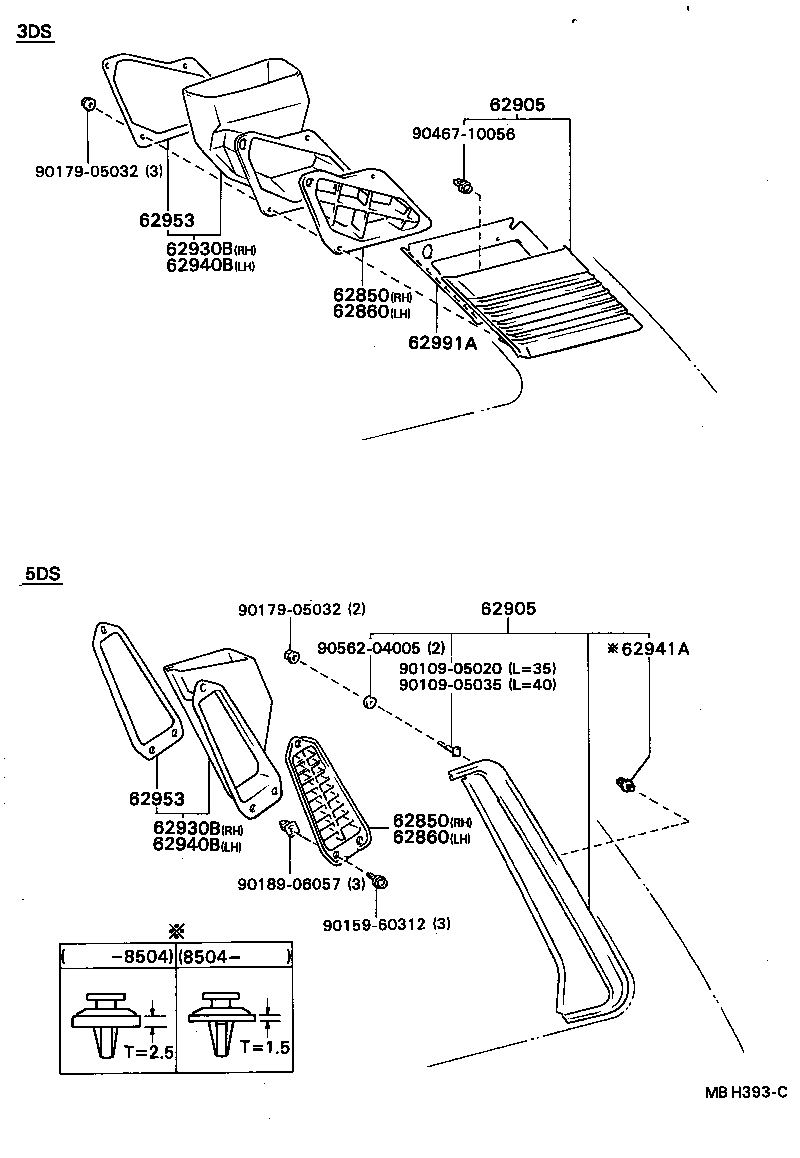

Figure MBH266C MBH266C 1983-05 → — Figure MBH393C MBH393C 1984-10 → —

Part groups

PNCDescription
62850 Valve Assy, Room Pressure Relief, RH
62860 Valve Assy, Room Pressure Relief, LH
62905 Louver, Quarter Ventilation
62930B Duct Assy, Quarter Vent, RH
62940B Duct Assy, Quarter Vent, LH
62941A Retainer, Quarter Vent Duct
62953 Seal, Quarter Vent Duct, NO.1
62954 Seal, Quarter Vent Duct, NO.2
62991A Pad, Quarter Vent Louver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
