Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

19 part groups · 8 illustrations

Illustrations

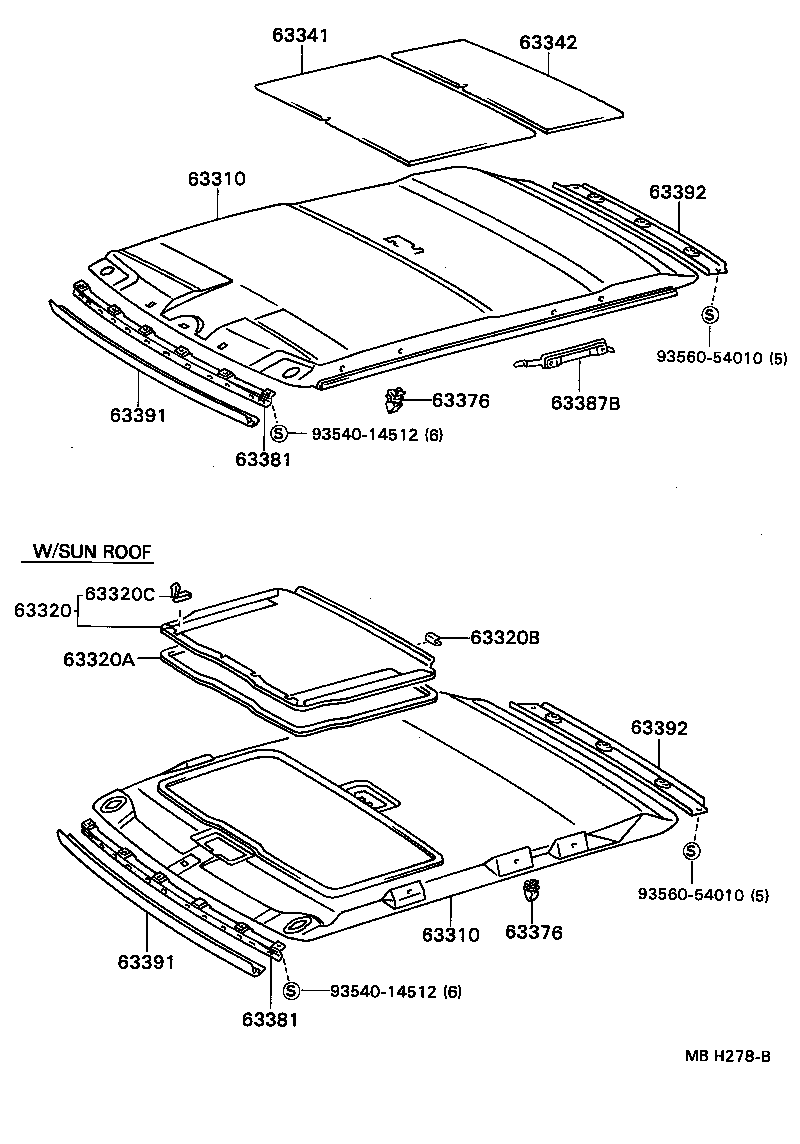

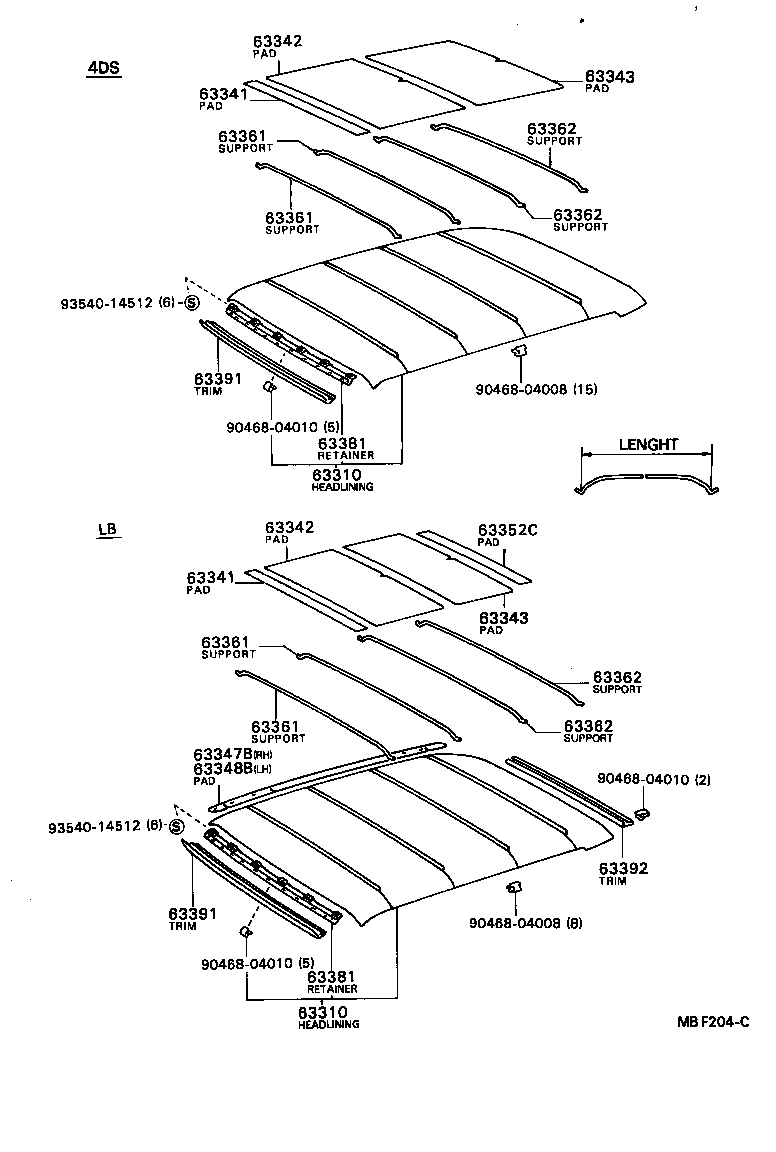

Figure MBF202A MBF202A 1983-05 → 1986-05 Figure MBF202A MBF202A 1984-02 → 1986-05 Figure MBF202A MBF202A 1986-05 → — Figure MBF204C MBF204C 1983-05 → — Figure MBF204C MBF204C 1984-02 → 1986-05 Figure MBH278B MBH278B 1984-10 → — Figure MBH399 MBH399 1984-10 → 1986-05 Figure MBH399 MBH399 1986-05 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320B Joint, Sun Roof Opening Trim
63320C Retainer, Trim Board(FOR SUN ROOF)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63347B Pad, Roof Side Rail Silencer, RH
63348B Pad, Roof Side Rail Silencer, LH
63352C Pad, Roof Headlining, End
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63376 Clip, Headlining
63381 Retainer, Headlining, Front
63387B Bracket, Roof Headlining Retainer
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
