Toyota Corolla Sed/LB
1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe
Discontinued model
Data version 1989-05

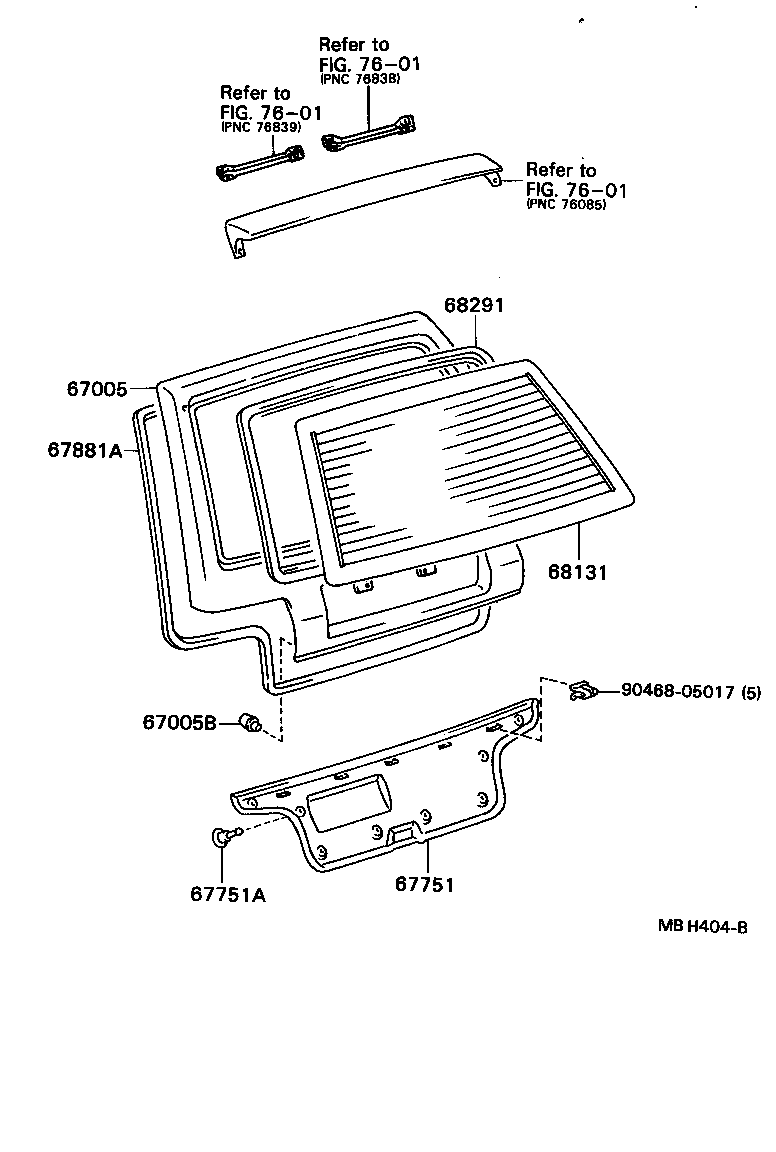

Back Door Panel & Glass
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67881A | Weatherstrip, Back Door |
| 67891A | Seal, Back Door |
| 68131 | Glass, Back Door |
| 68291 | Weatherstrip, Back Door Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
