Toyota Corolla Sed/LB
1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe
Discontinued model
Data version 1989-05

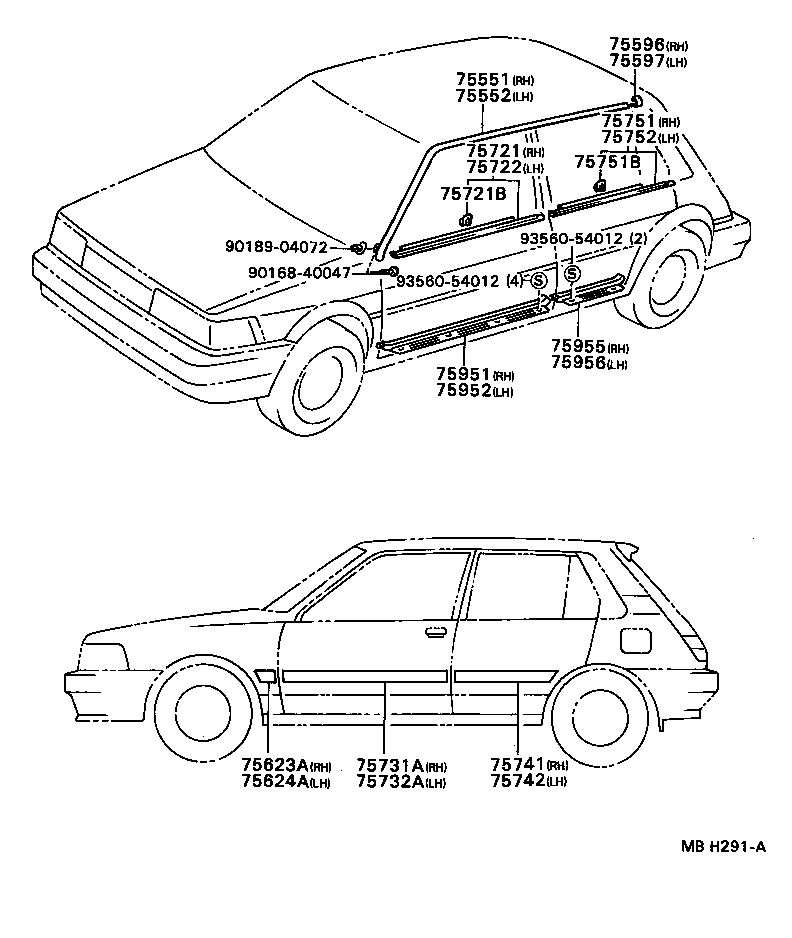

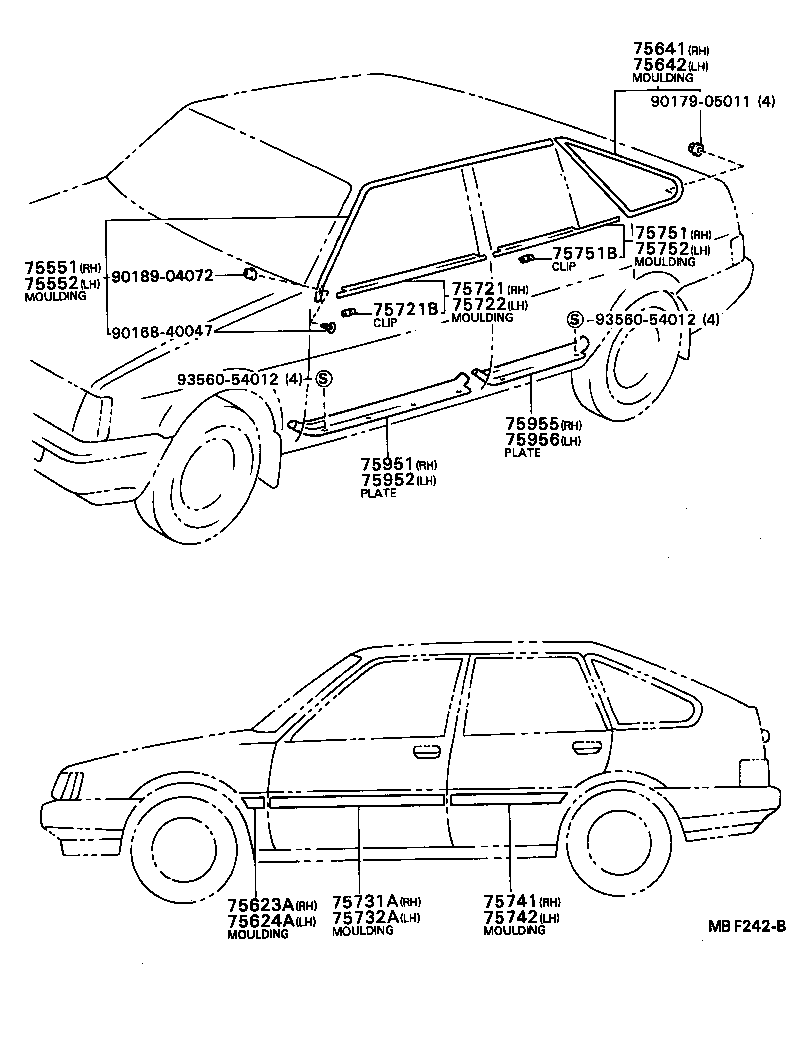

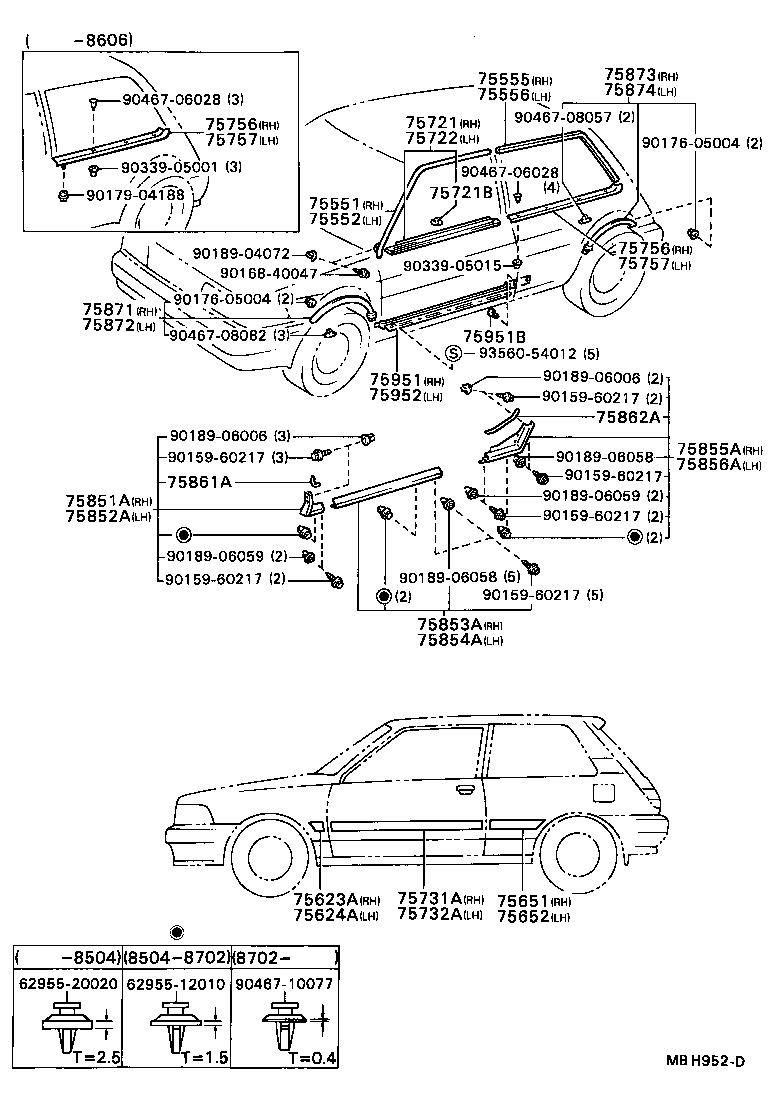

Side Moulding
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75555 | Moulding, Roof Drip Side Finish, Rear RH |
| 75556 | Moulding, Roof Drip Side Finish, Rear LH |
| 75596 | Cover, Roof Drip Side Finish Moulding Joint, RH |
| 75597 | Cover, Roof Drip Side Finish Moulding Joint, LH |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75641 | Moulding, Quarter Window, Outside Front RH |
| 75642 | Moulding, Quarter Window, Outside Front LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75721 | Moulding, Front Door Belt, RH |
| 75721B | Clip(FOR FRONT DOOR BELT MOULDING SET) |
| 75722 | Moulding, Front Door Belt, LH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75751 | Moulding, Rear Door Belt, RH |
| 75751B | Clip (FOR REAR DOOR BELT MOULDING SET) |
| 75752 | Moulding, Rear Door Belt, LH |
| 75756 | Moulding, Quarter Belt, RH |
| 75757 | Moulding, Quarter Belt, LH |
| 75851A | Moulding, Rocker Panel, Front RH |
| 75852A | Moulding, Rocker Panel, Front LH |
| 75853A | Moulding, Rocker Panel, Center RH |
| 75854A | Moulding, Rocker Panel, Center LH |
| 75855A | Moulding, Rocker Panel, Rear RH |
| 75856A | Moulding, Rocker Panel, Rear LH |
| 75861A | Protector, Rocker Panel Moulding, NO.1 |
| 75862A | Protector, Rocker Panel Moulding, NO.2 |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 75951 | Plate, Front Door Scuff, Outside RH |
| 75951B | Clip (FOR DOOR SCUFF PLATE) |
| 75952 | Plate, Front Door Scuff, Outside LH |
| 75955 | Plate, Rear Door Scuff, Outside RH |
| 75956 | Plate, Rear Door Scuff, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
