Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

19 part groups · 8 illustrations

Illustrations

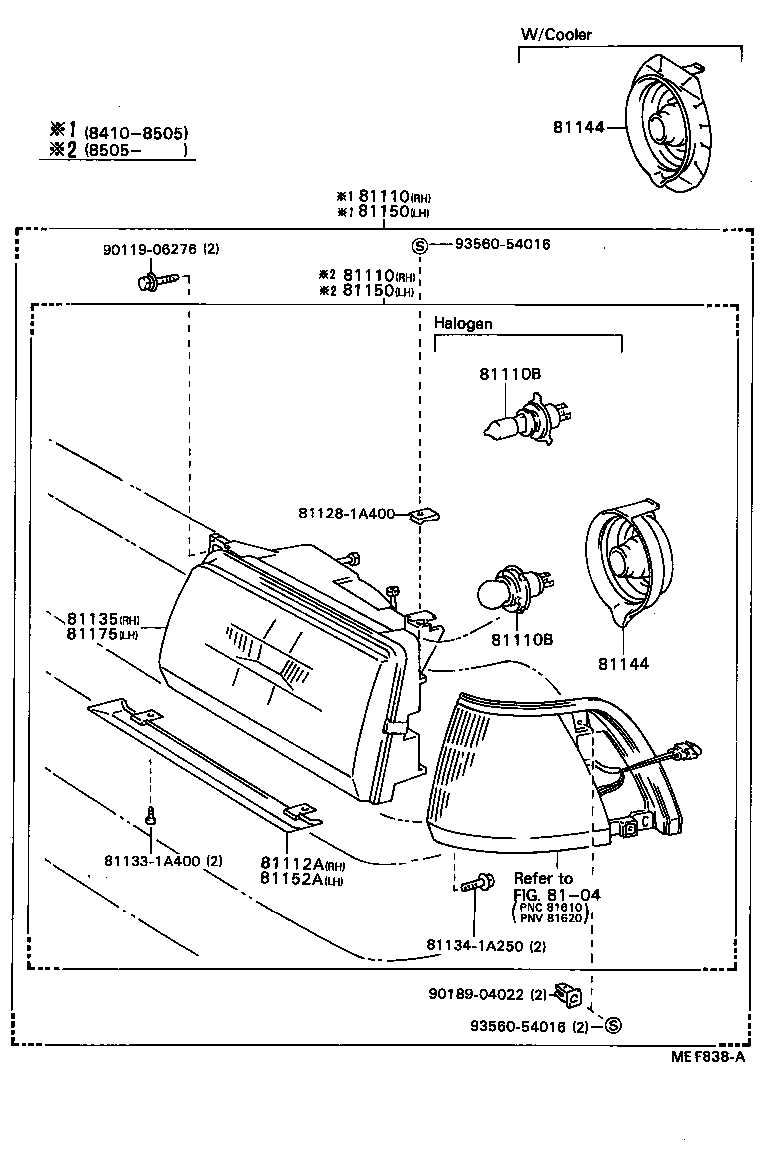

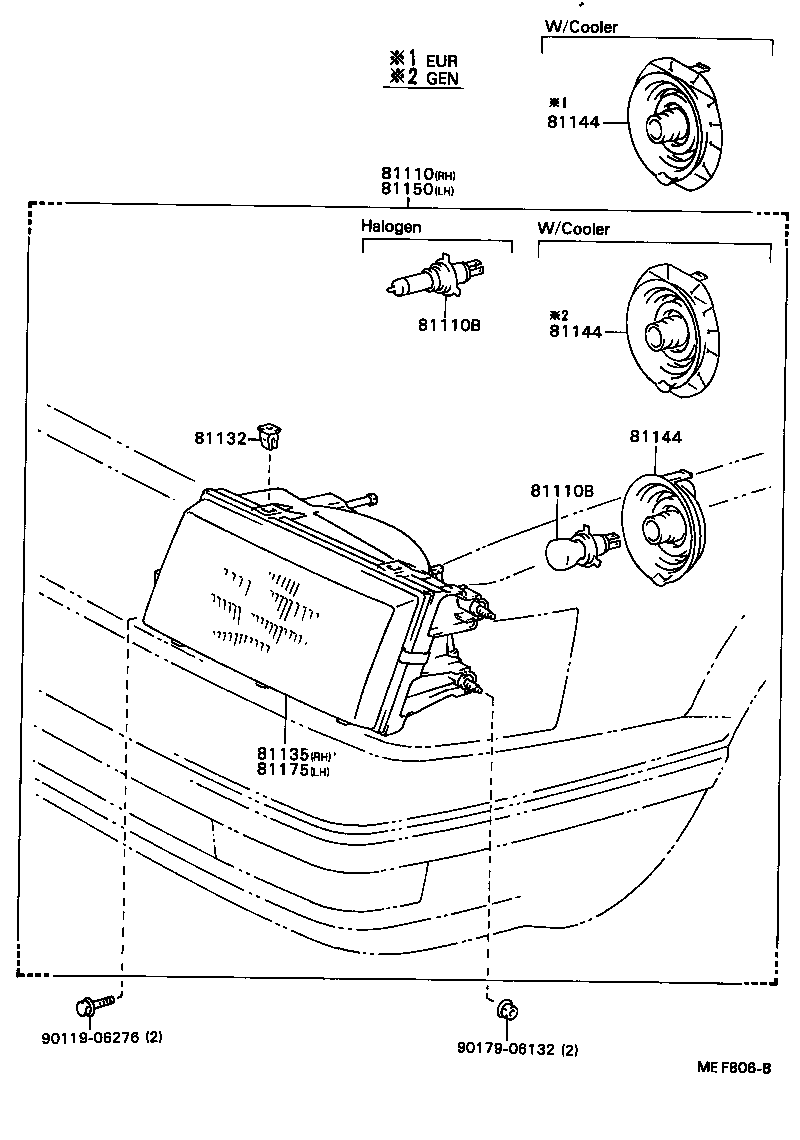

Figure MEE014C MEE014C 1983-05 → 1985-05 Figure MEE014C MEE014C 1983-05 → 1985-05 Figure MEE014C MEE014C 1985-05 → 1986-05 Figure MEF806B MEF806B 1985-05 → 1987-04 Figure MEF806B MEF806B 1985-05 → 1987-07 Figure MEF806B MEF806B 1986-05 → — Figure MEF838A MEF838A 1984-10 → 1987-04 Figure MED034D MED034D 1983-08 → 1985-05

Part groups

PNCDescription
04817 Headlamp Kit, W/O Sealed Beam, RH
04818 Headlamp Kit, W/O Sealed Beam, LH
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81112A Rim, Headlamp, RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81132 Nut, Headlamp Self Locking
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81152A Rim, Headlamp, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
