Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

7 part groups · 6 illustrations

Illustrations

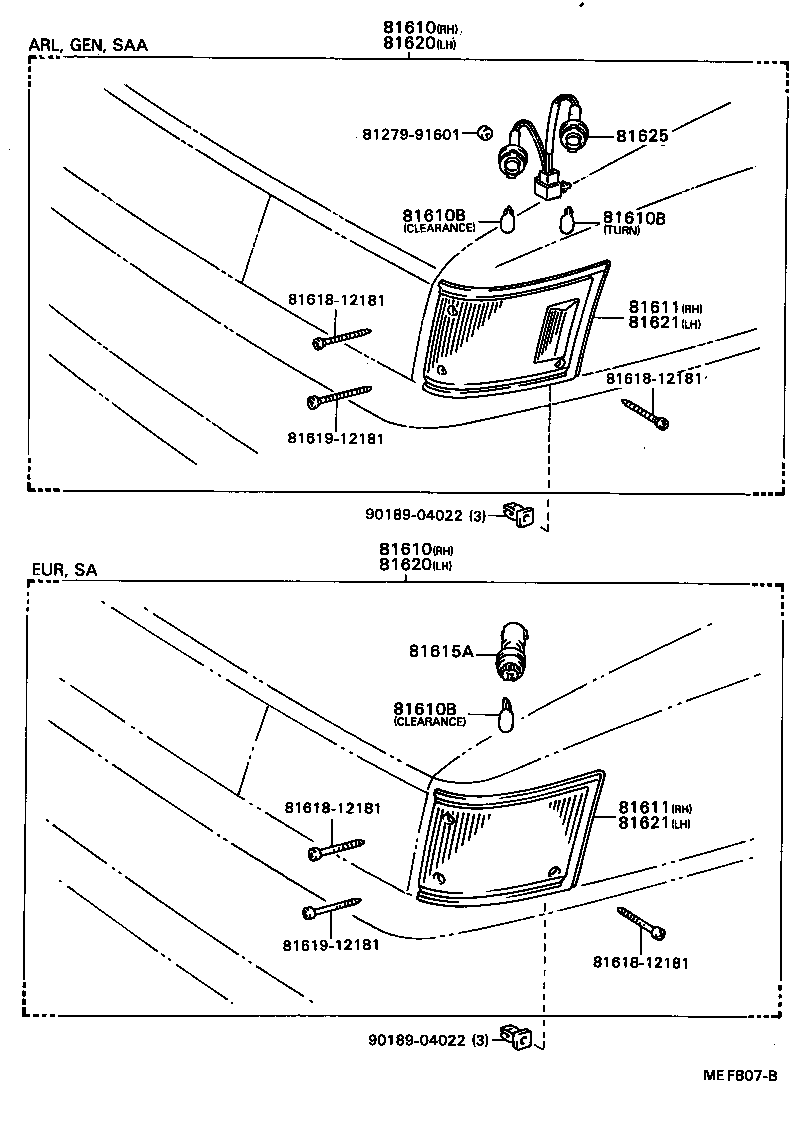

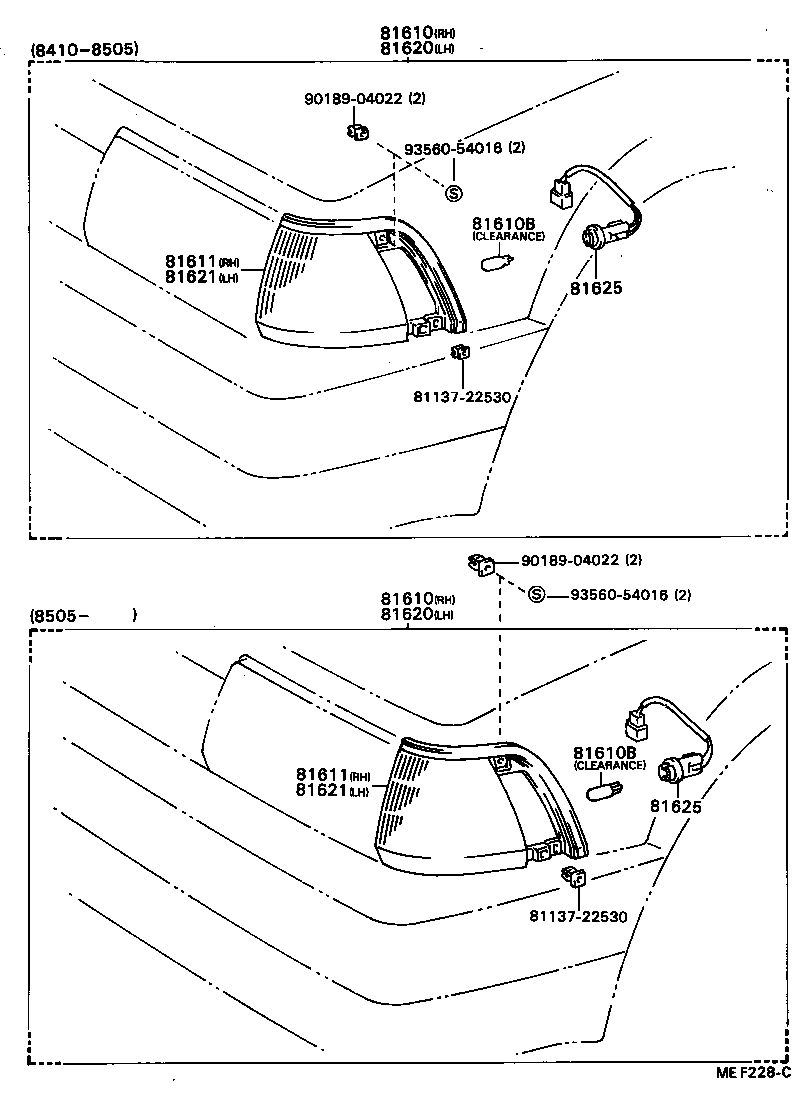

Figure MEF227A MEF227A 1983-05 → 1985-05 Figure MEF227A MEF227A 1985-05 → 1986-05 Figure MEF807B MEF807B 1985-05 → 1987-04 Figure MEF807B MEF807B 1985-05 → 1987-07 Figure MEF807B MEF807B 1986-05 → — Figure MEF228C MEF228C 1984-10 → 1987-04

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81615A Socket Plug, Clearance Lamp
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81625 Socket And Wire, Parking And Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
