Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

9 part groups · 6 illustrations

Illustrations

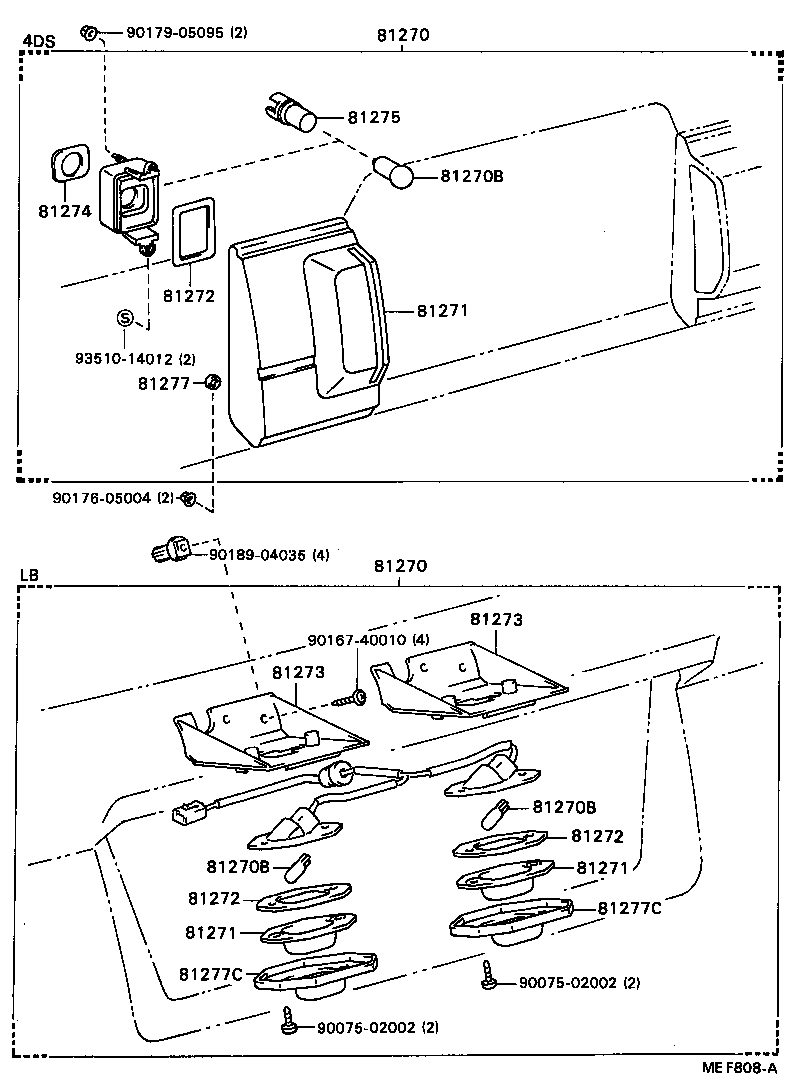

Figure MEF230B MEF230B 1984-10 → — Figure MED016C MED016C 1983-05 → 1985-05 Figure MED016C MED016C 1985-05 → 1986-05 Figure MED016C MED016C 1986-05 → — Figure MEF808A MEF808A 1985-05 → 1987-04 Figure MEF808A MEF808A 1986-05 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81273 Bracket, License Plate Lamp
81274 Gasket, License Plate Lamp Body
81275 Socket And Wire, License Plate Lamp
81277 Spacer, License Plate Lamp Rim And Lens
81277C Shade, License Plate Lamp, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
