Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

45 part groups · 11 illustrations

Illustrations

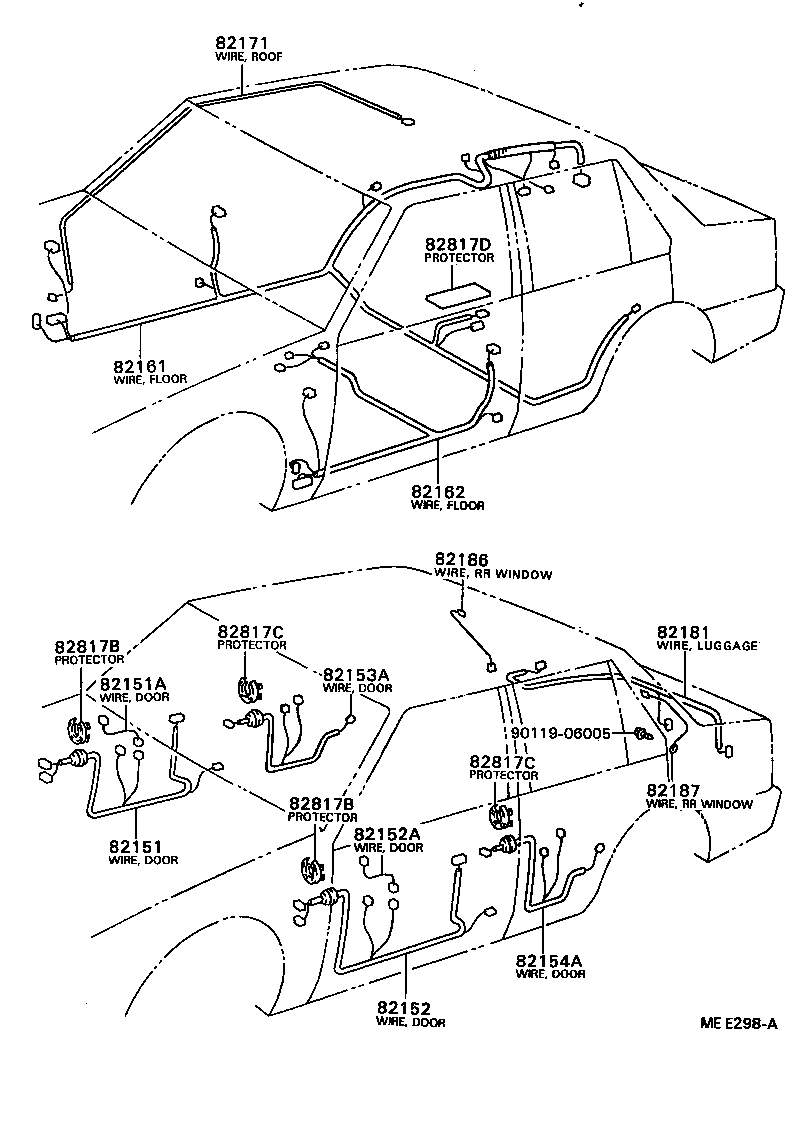

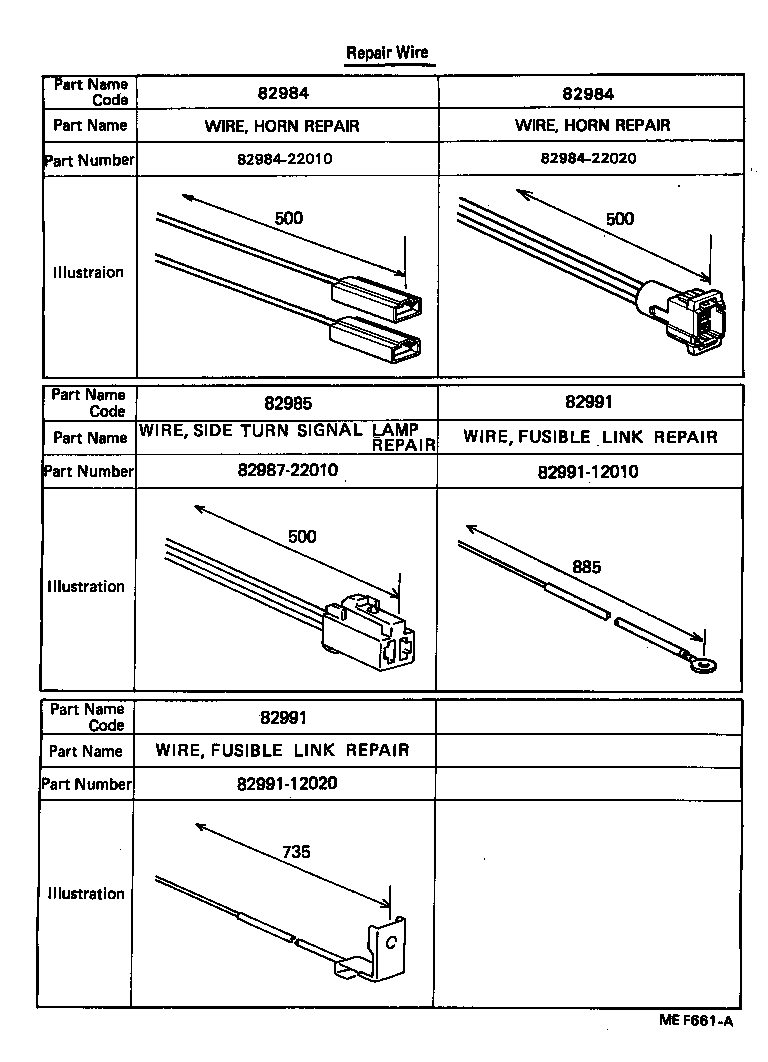

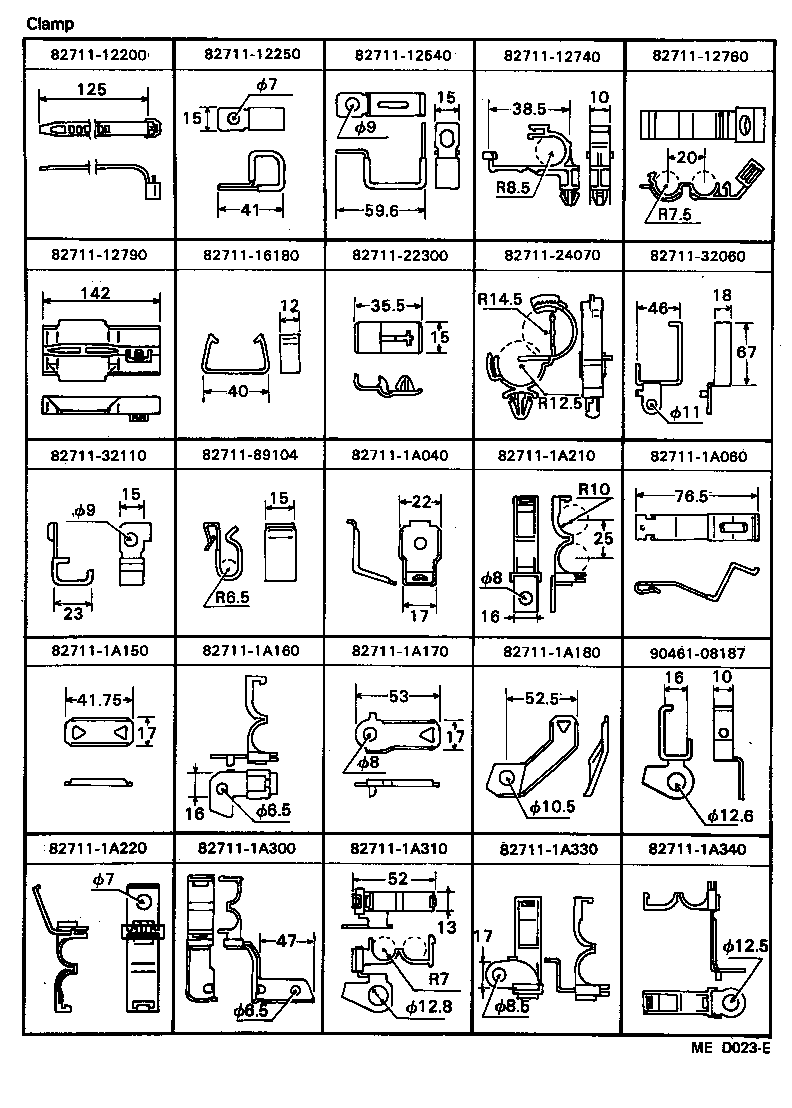

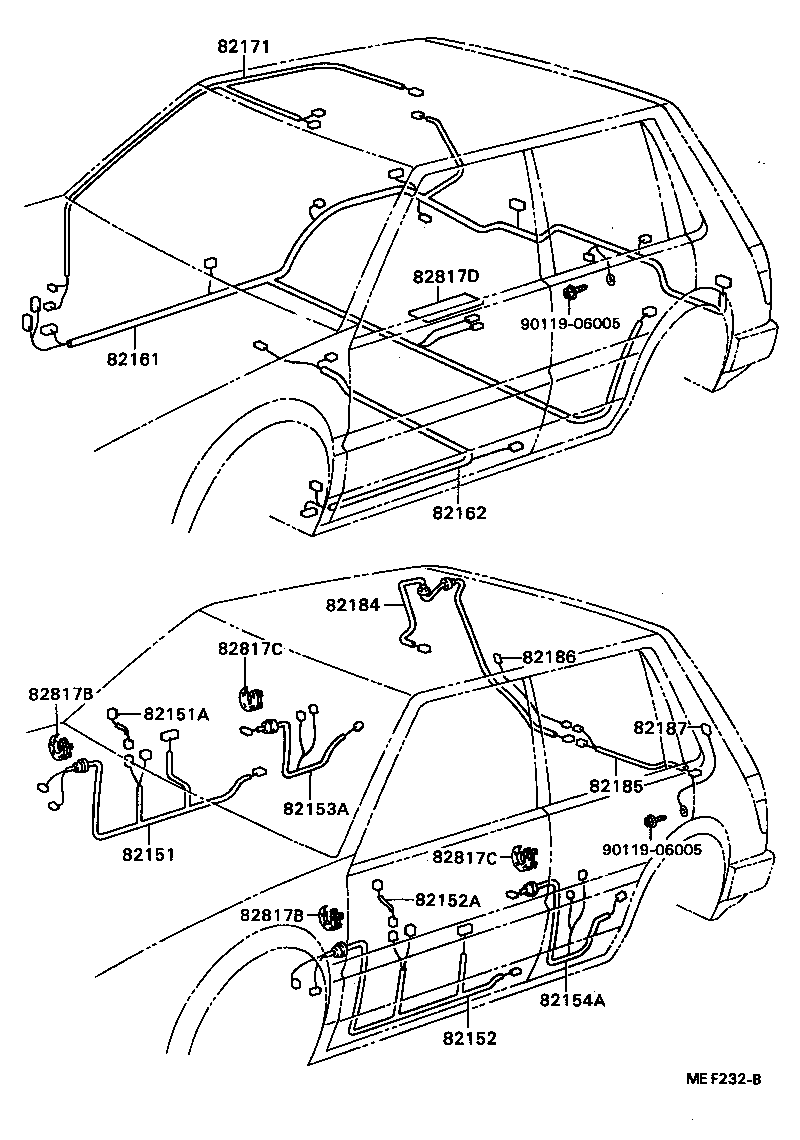

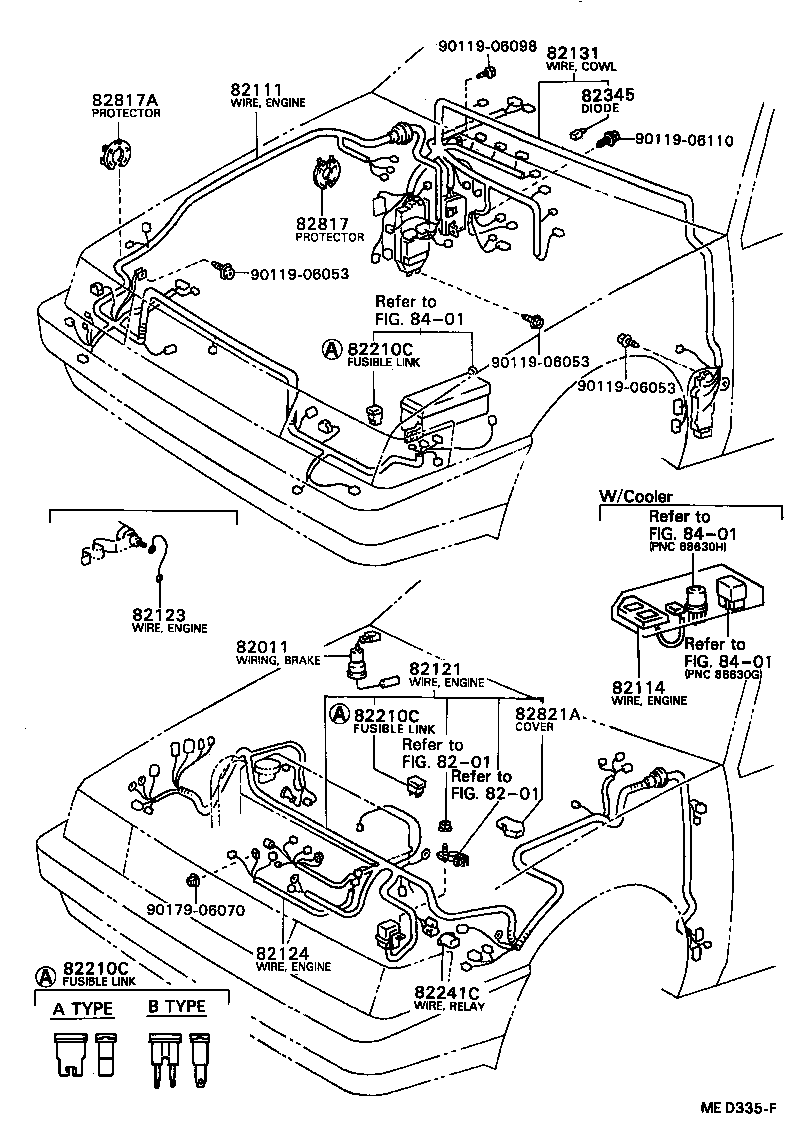

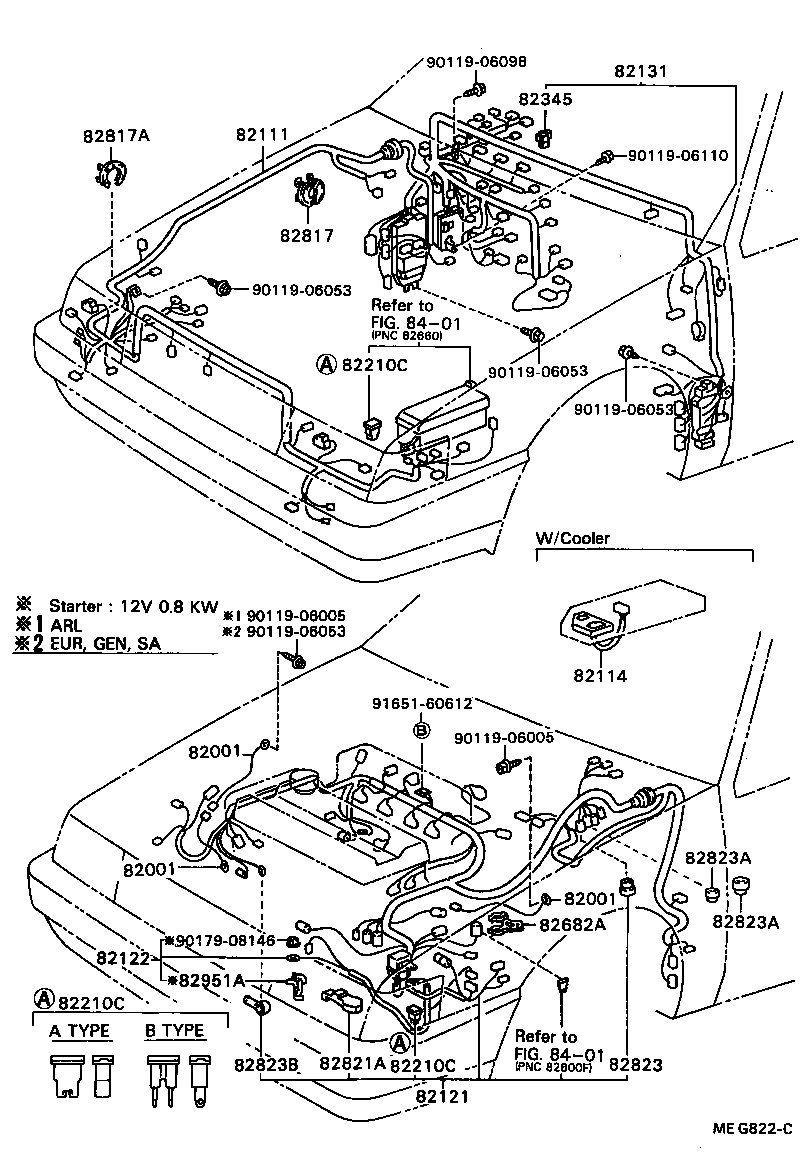

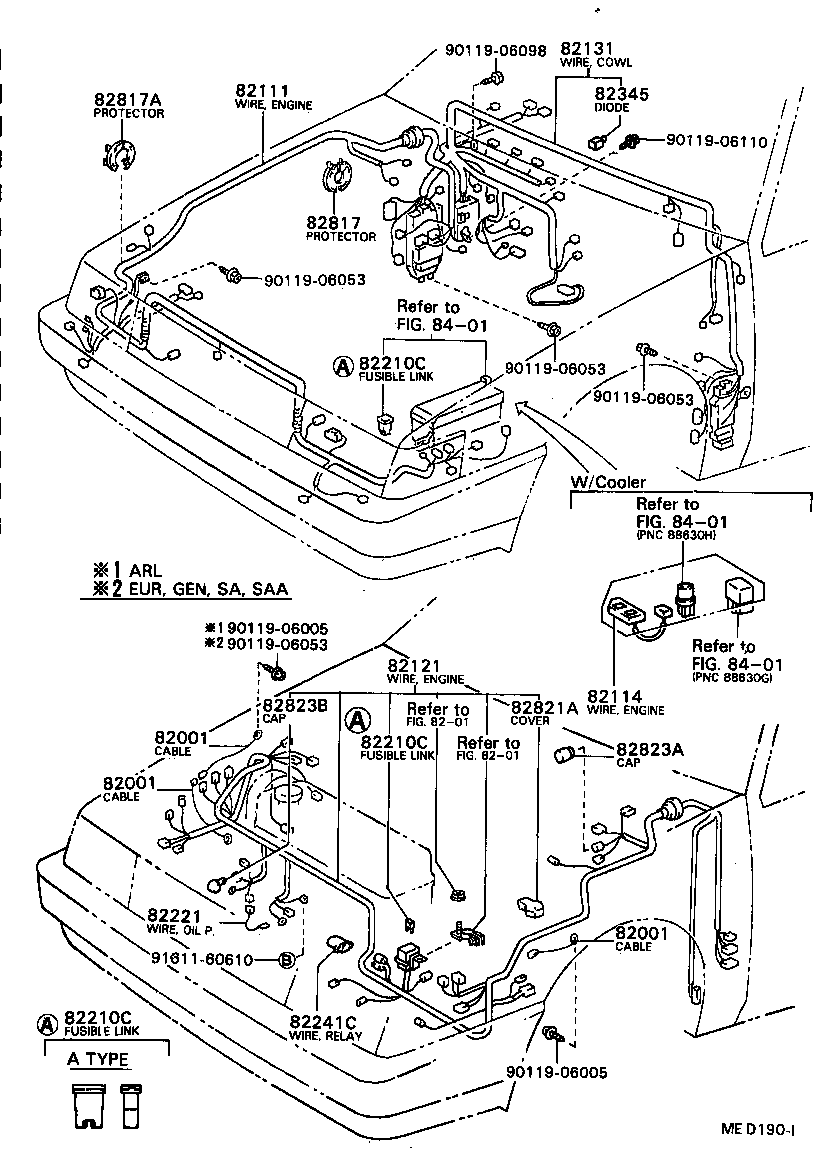

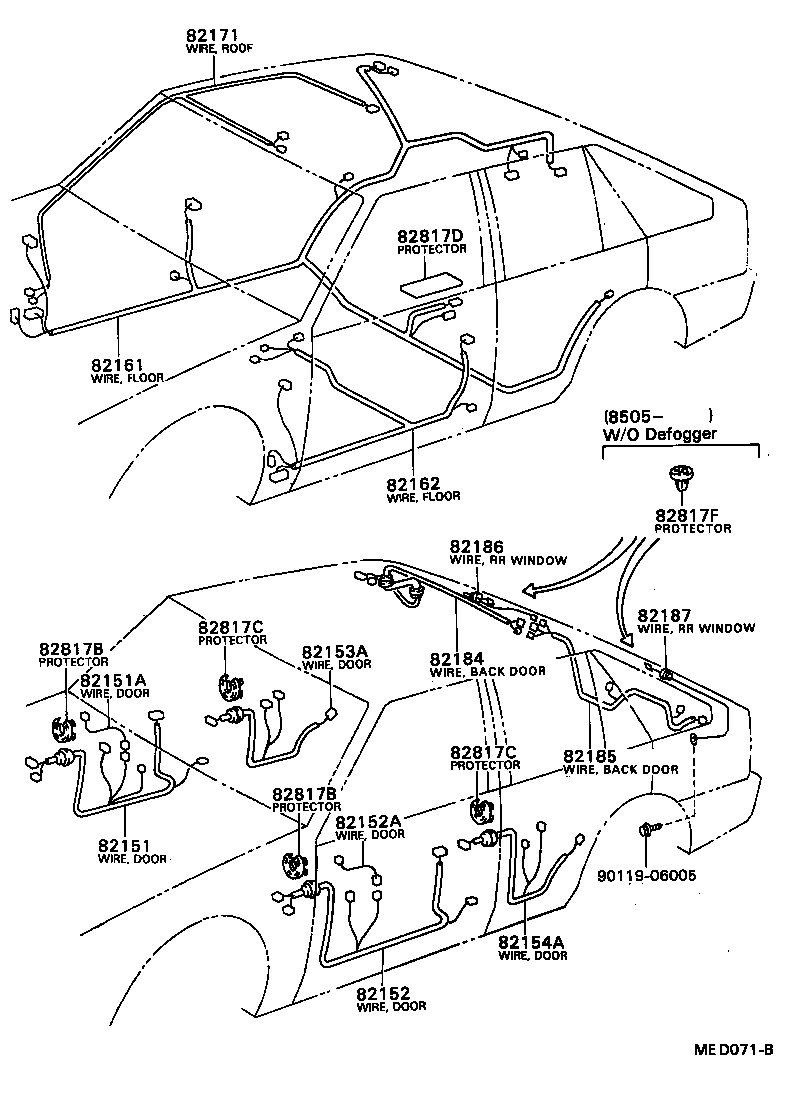

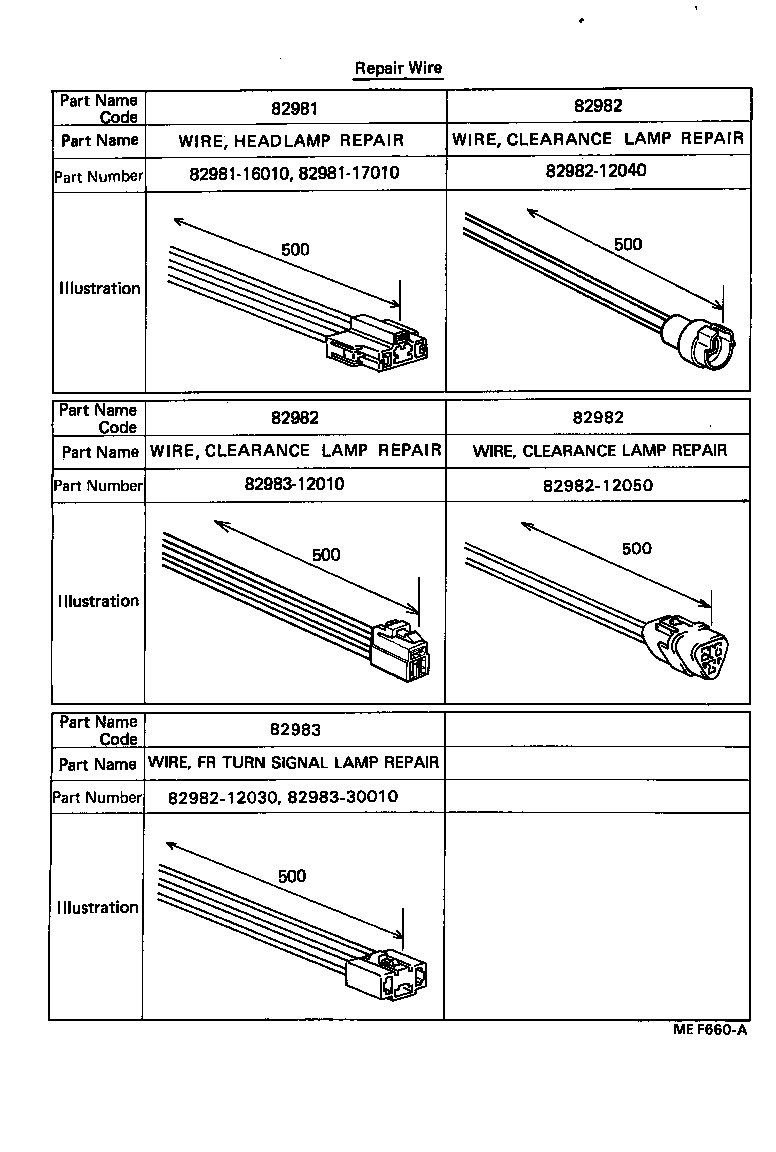

Figure MEF219E MEF219E 1984-10 → — Figure MED190I MED190I 1983-05 → — Figure MEG822C MEG822C 1984-10 → — Figure MED335F MED335F 1983-05 → 1987-04 Figure MEF232B MEF232B 1984-10 → — Figure MEE298A MEE298A 1983-05 → — Figure MED071B MED071B 1983-05 → — Figure MEF660A MEF660A 1983-05 → — Figure MEF661A MEF661A 1983-05 → — Figure MED023E MED023E 1983-05 → — Figure MEF196D MEF196D 1983-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82345 Diode
82682A Retainer, Fuse Holder
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817F Protector, Wiring Harness, NO.7
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82823B Cap, Terminal, NO.3
82951A Bracket, Terminal
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
