Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

23 part groups · 13 illustrations

Illustrations

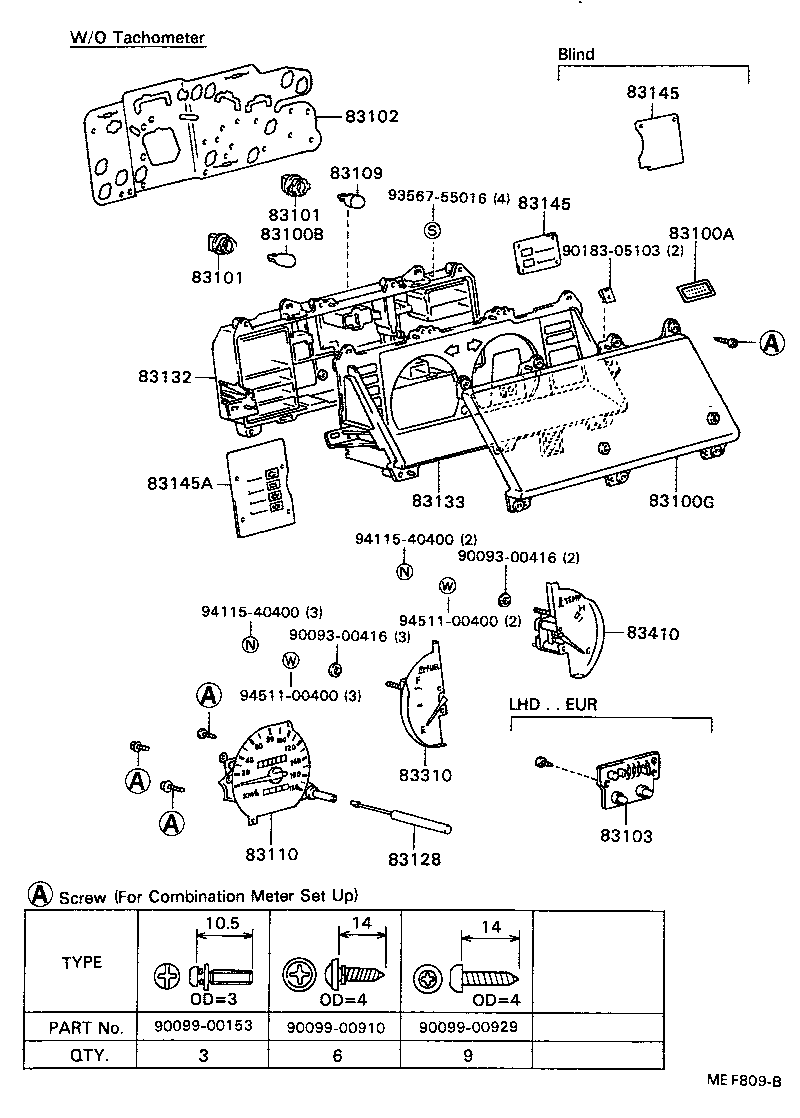

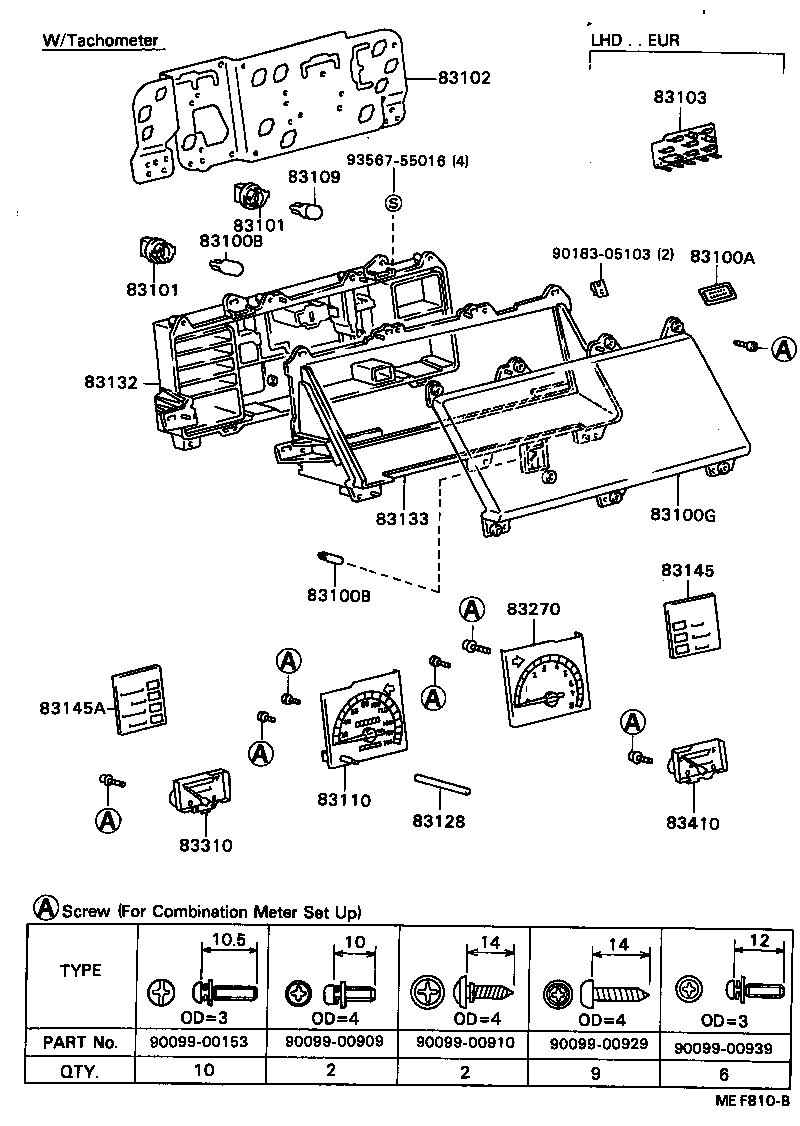

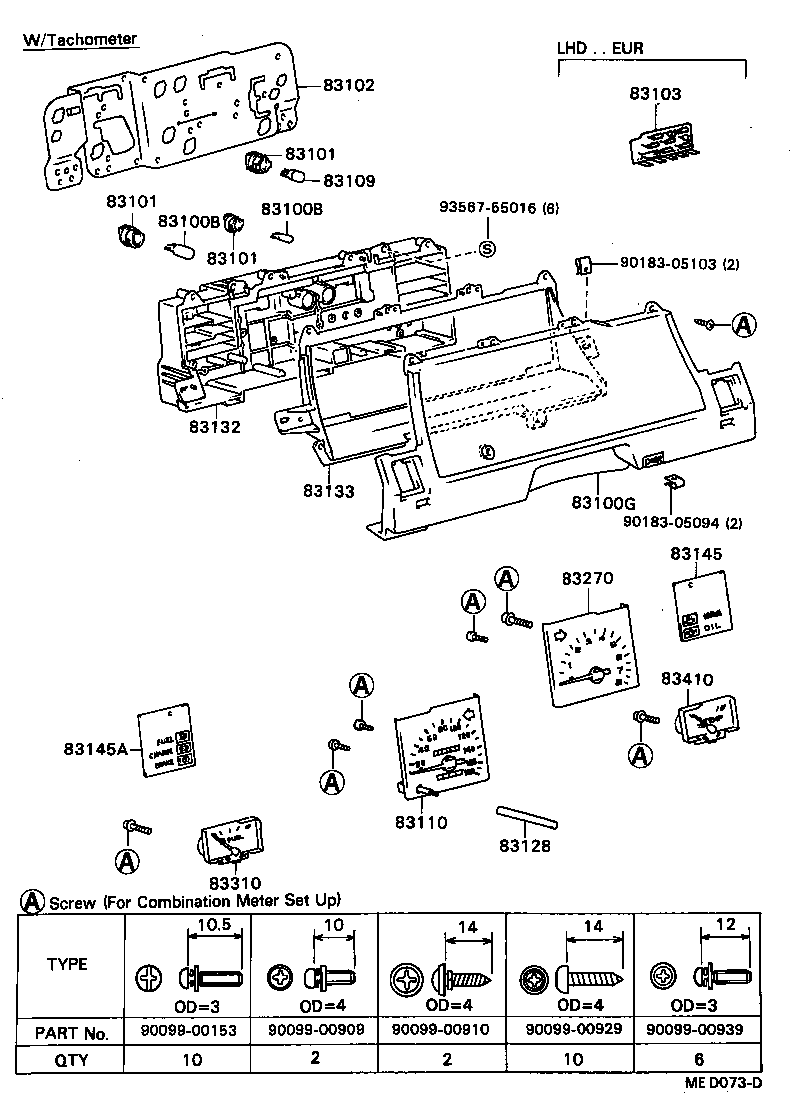

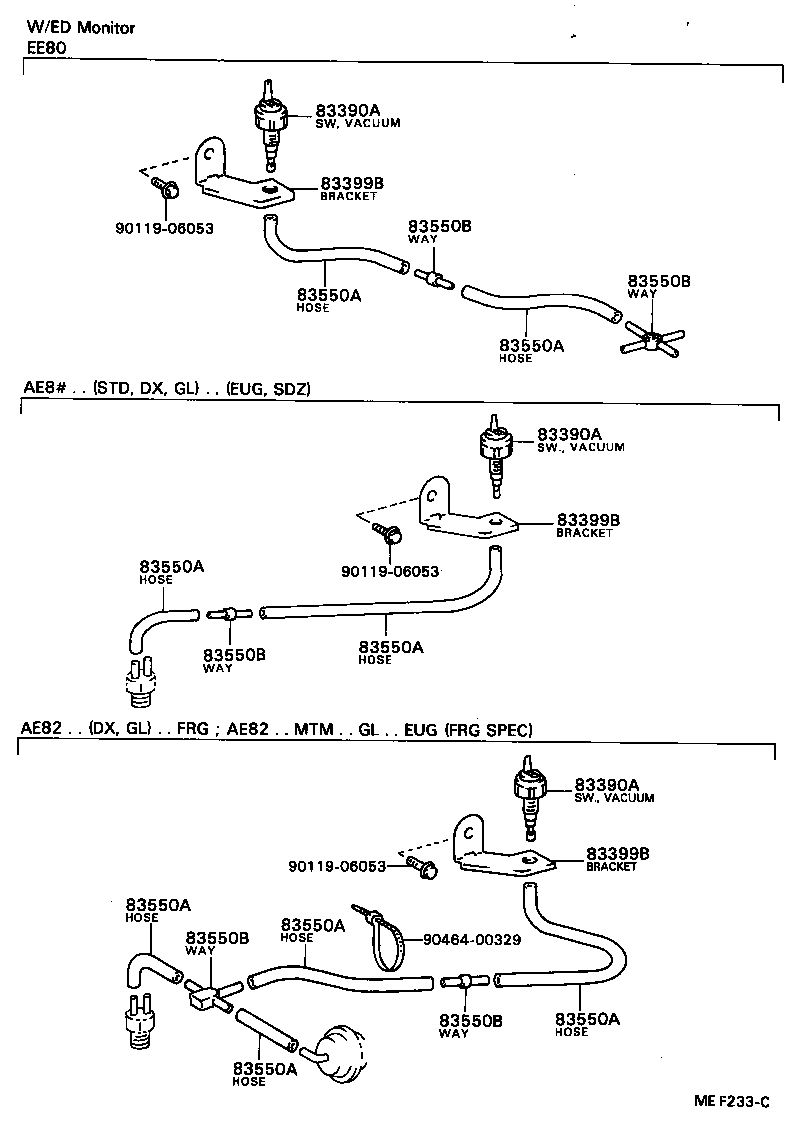

Figure MED072D MED072D 1983-05 → 1985-05 Figure MED072D MED072D 1985-05 → 1986-05 Figure MED072D MED072D 1986-05 → — Figure MEF809B MEF809B 1983-05 → 1987-07 Figure MEF809B MEF809B 1986-05 → — Figure MED073D MED073D 1983-05 → 1985-05 Figure MED073D MED073D 1985-05 → 1986-05 Figure MED073D MED073D 1986-05 → — Figure MEF810B MEF810B 1985-05 → 1987-07 Figure MEF810B MEF810B 1986-05 → — Figure MED186G MED186G 1983-05 → — Figure MEF233C MEF233C 1983-05 → 1987-04 Figure MEG450A MEG450A 1984-10 → 1987-04

Part groups

PNCDescription
83100A Plate, Caution
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83390A Switch Assy, Vacuum(FOR ECONOMETER)
83399B Bracket, Vacuum Switch
83410 Gage Assy, Water Temperature Receiver
83550A Hose, ED Monitor Gage
83550B Union OR Way, ED Monitor Gage
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
