Factory parts data · Europe

Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

3 part groups · 2 illustrations

Illustrations

Figure MED197F

MED197F 1983-05 → —

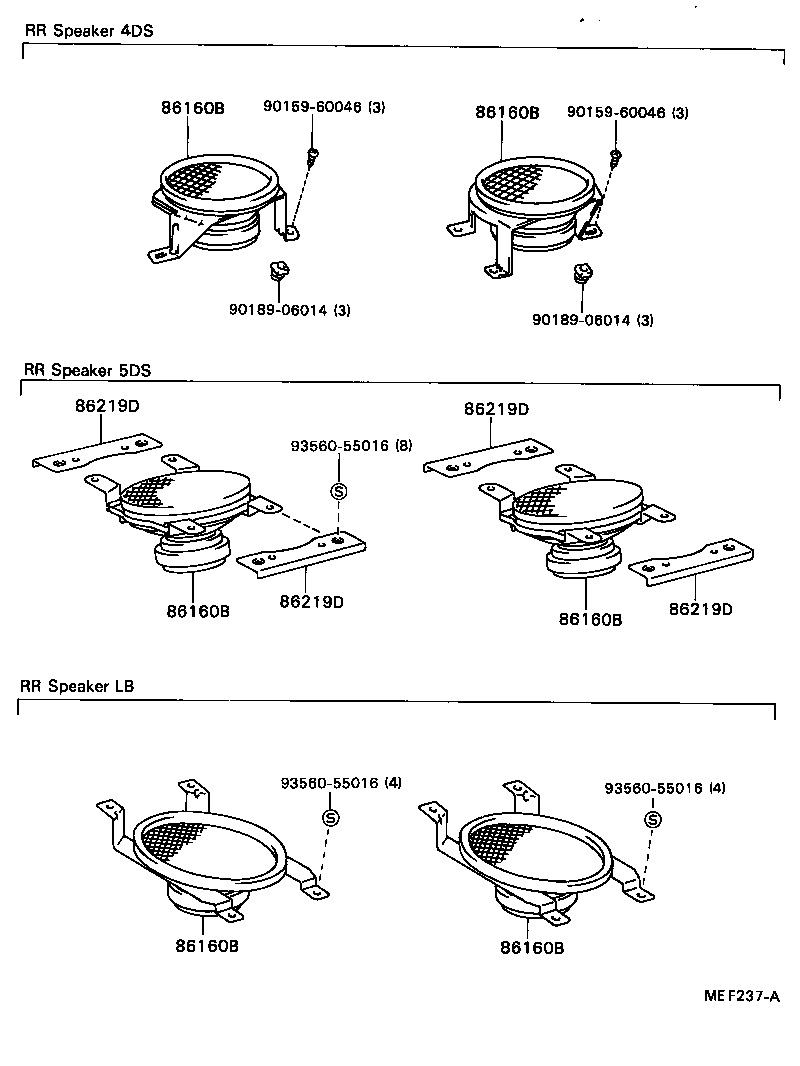

Figure MEF237A

MEF237A 1983-05 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86219D	Bracket, Speaker, Rear NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
