Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 3 illustrations

Illustrations

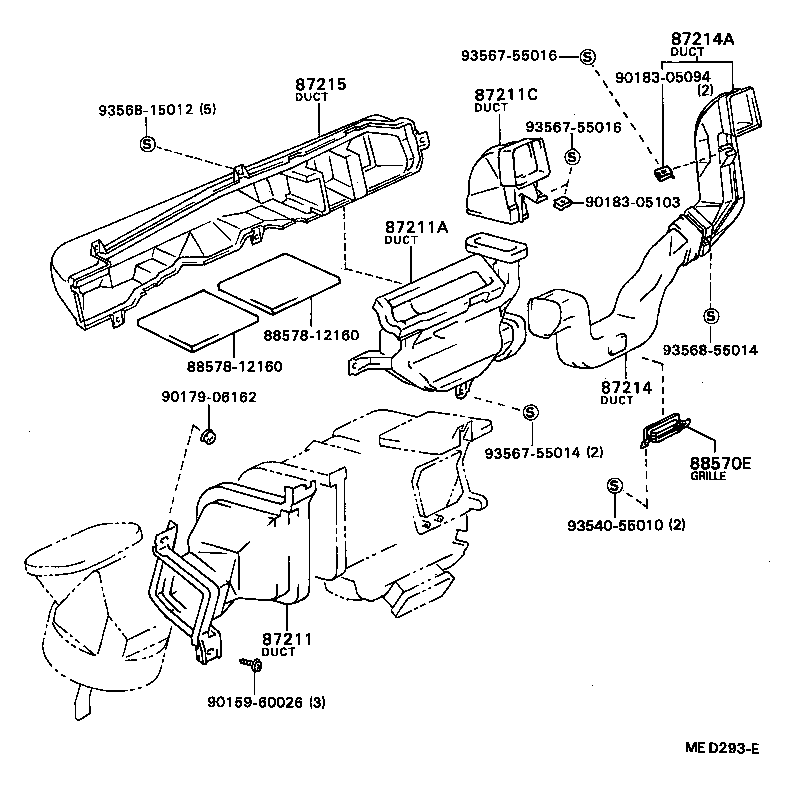

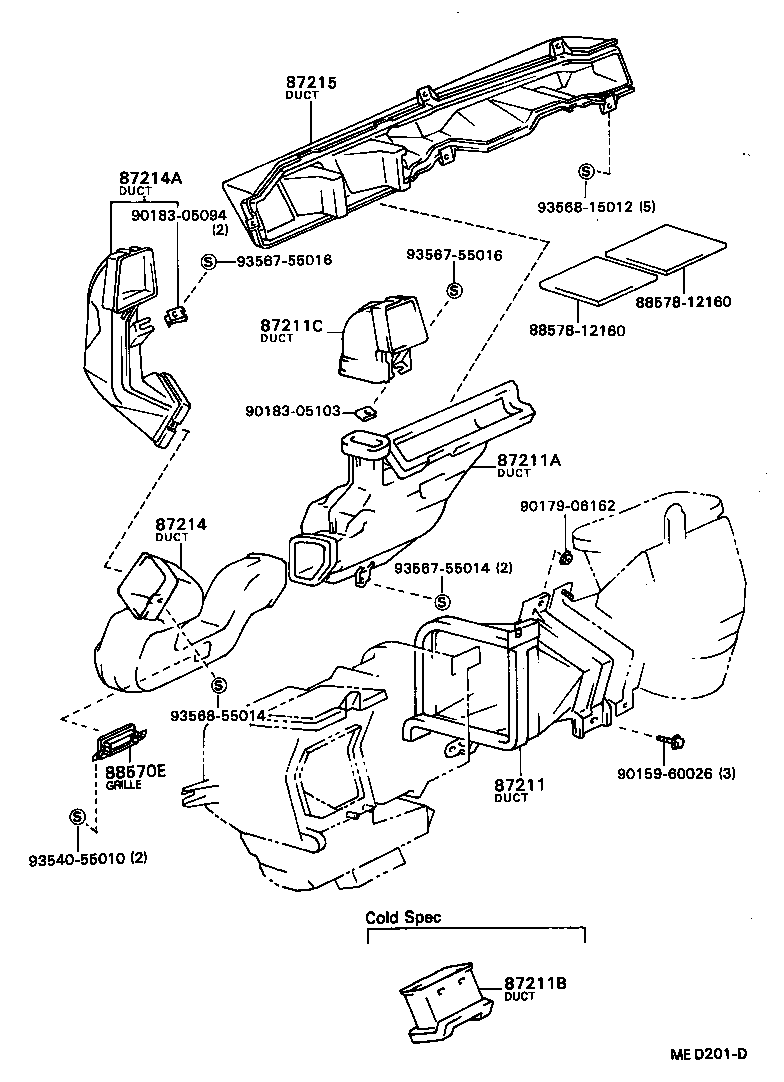

Figure MED200C MED200C 1983-05 → — Figure MED293E MED293E 1983-05 → — Figure MED201D MED201D 1983-05 → 1987-07

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55917 Plate, Air Inlet Door Control
55923 Retainer, Heater Control, Upper
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87284 Resistor Sub-assy, Variable
88570E Grille Assy, Air Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
