Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

8 part groups · 5 illustrations

Illustrations

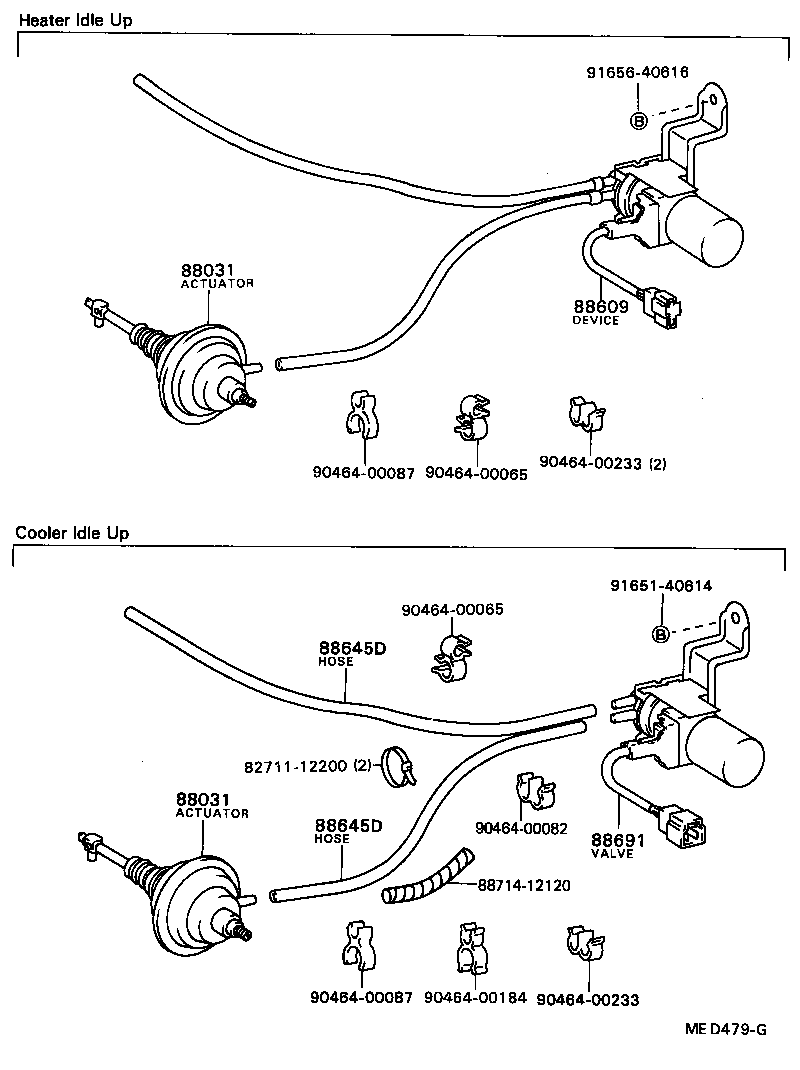

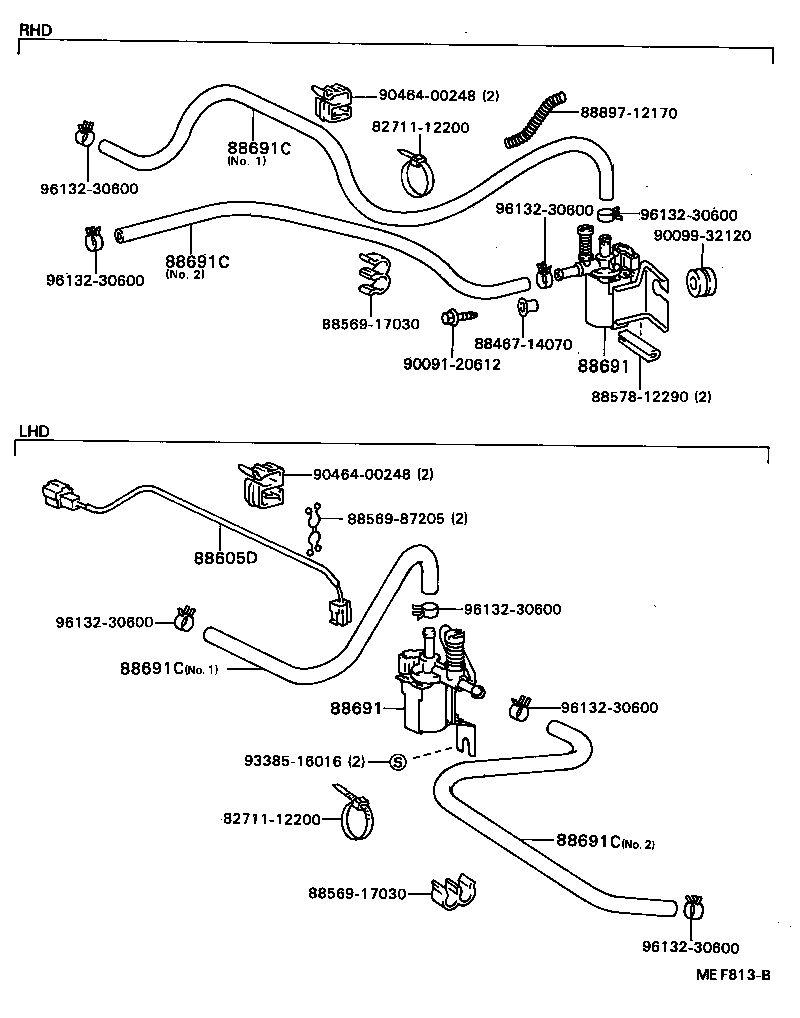

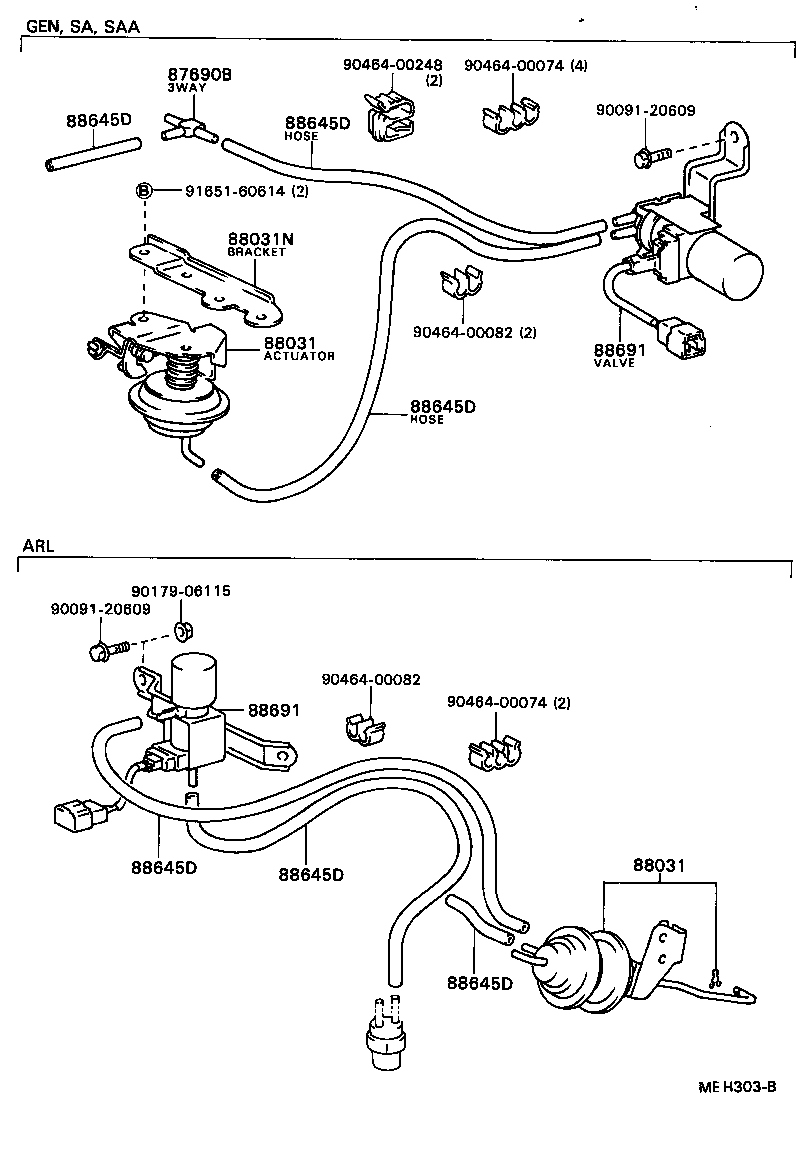

Figure MEF240D MEF240D 1984-10 → — Figure MEH303B MEH303B 1983-05 → — Figure MEF813B MEF813B 1984-10 → 1988-04 Figure MEF813B MEF813B 1986-05 → — Figure MED479G MED479G 1983-05 → 1987-04

Part groups

PNCDescription
87690B Way, 3
88031 Actuator Set, Idle-up
88031N Bracket, Idle-up Actuator
88605D Wire, Air Conditioner
88609 Device Sub-assy, Idle UP
88645D Hose (FOR IDLE UP DEVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
