Toyota Corolla Sed/LB

1983-08 → 1987-07 · chassis AE82,CE80 · catalogue 151410 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

21 part groups · 2 illustrations

Illustrations

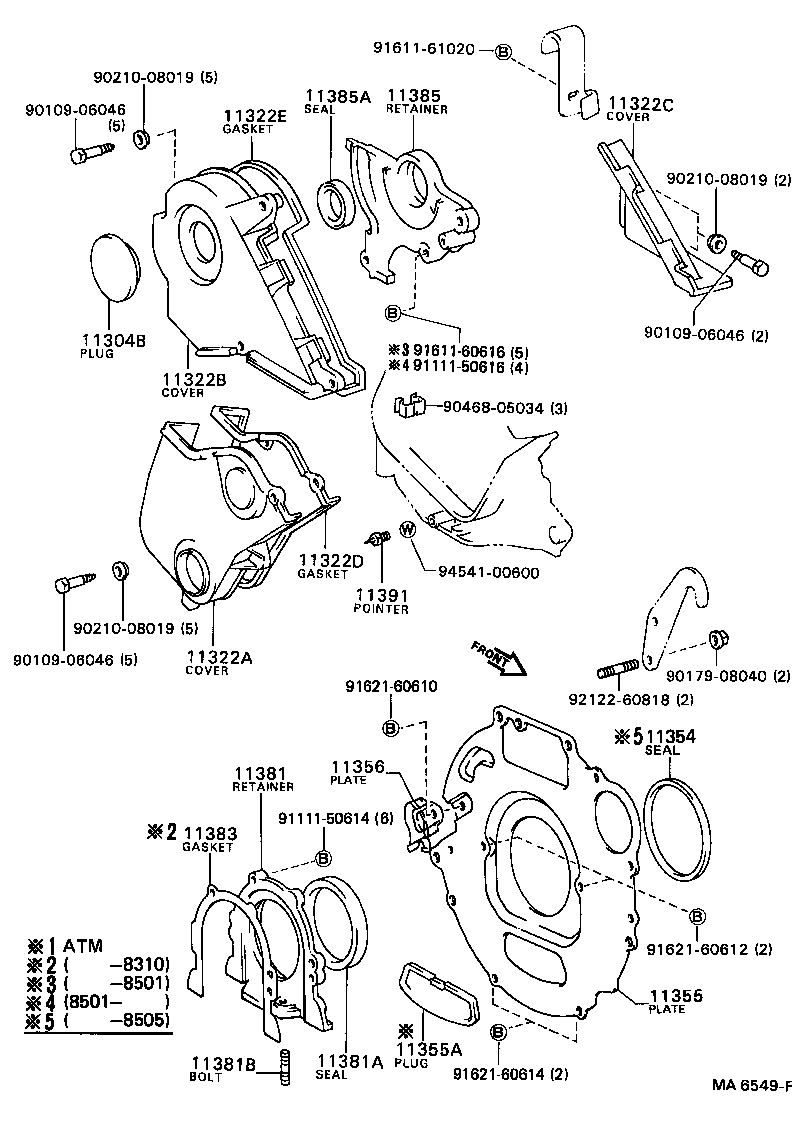

Figure MA6719H MA6719H 1983-08 → — Figure MA6549F MA6549F 1983-08 → 1985-08

Part groups

PNCDescription
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11322D Gasket, Timing Belt Cover, NO.1
11322E Gasket, Timing Belt Cover, NO.2
11322H Gasket, Timing Belt Cover, NO.3
11322J Retainer(FOR TIMING BELT COVER)
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11356 Plate, Rear End, NO.2
11361 Cover, Flywheel Housing Under
11367 Gasket, Flywheel Housing Under
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
11383 Gasket, Engine Rear Oil Seal Retainer
11385 Retainer, Camshaft Oil Seal
11385A Seal, Oil(FOR CAMSHAFT)
11391 Pointer, Timing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
