Toyota Corolla Sed/LB

1983-08 → 1987-07 · chassis AE82,CE80 · catalogue 151410 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 8 illustrations

Illustrations

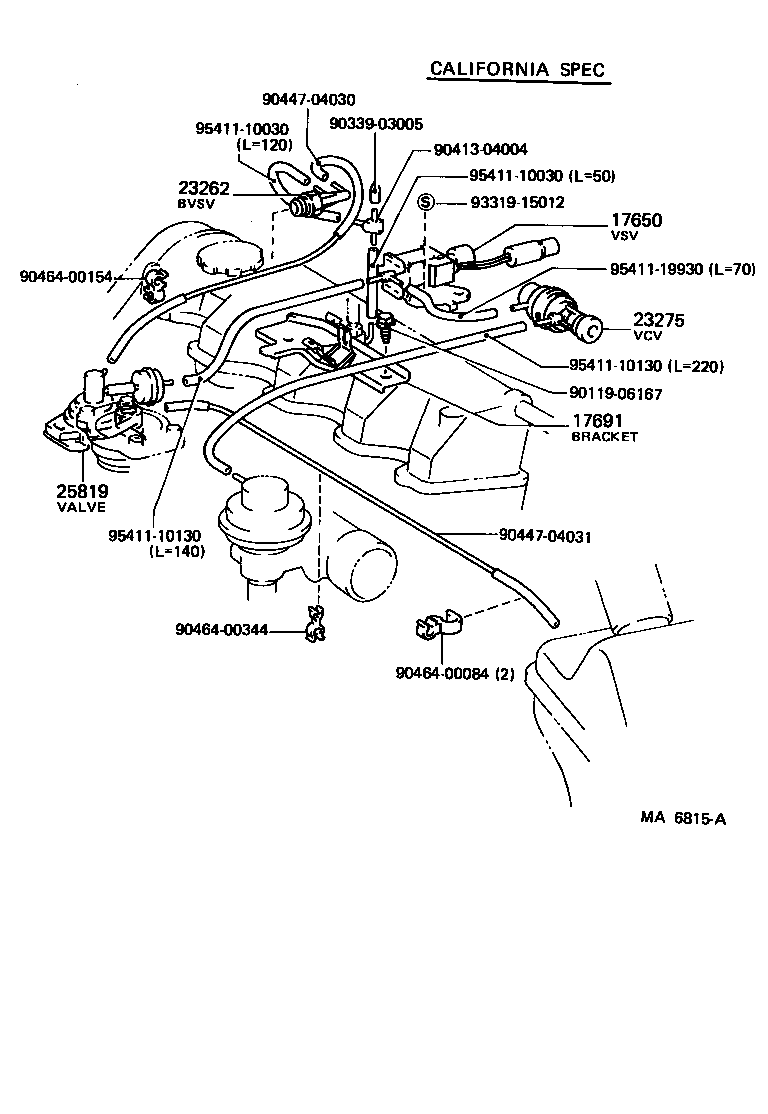

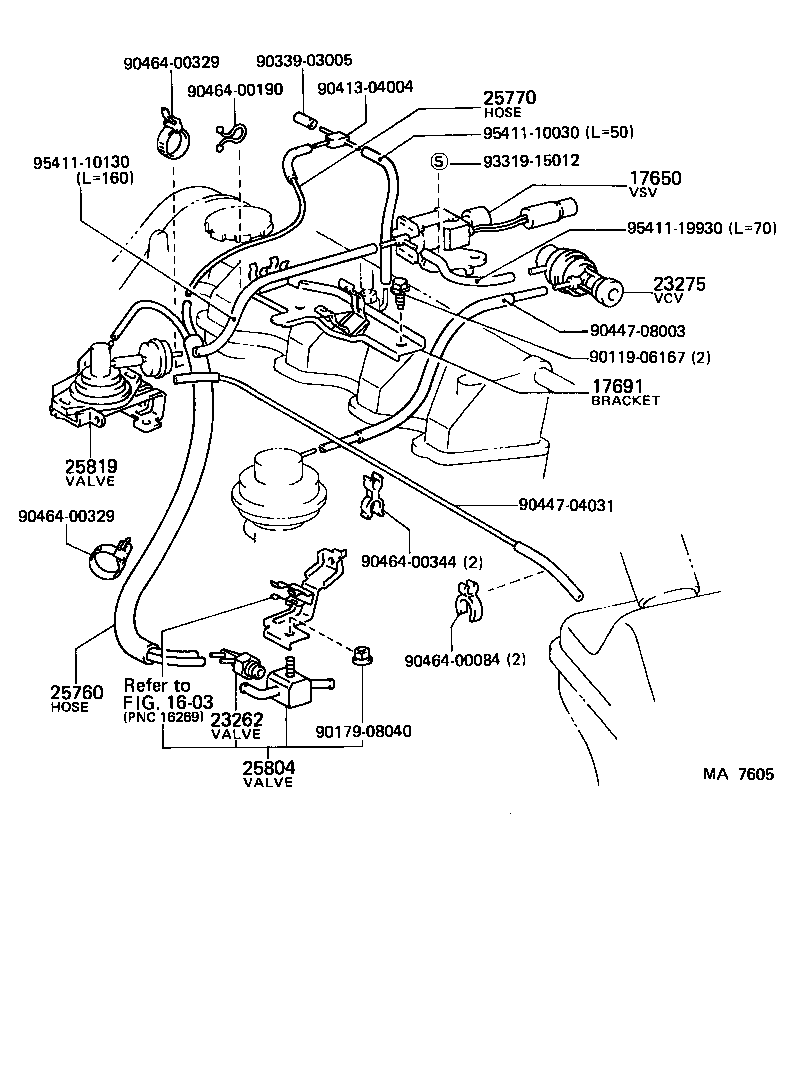

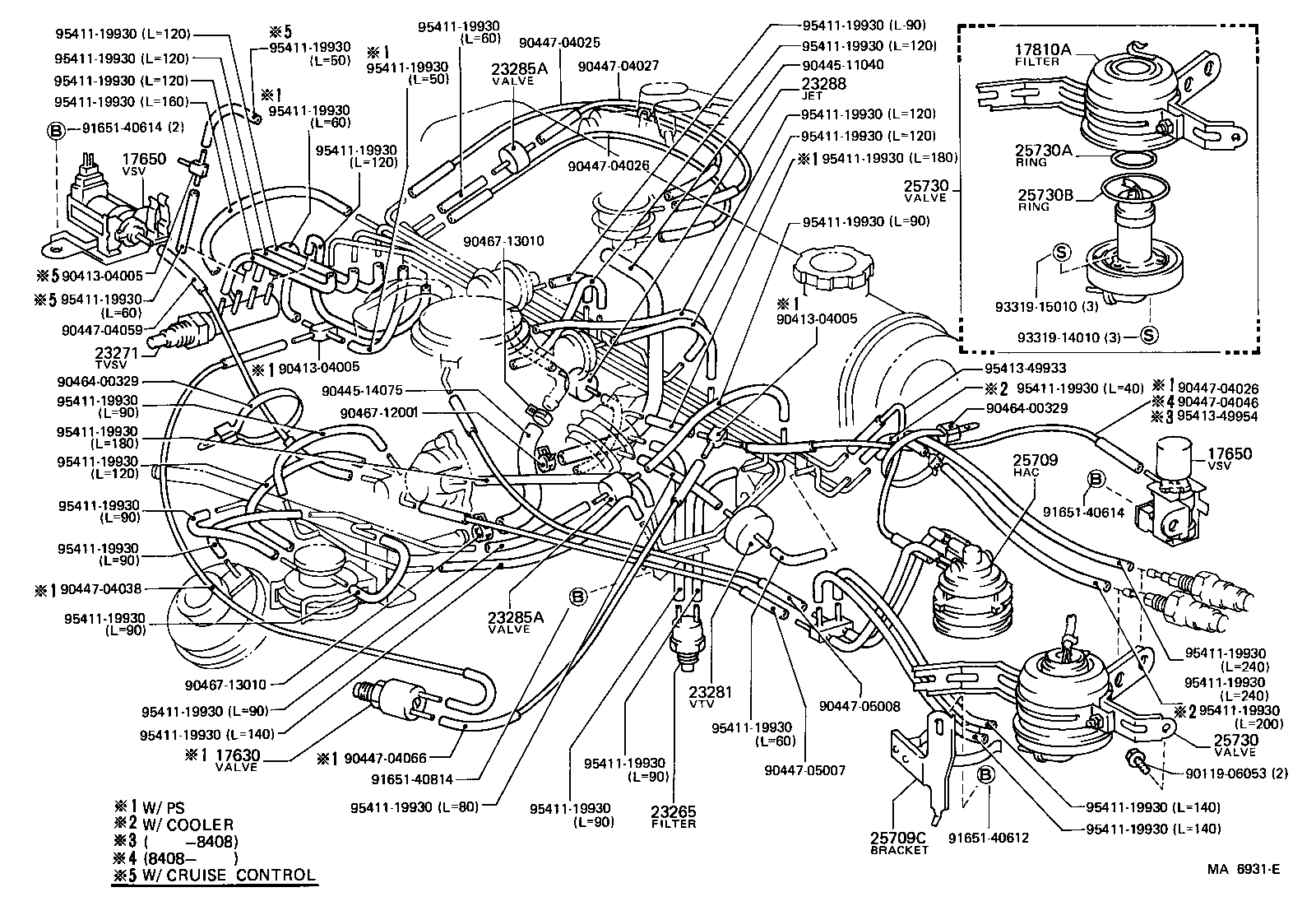

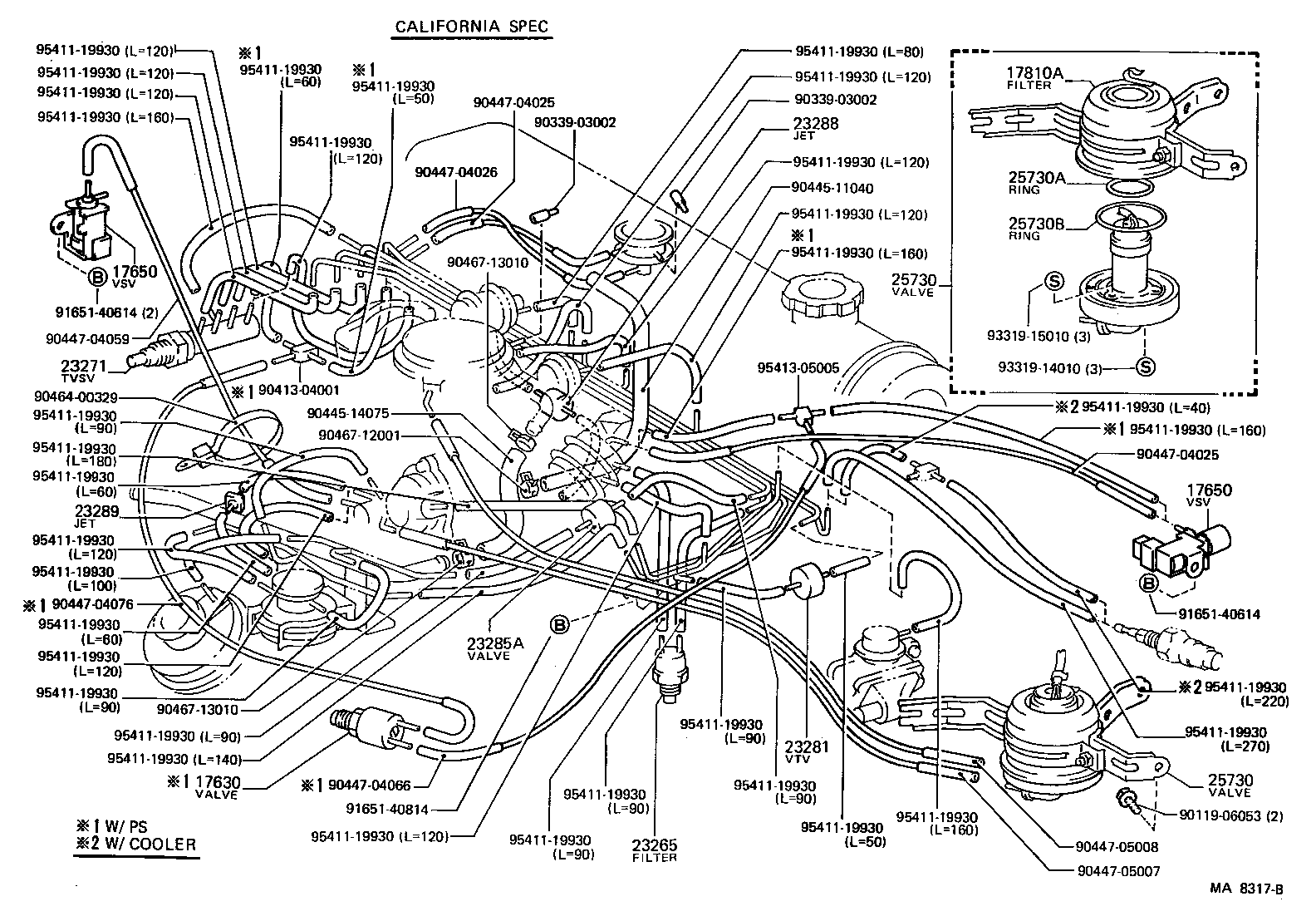

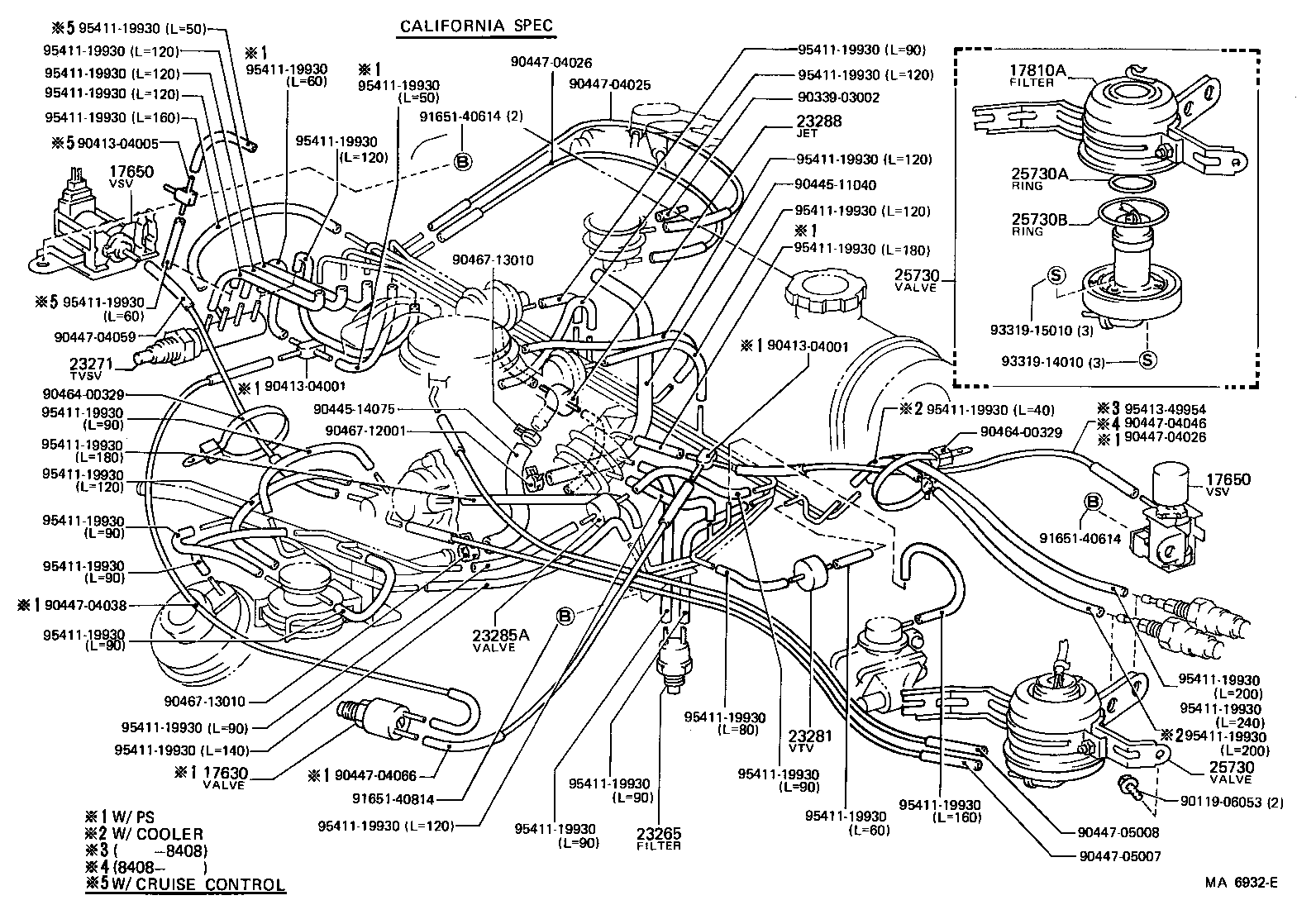

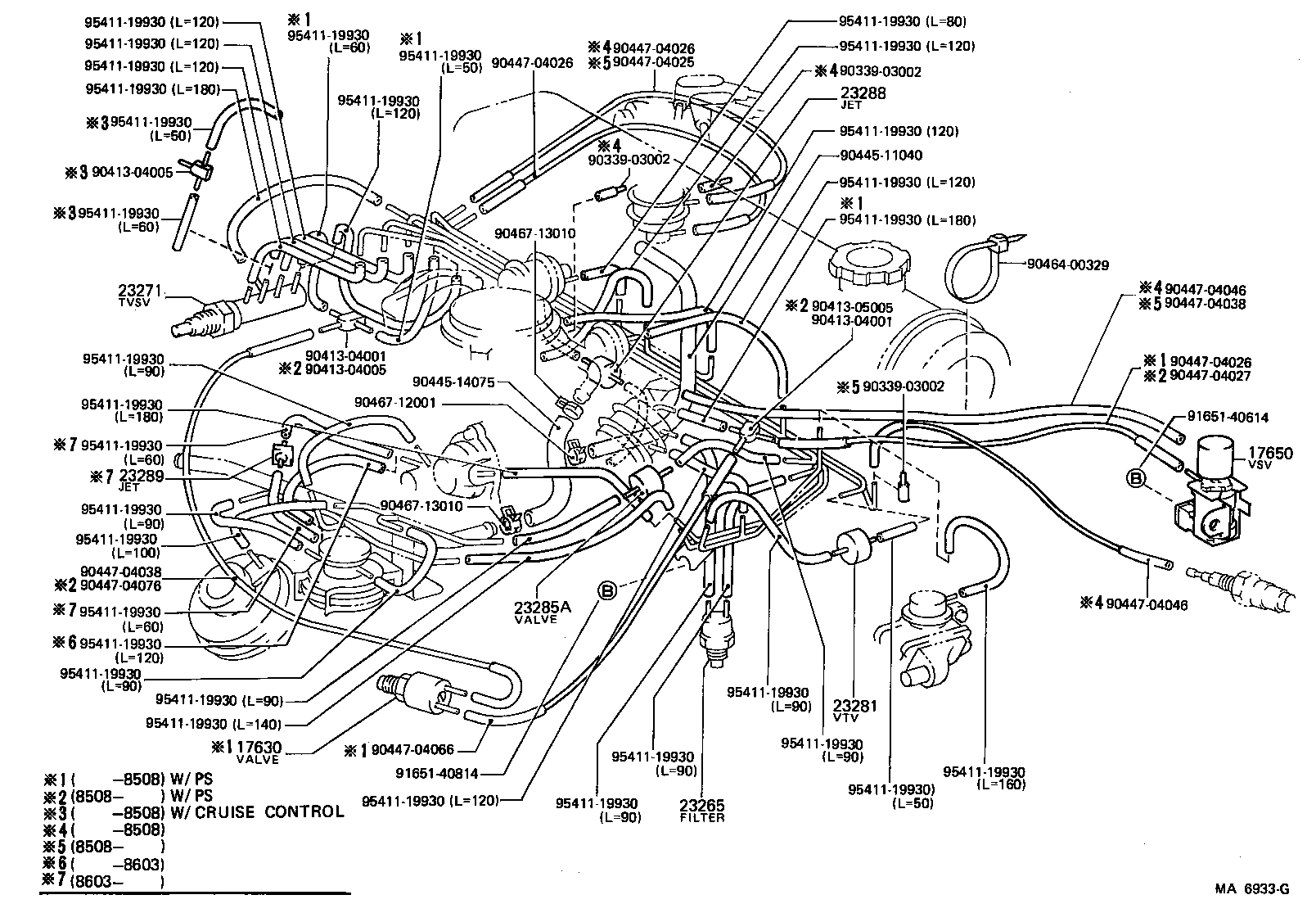

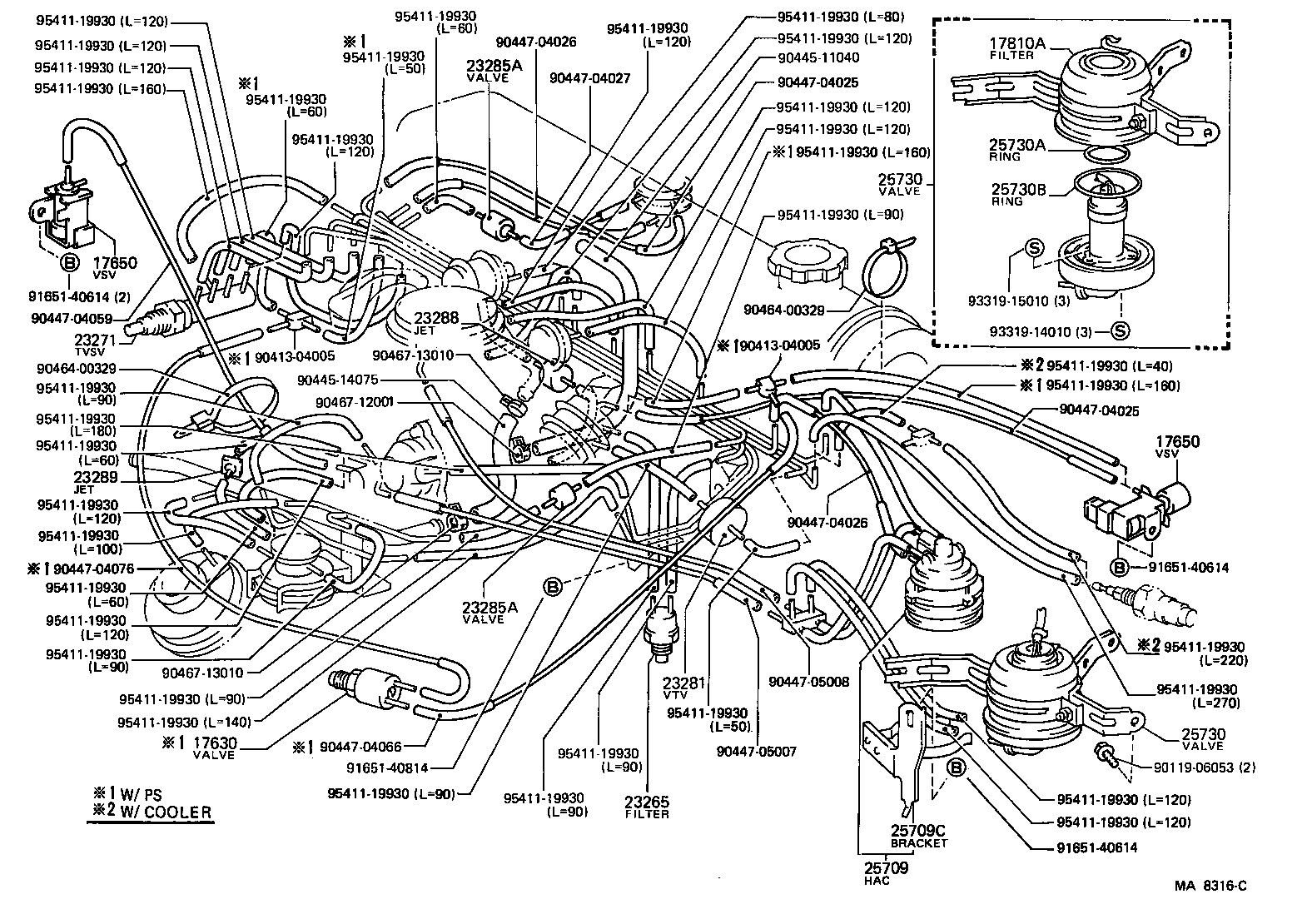

Figure MA9504A MA9504A 1983-08 → — Figure MA6931E MA6931E 1983-08 → 1985-08 Figure MA8316C MA8316C 1985-08 → — Figure MA6932E MA6932E 1983-08 → 1985-08 Figure MA8317B MA8317B 1985-08 → — Figure MA6933G MA6933G 1983-08 → — Figure MA6815A MA6815A 1983-08 → 1984-08 Figure MA7605 MA7605 1984-08 → 1985-08

Part groups

PNCDescription
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25709C Bracket, High Altitude Compensator
25730 Valve Assy, Electric Bleed Air Control
25730A Ring, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25730B Ring, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25760 Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25804 Valve Set, Vacuum Control
25819 Valve Assy, Vacuum Regulating
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
