Toyota Corolla Sed/LB

1983-08 → 1987-07 · chassis AE82,CE80 · catalogue 151410 · Europe

Discontinued model Data version 1988-02

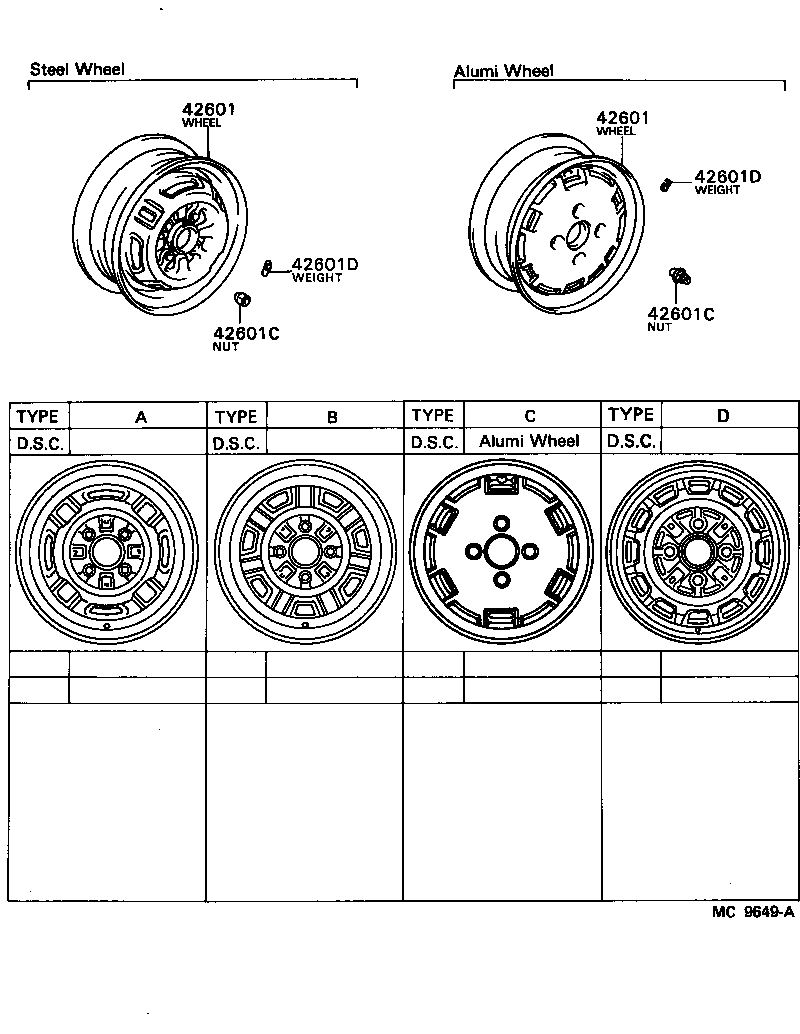

Disc Wheel & Wheel Cap

5 part groups · 2 illustrations

PNC	Description
42601	Wheel, Disc
42601C	Nut, Hub (FOR AXLE)
42601D	Weight, Balance (FOR DISC WHEEL)
42603	Ornament Sub-assy, Wheel Hub
42611G	Valve (FOR TUBELESS TIRE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
