Toyota Corolla Sed/LB

1983-08 → 1987-07 · chassis AE82,CE80 · catalogue 151410 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

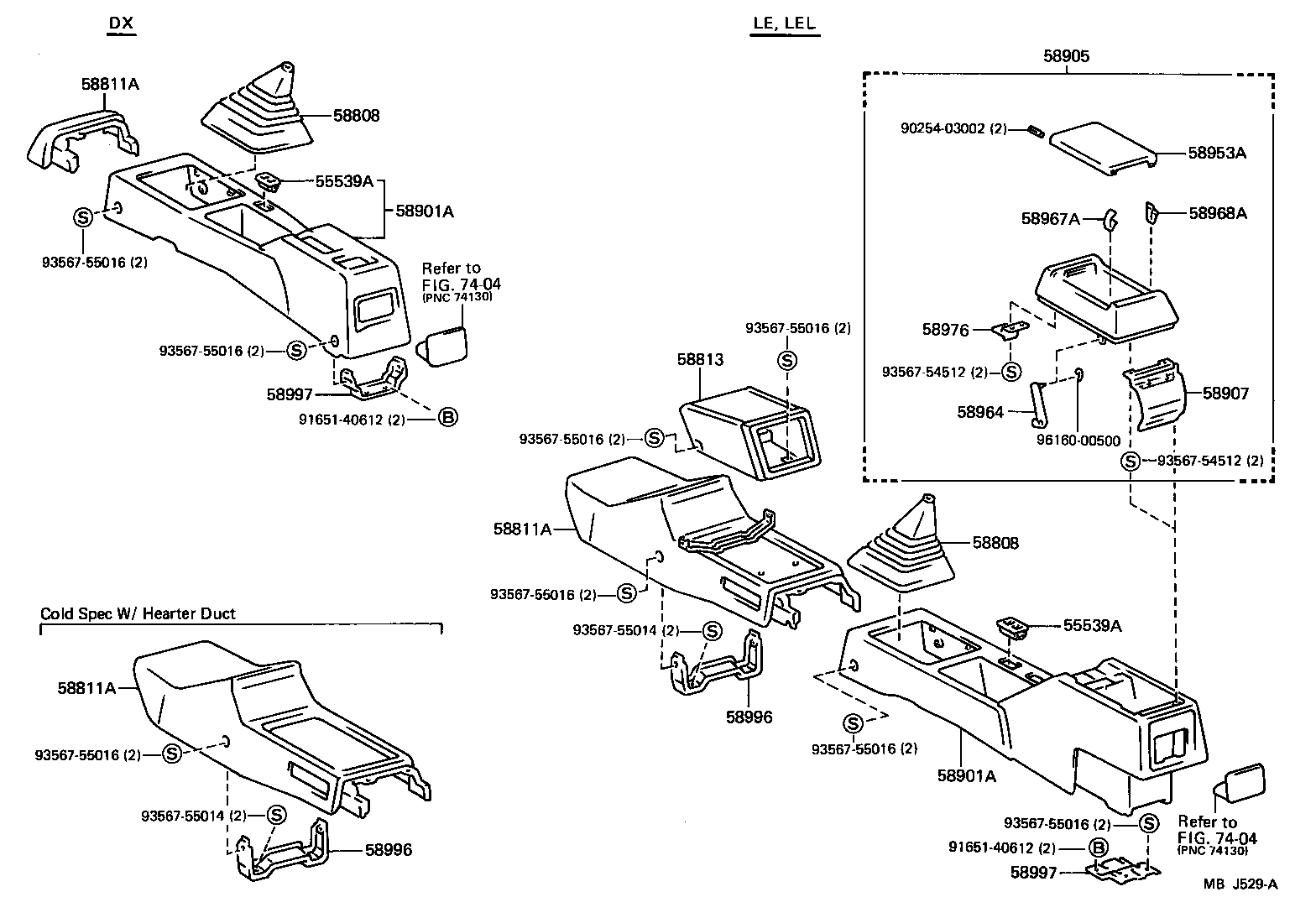

Figure MBF409C MBF409C 1983-08 → 1985-08 Figure MBJ529A MBJ529A 1985-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58813 Box, Console, Upper
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58912 Box, Rear Console, NO.2
58953A Door, Console Compartment, Upper
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58967A Spring, Console Door Stopper
58968A Bracket, Console Door Stopper
58976 Striker, Console Compartment Door Lock
58996 Bracket, Console Box Mounting, NO.1
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
