Toyota Corolla Sed/LB
1983-08 → 1987-07 · chassis AE82,CE80 · catalogue 151410 · Europe
Discontinued model
Data version 1988-02

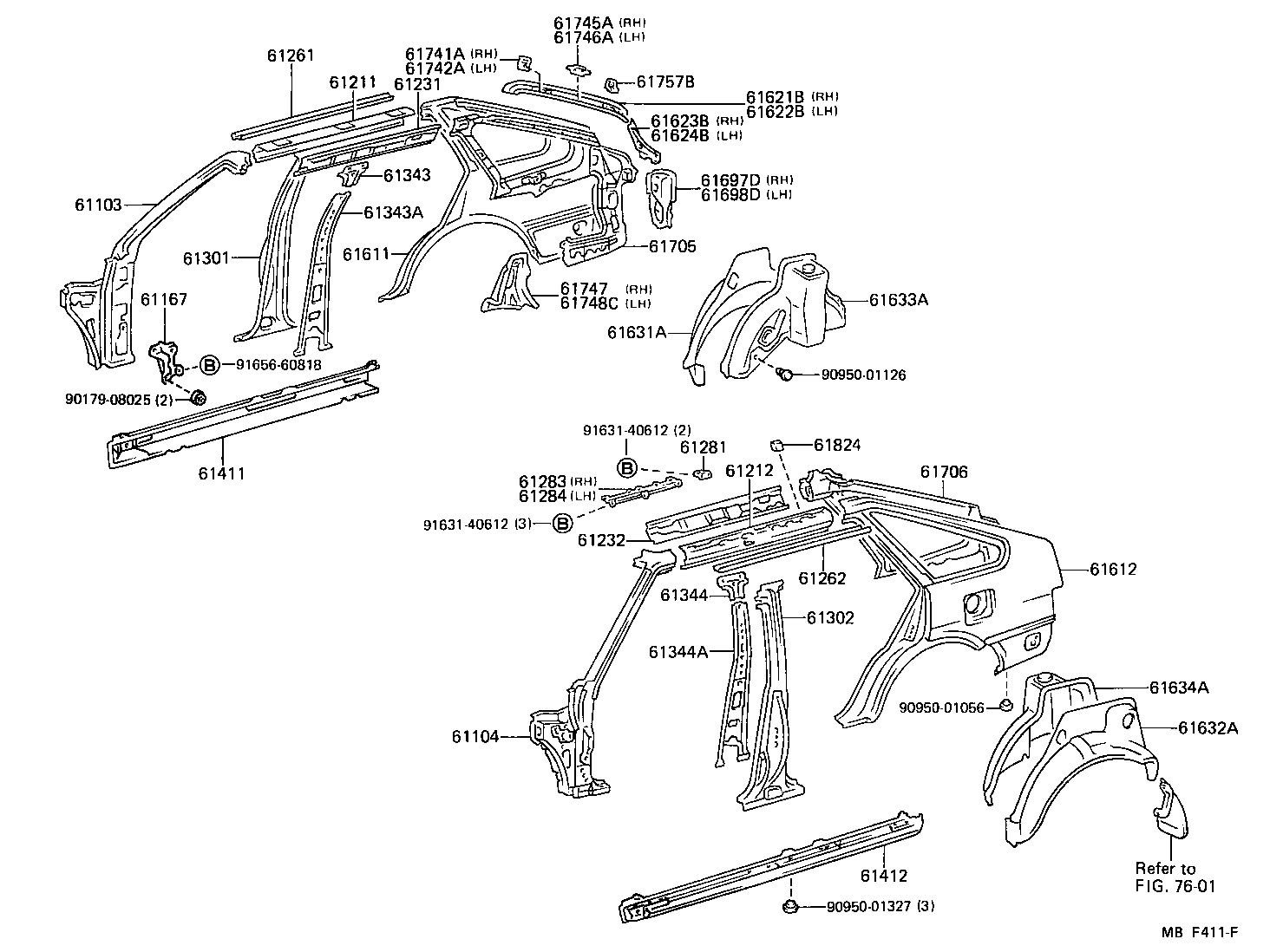

Side Member
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61103 | Pillar Sub-assy, Front Body, RH |
| 61104 | Pillar Sub-assy, Front Body, LH |
| 61167 | Bracket, Instrument Panel TO Cowl Side, RH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61261 | Channel, Roof Drip, RH |
| 61262 | Channel, Roof Drip, LH |
| 61281 | Bracket, Sliding Roof Housing Mounting, NO.1 |
| 61283 | Bracket, Sliding Roof Housing Mounting, NO.3 RH |
| 61284 | Bracket, Sliding Roof Housing Mounting, NO.3 LH |
| 61301 | Pillar Sub-assy, Center Body, RH |
| 61302 | Pillar Sub-assy, Center Body, LH |
| 61343 | Pillar, Center Body, Inner Upper RH |
| 61343A | Pillar, Center Body, Inner RH |
| 61344 | Pillar, Center Body, Inner Upper LH |
| 61344A | Pillar, Center Body, Inner LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61621B | Trough, Back Door Opening, Front RH |
| 61622B | Trough, Back Door Opening, Front LH |
| 61623B | Trough, Back Door Opening, Rear RH |
| 61624B | Trough, Back Door Opening, Rear LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61697D | Housing, Quarter Panel End, RH |
| 61698D | Housing, Quarter Panel End, LH |
| 61705 | Panel Sub-assy, Roof Side, Inner RH |
| 61706 | Panel Sub-assy, Roof Side, Inner LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61741A | Reinforcement, Back Door Opening, Upper RH |
| 61742A | Reinforcement, Back Door Opening, Upper LH |
| 61745A | Reinforcement, Back Door Opening, Lower RH |
| 61746A | Reinforcement, Back Door Opening, Lower LH |
| 61747 | Brace, Roof Side Inner TO Wheel House, RH |
| 61748C | Brace, Roof Side Inner TO Wheel House, LH |
| 61757B | Retainer, Deck Side Trim, Lower |
| 61824 | Plate, Noise Control, NO.1 |
| 64211 | Strainer, Package Tray TO Floor, RH |
| 64212 | Strainer, Package Tray TO Floor, LH |
| 64312 | Bracket, Package Tray, RH |
| 64313 | Bracket, Package Tray, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
